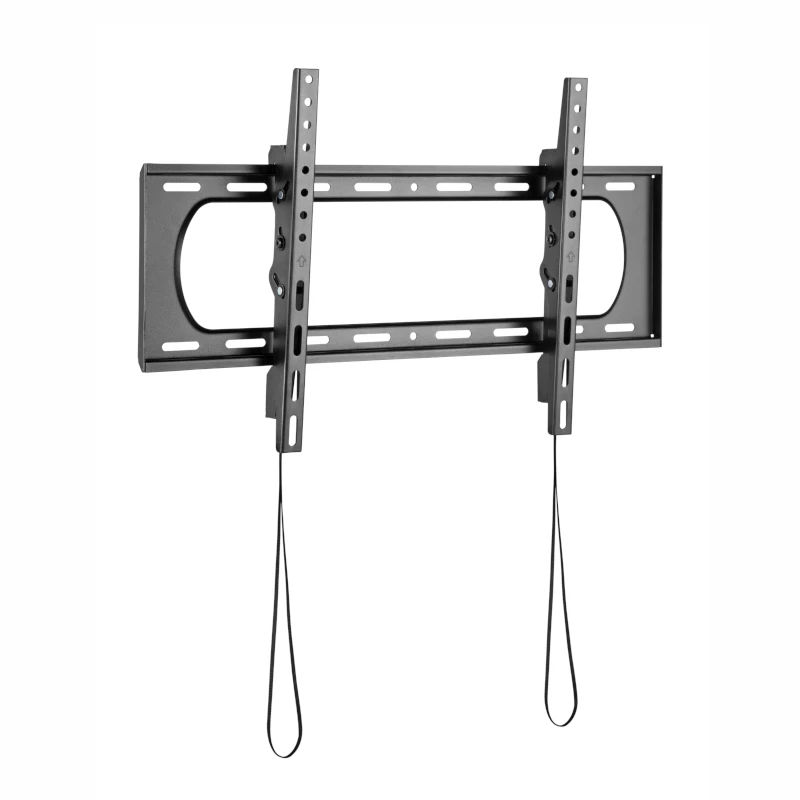

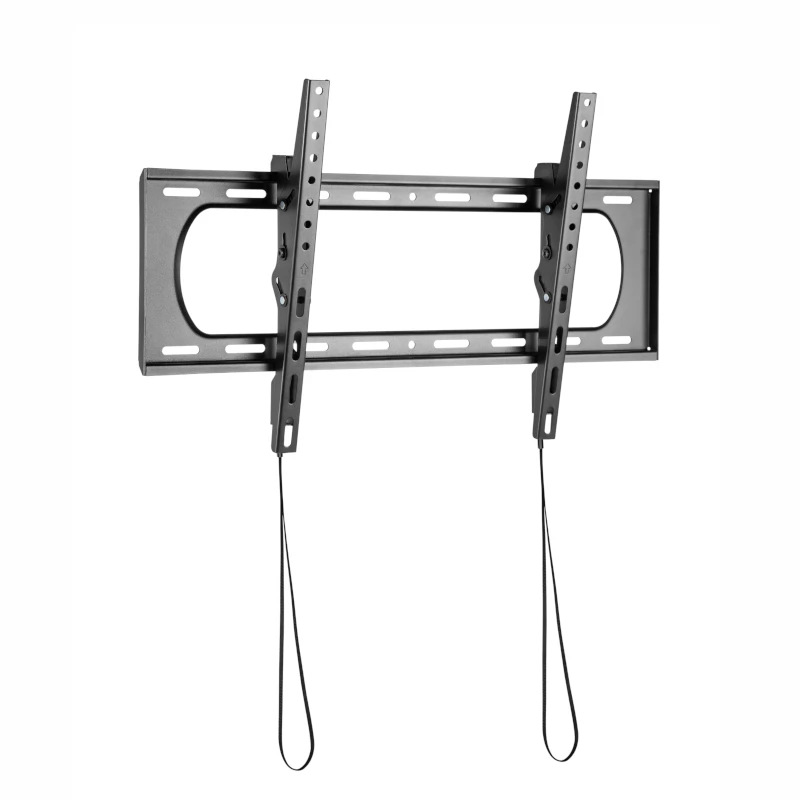

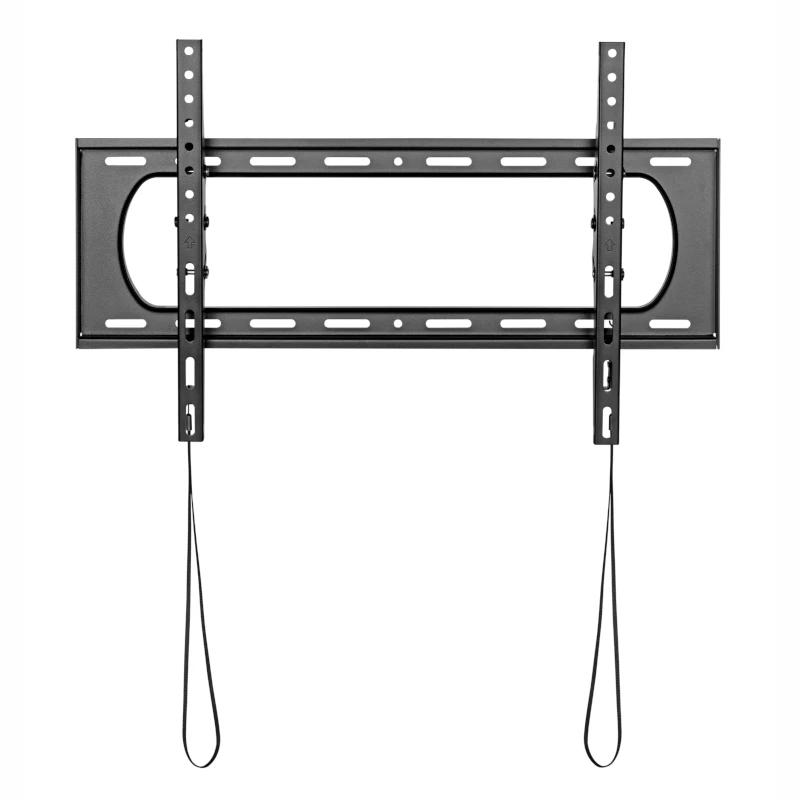

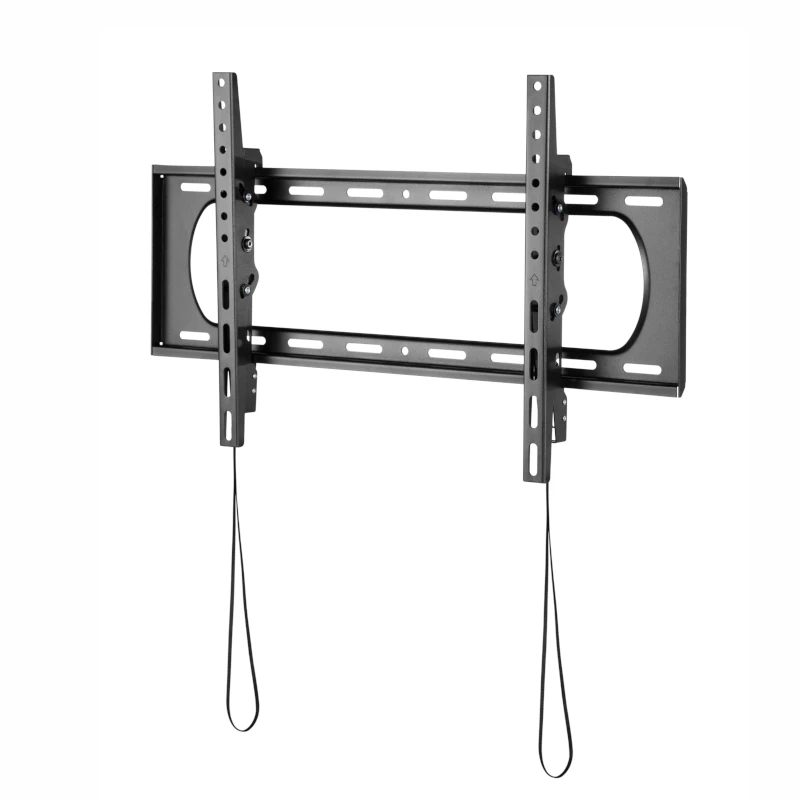

WINX MOUNT Max Tilt TV Bracket for 23-55 inch TVs, VESA 400x400, 35 kg, +5° to -15° Tilt, Steel, Black

With a robust 35 kg load capacity and a versatile VESA range from 75x75 to 400x400 mm, the WINX MOUNT Max Tilt TV Bracket securely holds most 23" to 55" flat-panel TVs. Its steel construction and low-profile design keep your screen just 40 mm from the wall, while the tilt mechanism lets you adjust the viewing angle from +5° to -15° to reduce glare and improve comfort. Whether mounted in a living room, bedroom, or office, this bracket delivers a stable, space-saving solution.

Overview

The WINX MOUNT Max Tilt TV Bracket is engineered for reliable, long-term performance. It supports a single display weighing up to 35 kg (77 lbs), making it suitable for a wide range of LCD, LED, and OLED TVs. The bracket is compatible with VESA mounting patterns from 75x75 mm to 400x400 mm, covering the majority of mid-size and large televisions on the market. Installation is straightforward on solid walls or double-stud configurations, and all necessary mounting hardware is included, along with a spirit level to ensure perfect alignment.

What stands out

• Supports TVs from 23" to 55" with a maximum weight of 35 kg.
• Wide VESA compatibility: 75x75, 100x100, 200x200, 300x300, 400x400 mm and more.
• Tilt adjustment from +5° to -15° for optimal viewing angles and glare reduction.
• Ultra-slim profile: only 40 mm distance from wall to TV back.
• Durable steel construction with a sleek black finish.
• Includes spirit level and all mounting hardware for easy installation.
• Safety screws prevent accidental dislodging.

Technical details

• Mounting type: Tilting wall mount
• Number of displays supported: 1
• Minimum screen size: 23"
• Maximum screen size: 55"
• Maximum weight capacity: 35 kg
• Minimum VESA mount: 75 x 75 mm
• Maximum VESA mount: 400 x 400 mm
• Tilt angle range: +5° to -15°
• Distance to the wall: 40 mm
• Material: Steel
• Colour: Black
• Mounting kit: Included
• Spirit level: Included
• Safety screws: Yes

Our verdict

The WINX MOUNT Max Tilt TV Bracket combines strength, versatility, and a slim profile, making it an excellent choice for securely mounting your TV while enhancing your viewing experience.
