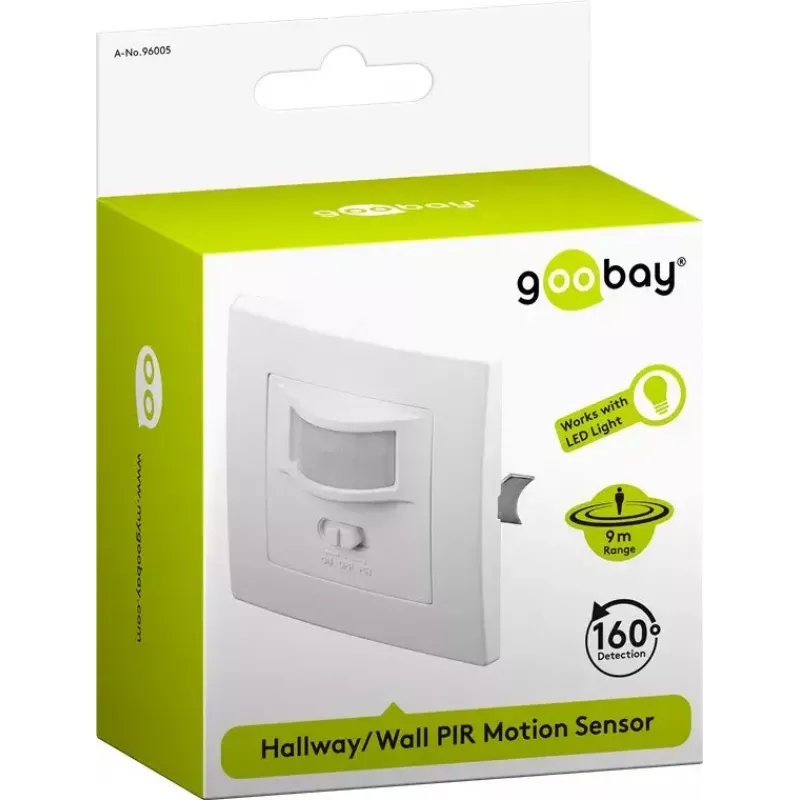

Wall Mount Sensor Goobay White 96005

The Wall Mount Sensor Goobay White 96005 is a compact PIR motion detector designed for indoor use. It provides a 160-degree detection angle with a 9-metre range and is compatible with LED lighting. The unit is powered from AC mains (220–240 V, 50 Hz) and has a small housing (79 mm × 25 mm) suitable for wall mounting in corridors, stairwells, rooms and other indoor spaces.

Advantages

The sensor offers wide-angle detection and a practical 9 m reach, enabling automatic illumination when people or animals enter the detection zone. Its passive infrared technology ensures reliable presence detection, and the compact white housing allows discreet installation without occupying much space. The device is designed for direct connection to standard AC mains and is suitable for LED loads.

Suitable for

• Corridors and hallways
• Staircases and landings
• Utility rooms and storage areas
• Entrances and interior doorways

Key specifications

• Detection type: passive infrared (PIR)
• Detection angle: 160°
• Detection range: up to 9 m
• Power supply: 220–240 V AC, 50 Hz
• Compatibility: suitable for LED lighting
• Dimensions: 79 mm × 25 mm
• Brand: WENTRONIC (Goobay), MPN: 96005, EAN: 4040849960055

How to use

Mount the sensor on a wall at the recommended height and angle to cover the desired area. Connect the unit to the AC mains following local electrical regulations and the device wiring instructions. After powering, adjust its position so the 160° detection field and 9 m range cover the intended path; no additional programming is required for basic motion-activated operation with compatible LED fixtures.

Recommendations

Install the sensor where movement crosses the detection field for best results, avoid pointing it directly at heat sources or reflective surfaces, and follow local electrical safety rules during installation. For outdoor or damp locations choose a product specifically rated for external use.
