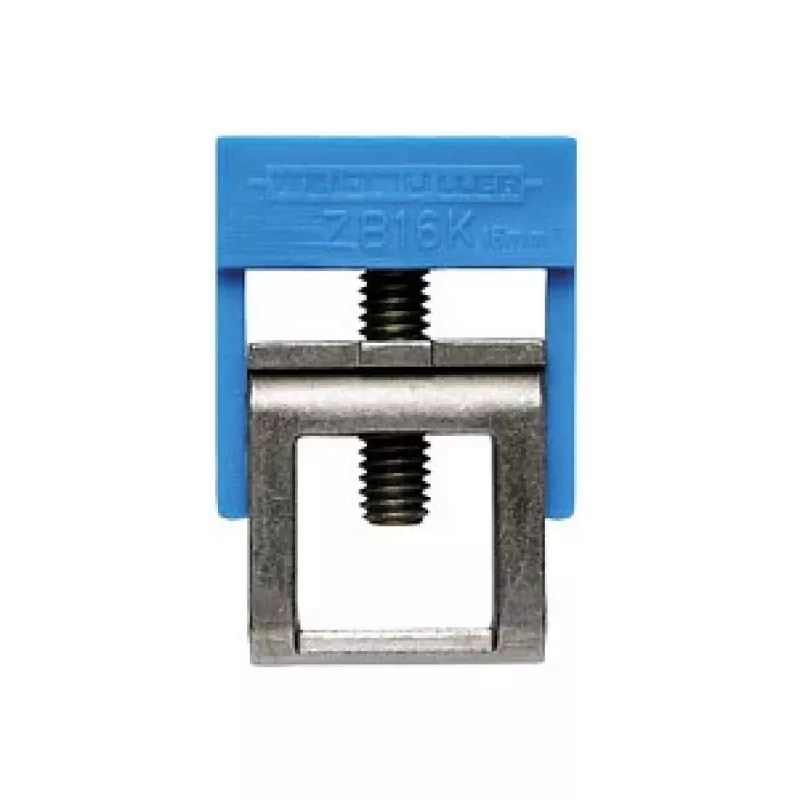

Weidmüller ZB 16K BL Cross-Connector, 2-Pole, 16 mm², Blue Insulation, Silver Contacts, 50 Pieces

The Weidmüller ZB 16K BL is a high-quality cross-connector from the ZB Series, designed for reliable electrical connections in industrial applications. With a rated cross-section of 16 mm² and a rated voltage of 1000 V (IEC), it ensures safe and efficient power distribution. The connector features a blue polyamide (PA 66) insulation housing and silver steel contacts, providing durability and excellent conductivity. It is suitable for use with Weidmüller W-series and Z-series terminal blocks, such as WDU 16 and ZDU 16.

Advantages

This cross-connector offers easy plug-in mounting, saving installation time. Its robust construction ensures long-term reliability even in demanding environments. The UL 94 V-2 flammability rating guarantees fire safety, while the wide operating temperature range of -50 to +100 °C makes it suitable for various industrial settings.

Suitable for

• Industrial control panels
• Power distribution systems
• Automation equipment
• Building infrastructure

Key specifications

• Product Type: Cross-connector
• Series: ZB Series
• Number of Poles: 2
• Rated Cross-section: 16 mm²
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 76 A
• Insulation Material: Polyamide (PA 66)
• Contact Material: Steel
• Insulation Color: Blue
• Contact Color: Silver
• Mounting Type: Plug-in
• Operating Temperature Range: -50 to +100 °C
• Flammability Rating: UL 94 V-2
• RoHS Compliant: Yes
• Packaging Unit: 50 pieces

Recommendations

For optimal performance, use with compatible Weidmüller terminal blocks. Ensure proper installation according to manufacturer guidelines.
