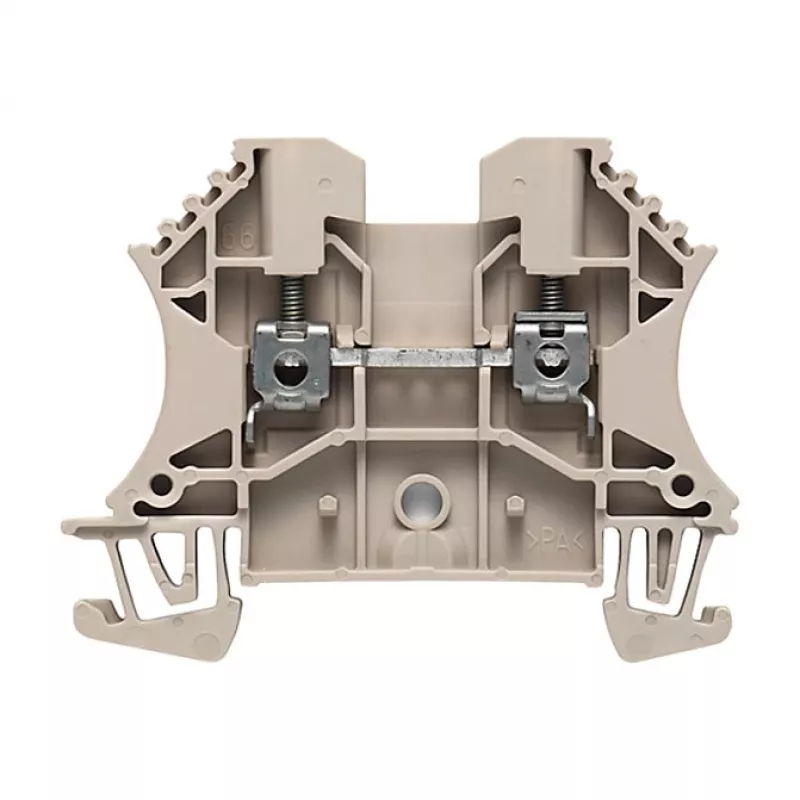

Weidmüller Feed-Through Terminal Block, W-Series, 2.5 mm², 24 A, 800 V, Beige, Screw Connection, DIN Rail Mount, 100 Pieces

The Weidmüller W-Series feed-through terminal block (model 1020000000) is a high-quality, reliable connection solution for industrial wiring applications. Designed for DIN rail mounting (TS 35), this terminal block features a screw connection technology that ensures secure and maintenance-free connections for solid and stranded conductors. With a rated cross-section of 2.5 mm² (AWG 26-12) and a rated current of 24 A at 800 V, it is suitable for a wide range of control and power distribution systems. The beige insulation material, Wemid (PA 66), offers excellent thermal and mechanical properties, with an operating temperature range from -50 °C to +120 °C and a flammability rating of V-0 (UL 94). Each pack contains 100 pieces, making it ideal for large-scale installations.

Advantages

• Screw connection technology for fast and reliable wiring
• Compact design saves space on DIN rail
• High temperature resistance and self-extinguishing material for safety
• Wide approval portfolio including CE, cURus, EAC, KEMA, ATEX, IECEx
• Cost-effective bulk packaging of 100 pieces

Suitable for

• Industrial control cabinets
• Building automation
• Power distribution systems
• Machine building
• Process automation

Key specifications

• Terminal Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Number of Potentials: 1
• Number of Connections: 2
• Rated Cross-section (IEC): 2.5 mm²
• Conductor Size (AWG): 26 - 12 AWG
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Rated Impulse Voltage: 8 kV
• Pollution Degree: 3
• Insulation Material: Wemid (PA 66)
• Color: Beige
• Mounting Type: DIN Rail (TS 35)
• Operating Temperature Range: -50 °C to +120 °C
• Flammability Rating (UL 94): V-0
• Approvals: CE, cURus, EAC, KEMA, ATEX, IECEx
• Weight per Piece: 7.51 g
• Packaging Quantity: 100 pieces

Recommendations

For optimal performance, use with appropriate screwdrivers and follow torque specifications. Ensure proper conductor stripping length and secure tightening. This terminal block is part of the Weidmüller W-Series, offering a comprehensive range of accessories for flexible system configuration.
