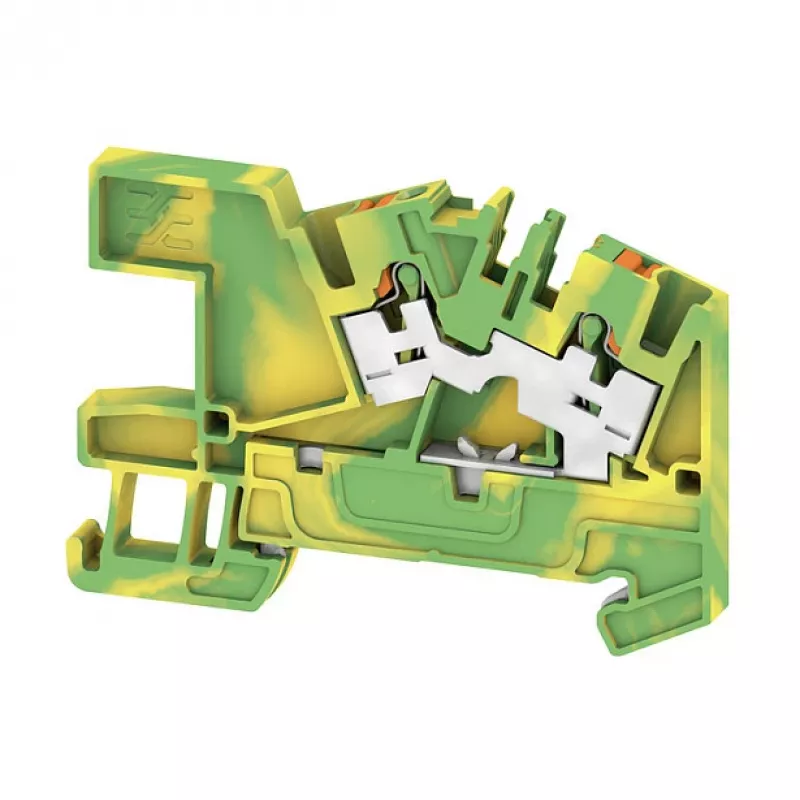

Weidmüller AITB 2.5 BB 2C PE Protective Conductor Terminal Block 2668680000

The Weidmüller AITB 2.5 BB 2C PE is a high-quality protective conductor (PE) terminal block designed for reliable grounding and earthing applications. With a rated cross-section of 2.5 mm² and screw connection technology, it ensures secure and durable connections in industrial environments. This terminal block is part of the AITB series, known for its compact design and robust performance.

Advantages

• Reliable protective conductor connection for safety-critical applications
• Screw connection technology ensures vibration-resistant and maintenance-free connections
• Compact design saves space on DIN rail TS 35
• Wide operating temperature range from -50 °C to +120 °C
• High flammability rating UL 94 V-0 for enhanced safety

Suitable for

• Industrial control panels and switchgear
• Building automation and distribution systems
• Machine building and plant engineering
• Protective earth (PE) bonding in electrical installations

Key specifications

• Terminal type: Protective conductor (PE) terminal block
• Connection technology: Screw connection
• Rated cross-section: 2.5 mm²
• Conductor cross-section (solid): 0.5 - 4 mm²
• Conductor cross-section (flexible): 0.5 - 2.5 mm²
• Rated current (IEC): 24 A
• Number of potentials: 1 (PE)
• Number of connections: 2
• Mounting type: DIN rail TS 35
• Colour: Green/Yellow
• Insulating material: Wemid
• Flammability rating: UL 94 V-0
• Operating temperature: -50 °C to +120 °C
• Stripping length: 10 mm
• Tightening torque: 0.4 - 0.8 Nm
• Number of levels: 1
• Approvals: cULus, EAC, KEMA, ATEX

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper tightening torque. Suitable for use in demanding industrial environments where reliable PE connections are required.
