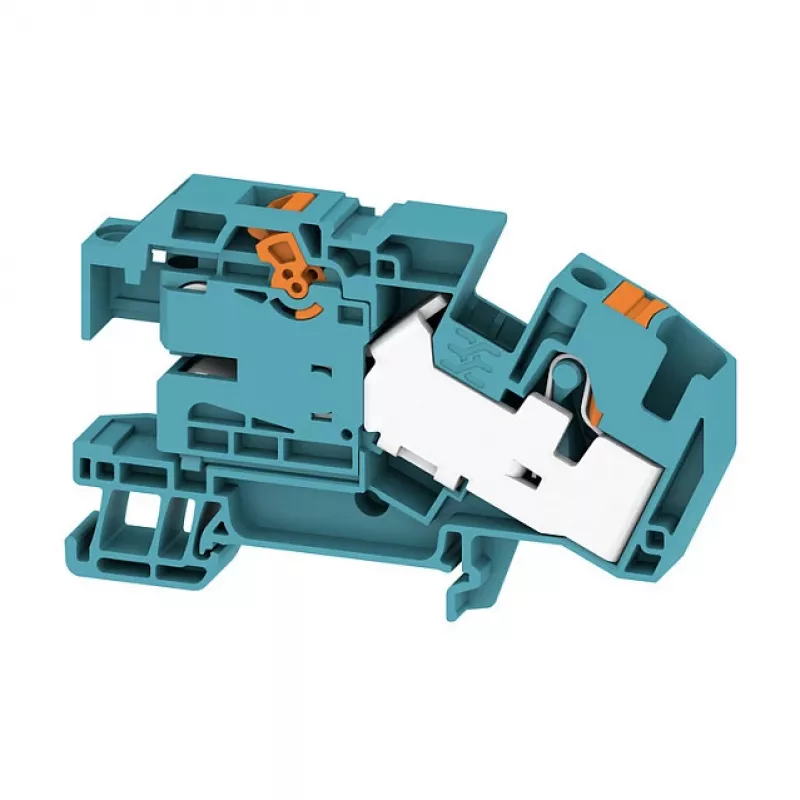

Weidmüller AITB 16 BB NDT BL Fuse Terminal Block, Screw Connection, 400 V, 6.3 A, Blue, 10 mm Stripping Length

The Weidmüller AITB 16 BB NDT BL is a high-quality fuse terminal block designed for reliable overcurrent protection in industrial control systems. With a rated voltage of 400 V and rated current of 6.3 A, it accommodates G-fuses (5x20mm / 5x25mm / 5x30mm) and features a screw connection for secure wiring. The blue Wemid insulation material ensures durability and clear identification.

Advantages

Compact design saves space on DIN rail TS 35. Screw connection provides vibration-resistant and maintenance-friendly wiring. Wide operating temperature range from -50 °C to 100 °C ensures performance in harsh environments. Approvals include cULus, KEMA, and EAC for global acceptance.

Suitable for

• Industrial control panels
• Automation systems
• Power distribution units
• Machine building

Key specifications

• Product Type: Fuse Terminal Block
• Series: AITB
• Connection Technology: Screw Connection
• Number of Potentials: 1
• Number of Connections: 2
• Fuse Type: G-fuse (5x20mm / 5x25mm / 5x30mm)
• Rated Voltage (IEC): 400 V
• Rated Current (IEC): 6.3 A
• Rated Cross-Section (Rigid): 1.5 mm²
• Rated Cross-Section (Flexible): 1.5 mm²
• Mounting Type: DIN Rail TS 35
• Insulation Material: Wemid
• Color: Blue
• Stripping Length: 10 mm
• Pollution Degree: 3
• Overvoltage Category: III
• Operating Temperature: -50 °C to 100 °C
• Approvals: cULus, KEMA, EAC

Recommendations

For optimal performance, use with appropriate G-fuses rated for your application. Ensure proper torque settings during installation to maintain reliable electrical connections.
