Wearable barcode reader Newland WD2 — 1D/2D CMOS, Bluetooth & USB, IP65, 80 m range, built-in Li‑Ion battery, 43 g

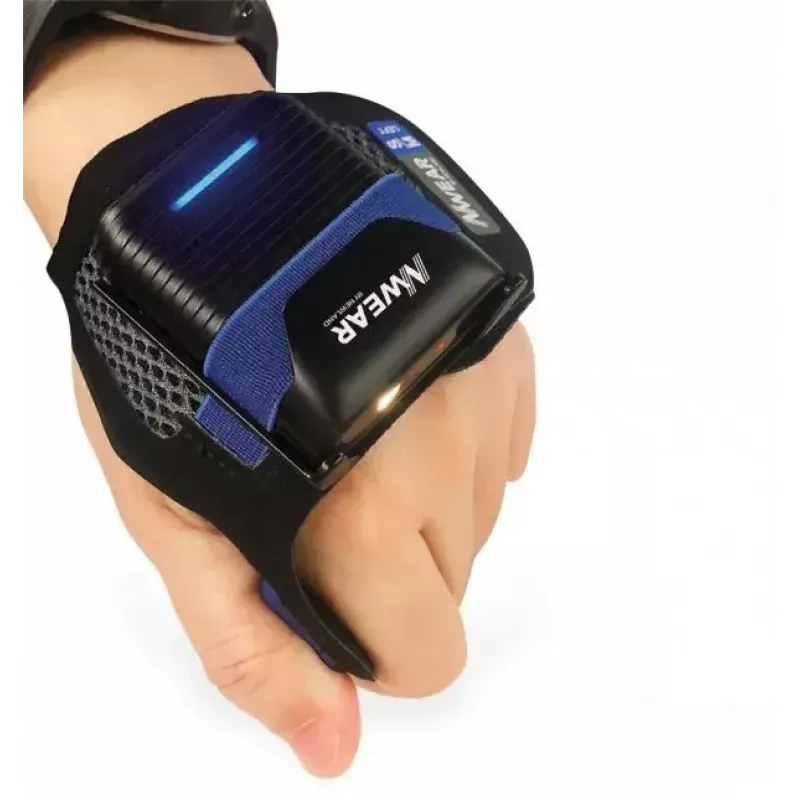

The Newland WD2 is a wearable 1D/2D barcode reader with a CMOS sensor designed for hands-free scanning in warehouse, retail and logistics workflows. Compact and lightweight at 43 g, it supports wired USB and Bluetooth 5.0 wireless connectivity with up to an 80 m range, offers IP65 protection, and runs on a built-in Li‑Ion battery. The device features Acuscan image processing and Newland 2D megapixel scanning technology to capture high-density, distorted and closely placed barcodes.

Advantages

The WD2 combines a comfortable adjustable hand strap with an integrated thumb trigger to enable continuous scanning without putting the scanner down. Its Acuscan technology and megapixel sensor improve read rates on damaged, distorted or dense barcodes. The unit is lightweight to reduce fatigue, supports both left- and right-hand operation, fits over gloves, and includes a compact 2-bay charging cradle that can be daisy-chained into a multi-bay dock powered by a single PSU.

Suitable for

• Order picking and packing in warehouses
• Retail inventory and price checks
• Logistics and parcel handling operations
• Cold storage or environments requiring gloves

Key specifications

• Scanner type: 1D/2D CMOS
• Connectivity: USB (wired) and Bluetooth 5.0 (wireless), up to 80 m range
• Protection: IP65
• Weight: 43 g
• Battery: built-in Li‑Ion
• Aiming: laser red dot / red crosshair (standard and mid-range versions)
• Charging: compact 2-bay cradle, linkable to 4/6/8/10-bay multi-dock via single PSU
• Supported codes: EAN-13, Code 39, EAN-8, GS1 DataBar, GS1-128, UPC, Code 128, QR Code, PDF417, Aztec, Micro QR, and other common 1D/2D formats

How to use

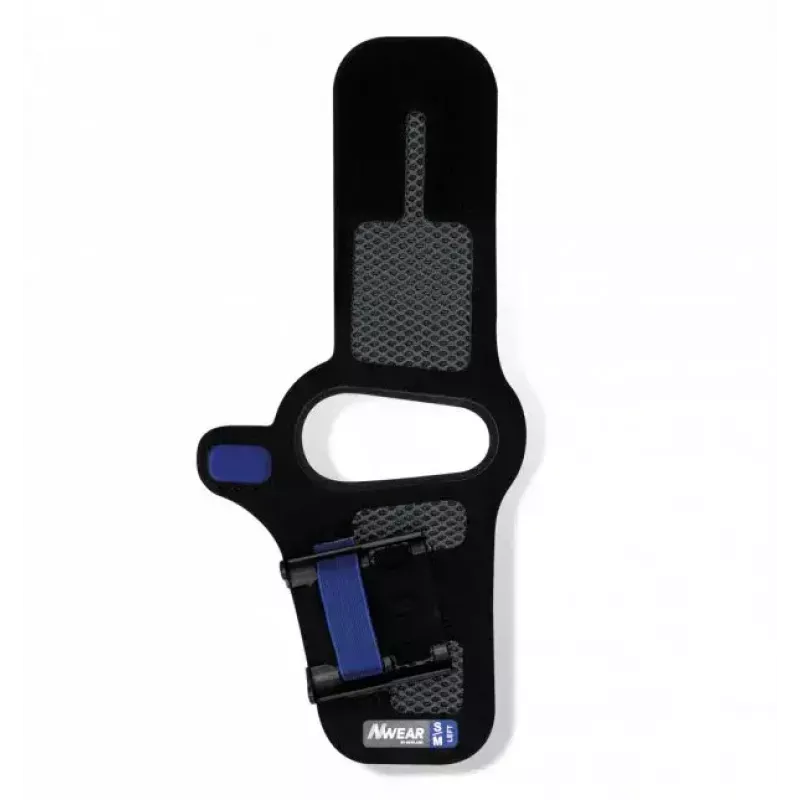

Fit the WD2 to the preferred hand using the adjustable strap sized for small/medium or large hands; the strap can be worn on left or right hand and over gloves. Activate scanning with a light press of the thumb trigger and aim using the red aiming indicator appropriate to the model (crosshair for standard range, single dot for mid-range). Pair the scanner to a host device via Bluetooth 5.0 or connect with a USB cable. After use, place the device into the 2-bay cradle for charging; multiple cradles can be linked to create a larger dock charged by one PSU.

Recommendations

For best results, use the appropriate aiming mode for your application: the standard crosshair for close, small or clustered codes and the mid-range dot for larger or isolated codes. Maintain the cradle contacts and firmware updates to ensure reliable Bluetooth pairing and optimal read performance.
