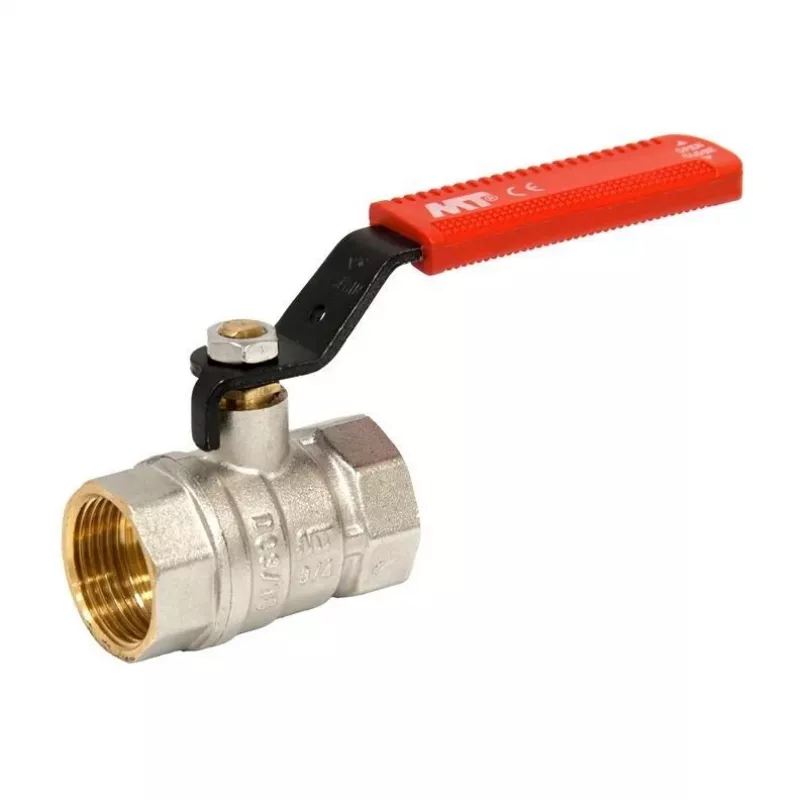

Water Valve 40922050 2 inch Female Threaded Full Bore Ball Valve with Long Lever Handle

Engineered for full-bore flow with a 2-inch DN50 female threaded connection, this brass ball valve delivers a PN25 pressure rating and a -10°C to +120°C temperature range, making it a robust choice for demanding plumbing, HVAC, and industrial systems.

Overview

The Water Valve 40922050 is a manually operated quarter-turn ball valve designed for reliable shut-off and flow control. Its full-bore construction ensures minimal pressure drop, while the long lever handle provides easy operation even in tight spaces. The valve body is crafted from high-quality brass (CW617N) with a chrome-plated brass ball and PTFE seats, offering excellent durability and corrosion resistance. Female threaded ends conform to BSPP (ISO 228/1) standards, ensuring compatibility with standard piping systems.

What stands out

• Full bore design for unrestricted flow and low pressure loss
• Long lever handle for effortless quarter-turn operation
• Durable brass body with chrome-plated ball and PTFE seats
• Wide operating temperature range from -10°C to +120°C
• High pressure rating of 25 bar (PN25) for demanding applications
• Female threaded connections (2" FF) for easy installation
• Corrosion-resistant materials suitable for water and non-aggressive fluids

Technical details

• Valve type: Ball valve
• Connection size: 2 inches (DN50)
• Connection type: Female threaded (FF)
• Thread standard: BSPP (ISO 228/1)
• Handle type: Long lever handle
• Body material: Brass (CW617N)
• Ball material: Chrome-plated brass
• Seat material: PTFE (Teflon)
• Stem material: Brass
• Stem seal material: NBR O-rings
• Maximum operating pressure: 25 bar (PN25)
• Operating temperature range: -10°C to +120°C
• Flow type: Full bore
• Actuation: Manual quarter turn
• Media compatibility: Water, non-aggressive fluids
• Application: Plumbing, HVAC, Industrial
• Corrosion resistance: Good
• Certification: CE Compliant

Our verdict

A heavy-duty, full-bore brass ball valve that combines high pressure tolerance, wide temperature range, and effortless operation. Ideal for professionals who need reliable flow control in plumbing, heating, and industrial environments.
