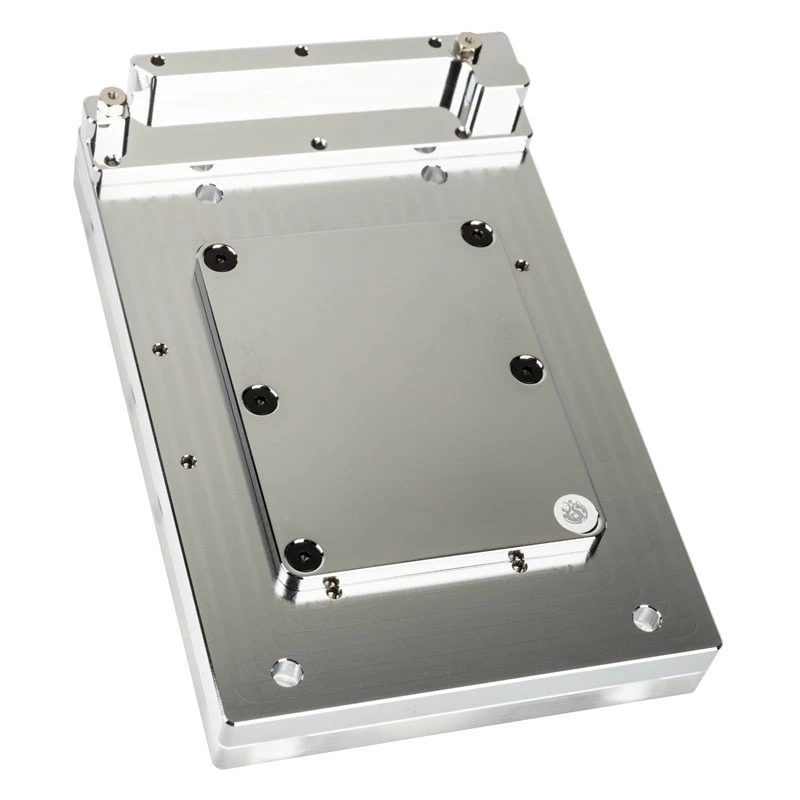

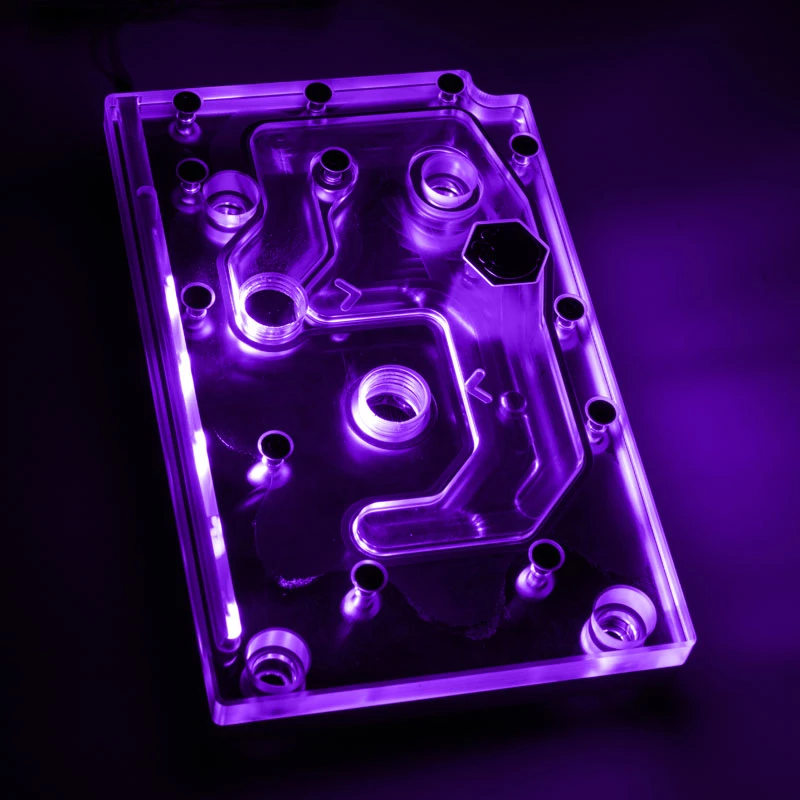

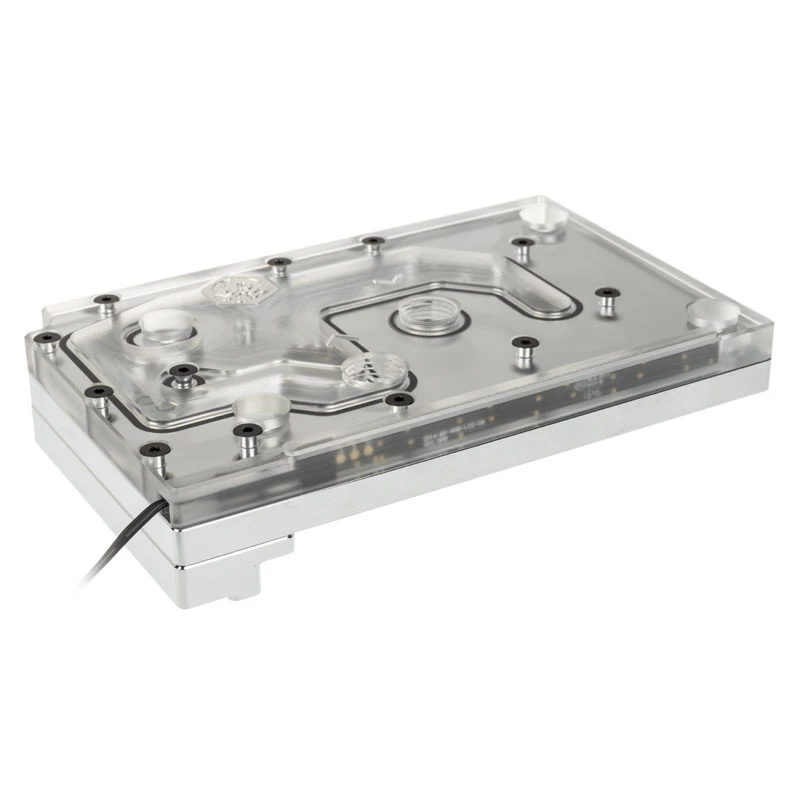

Water block BitsPower Monoblock for ASRock X399M Taichi RGB, Acrylic/Copper, Nickel-plated, 90×142×29.1 mm

BitsPower Monoblock for ASRock X399M Taichi RGB is a dedicated liquid cooling block engineered to fit the ASRock X399M Taichi RGB motherboard. The monoblock features a solid acrylic top, a copper coldplate with nickel plating, and a compact footprint of 90×142×29.1 mm. It is intended to be integrated into custom cooling loops to cool the CPU area and the surrounding VRM components on the X399M platform. The package includes an RGB LED set, a high-conductivity thermal pad, a spare O-ring and mounting screws to simplify installation and integration with RGB-capable systems.

Advantages

The monoblock combines a nickel-plated copper coldplate for efficient heat transfer with an acrylic top that allows RGB illumination to be visible. Its design provides direct contact cooling for the CPU and VRM area on the supported motherboard, reducing component temperatures within a custom loop. Included accessories such as the thermal pad and spare O-ring help ensure reliable thermal coupling and leak-resistant sealing, while the compact dimensions allow compatibility with typical ATX-based case layouts that host the ASRock X399M Taichi RGB.

Suitable for

• Custom water cooling loops on ASRock X399M Taichi RGB motherboards
• Systems requiring combined CPU and VRM cooling in TR4/Threadripper X399 platform builds
• RGB-enabled builds where visible lighting integration is desired
• Upgrades aimed at lowering CPU and VRM operating temperatures under sustained loads

Key specifications

• Material of coldplate: copper with nickel plating
• Top material: solid acrylic
• External dimensions: 90 mm (width) × 142 mm (depth) × 29.1 mm (height)

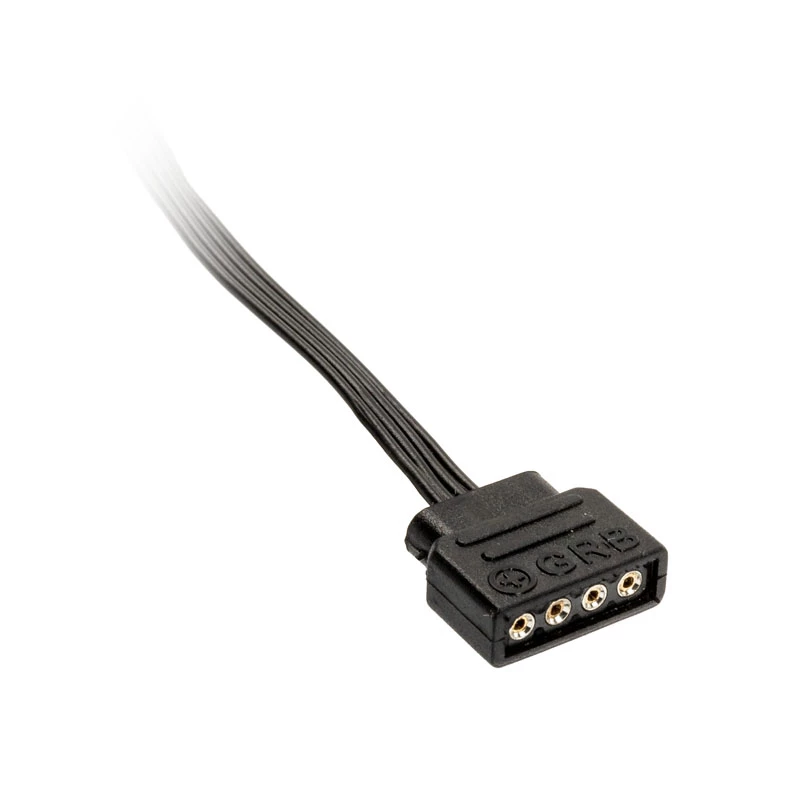

• Includes RGB LED set for illumination
• Supplied thermal interface: high-conductivity thermal pad for VRM area
• Accessories included: spare O-ring and mounting screws

How to use

Mount the monoblock directly onto the CPU and VRM area of the ASRock X399M Taichi RGB motherboard following the motherboard and monoblock manufacturer instructions. Apply the included high-conductivity thermal pad to the VRM contact points and ensure the CPU area has appropriate thermal interface material as required by your CPU socket and cooler design. Secure the block with the supplied mounting screws and check that the O-ring is seated correctly to prevent leaks. Connect the RGB LED set to the motherboard header or controller to enable lighting control.

Recommendations

Before filling the loop, perform a pressure or leak test according to standard custom-loop procedures. Use coolant compatible with nickel-plated copper to avoid corrosion, and periodically inspect fittings and O-rings for wear. Ensure the motherboard BIOS and RGB software are configured to control the connected LED set if synchronized lighting is desired.
