Water block Alphacool 13326 Acetal Aluminium Glass Black Transparent

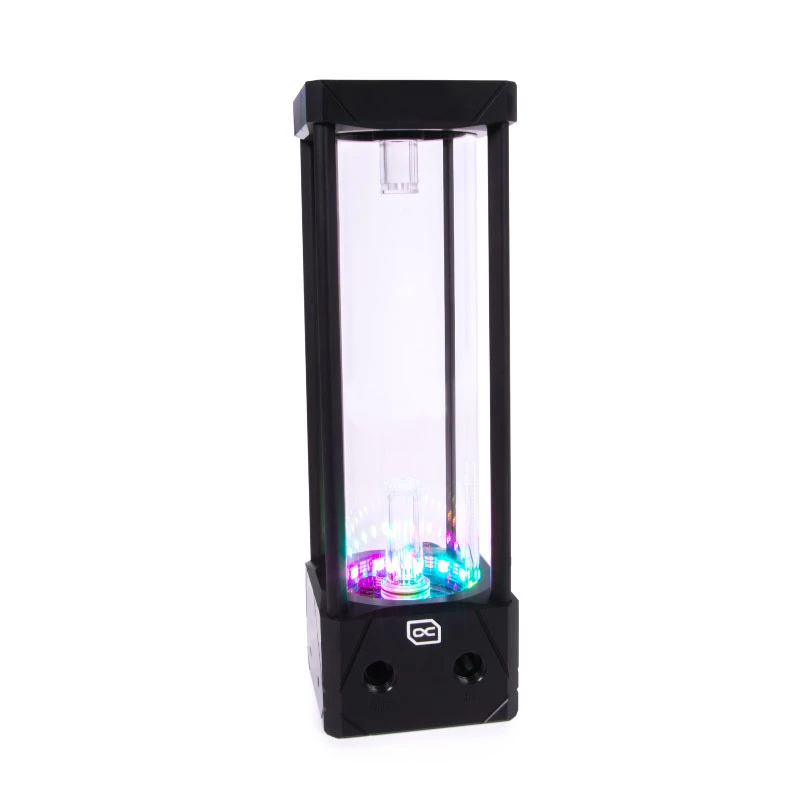

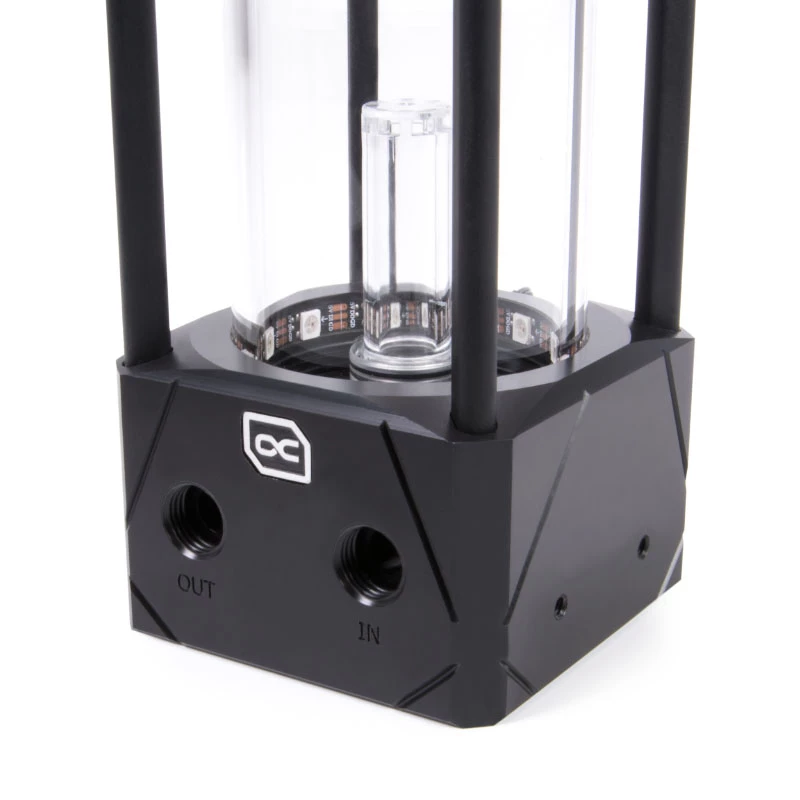

The Alphacool Eisbecher Aurora reservoir integrates a glass tube reservoir with an acetal D5/VPP pump top and lid, and includes a VPP Apex pump. The design combines glass and acetal materials and features 12 digitally addressable RGB LEDs in the pump top plus the Lighttower water effect inside the glass tube, creating dynamic illumination and visible flow effects. The product is supplied with mounting stands and fan/radiator mounting frames for flexible installation inside PC cases.

Advantages

The combination of a glass tube and acetal pump top provides a visually clear and durable expansion tank. Twelve addressable aRGB LEDs mounted at the lower tube edge produce consistent illumination of the reservoir and work together with the Lighttower water effect to create a distinctive visual accent. The included VPP Apex pump uses a ceramic shaft and externally relocated motor coils for improved stability, reduced vibration and lower power consumption. Multiple mounting options allow installation on the case floor, on free fan positions or on radiator fan locations.

Suitable for (tasks / use cases)

• Custom liquid-cooled PC systems requiring a visible reservoir and lighting
• Builds with 120 mm or 140 mm fan spaces for radiator or fan-mounted reservoir installation
• Users who want PWM speed control and RPM monitoring of the pump

Key specifications

• Reservoir tube material: glass

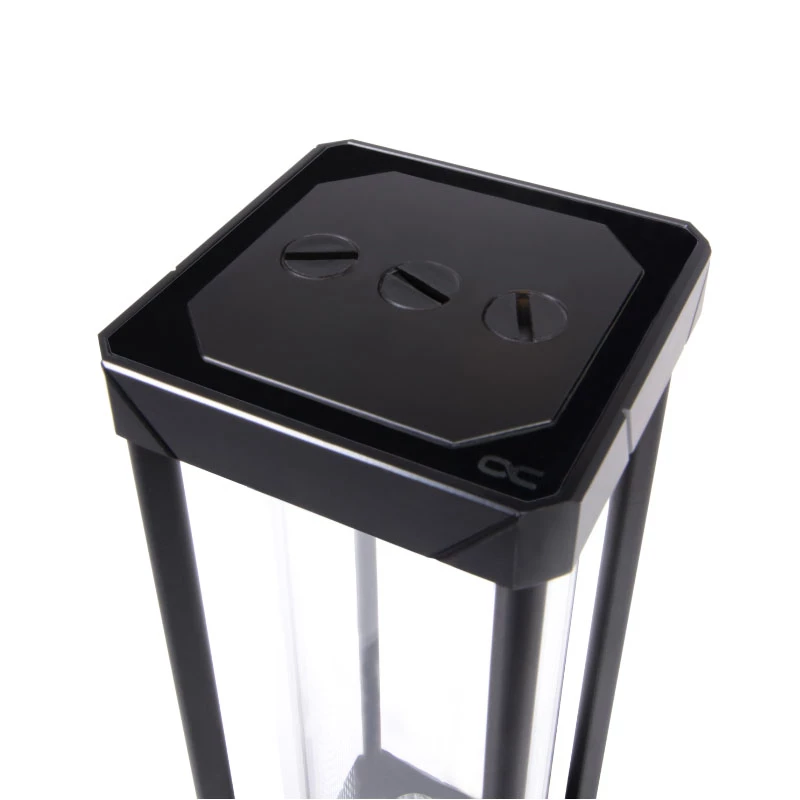

• Pump top and lid material: acetal

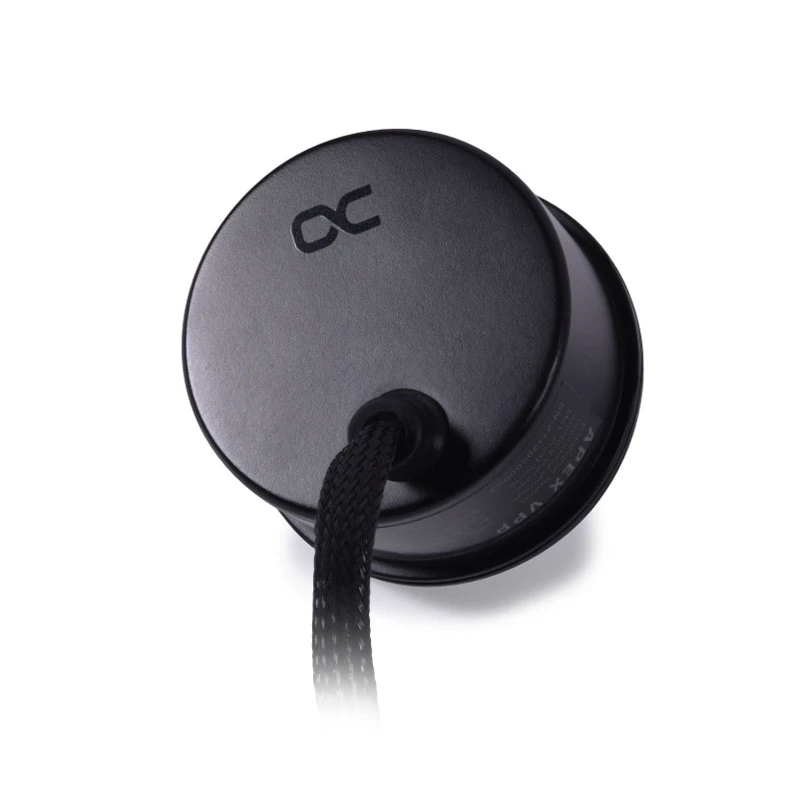

• Included pump: VPP Apex (D5-compatible)
• LEDs: 12 digitally addressable aRGB LEDs, 3‑pin JST connection, 5 V control
• Lighting control: compatible with digital RGB controllers or 5V aRGB-capable motherboards

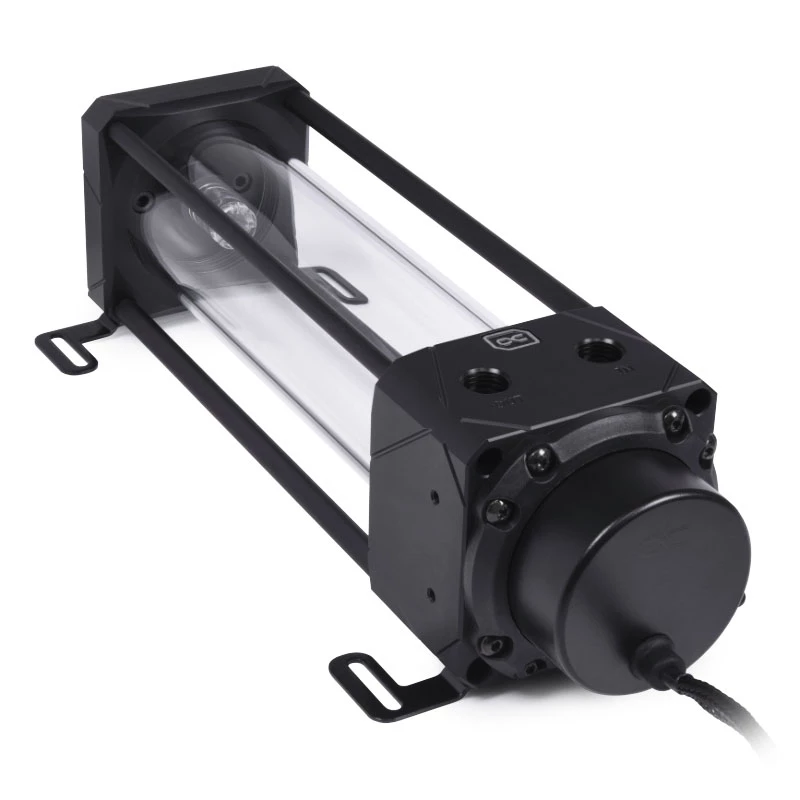

• Mounting options: included stands plus 120/140 mm mounting frames
• Pump power connection: SATA power connector
• Pump control and monitoring: 4‑pin PWM connector with RPM signal

How to use

Install the reservoir using the supplied stands for bottom-of-case mounting or use the 120/140 mm mounting frames to attach the reservoir to free fan positions, radiator fans or radiator mounts. Connect the 3‑pin JST aRGB cable to a compatible 5 V digital RGB header or controller for lighting control. Mount the VPP Apex pump and connect power via the SATA connector. Connect the pump’s 4‑pin PWM cable to a motherboard or external controller to set pump speed and read RPM. Fill the reservoir following your loop’s filling procedure and orient the riser tube to achieve the desired Lighttower water effect without overfilling the riser tube edge.

Recommendations

Do not fill the reservoir above the top edge of the riser tube if you want the Lighttower fountain effect; adjust flow and reservoir fill level to control the intensity of the effect. Use a compatible 5 V aRGB controller or a motherboard digital RGB header for full LED control. Ensure secure SATA power and PWM connections and route tubing to avoid stress on the glass tube during installation.
