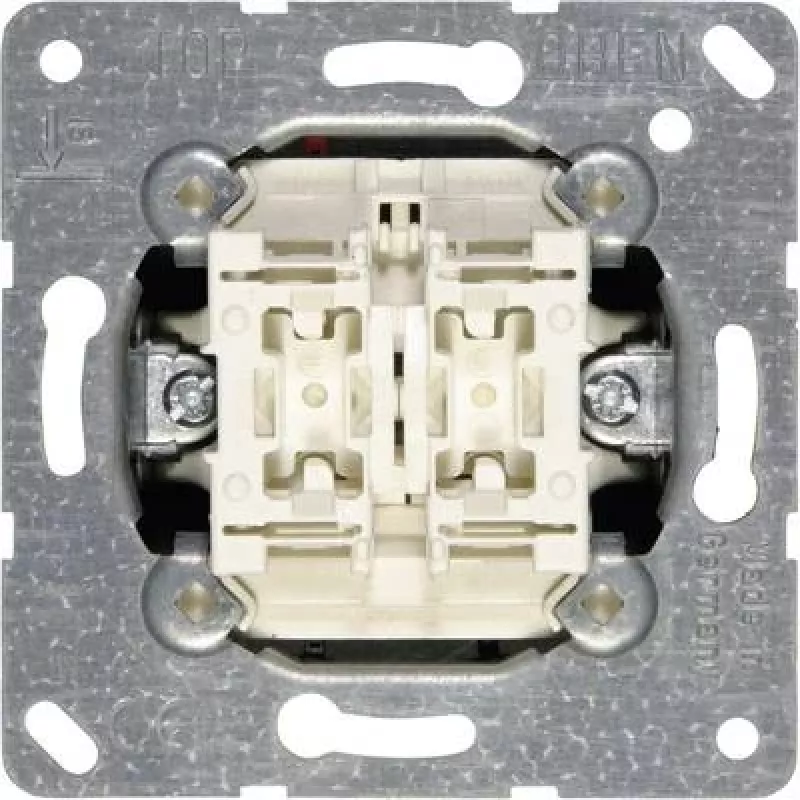

Wall Switch Module JUNG 505 U 1P, 1-pole 10 A, 250 V — Metallic White

JUNG 505 U is a 1-pole wall switch module designed for standard household and light-commercial electrical installations. The module provides manual switching of single-phase circuits with a nominal switching current of 10 A at up to 250 V AC, packaged in a compact form that fits common switch frames. The metallic white finish provides a neutral appearance suitable for a range of interior styles while the single-pole design enables reliable control of lighting and simple electrical loads.

Advantages

The switch module combines a compact form factor with conventional electrical ratings for ease of installation and predictable operation. Its 1-pole configuration simplifies wiring for single-phase circuits and the 10 A rating matches typical lighting and small-appliance loads. The metallic white surface offers a clean, uniform look for visible switch panels and is intended to integrate with standard frame systems and cover plates.

Suitable for

• Control of indoor lighting circuits in residential and small commercial spaces
• Switching of simple single-phase electrical loads up to 10 A
• Replacement or upgrade within standard switch frames and covers

Key specifications

• Poles: single-pole (1P)
• Nominal switching current: 10 A
• Rated voltage: up to 250 V AC
• Finish: metallic white
• Mounting: compact module for standard switch frames

How to use

Install the module into a compatible switch frame according to local electrical codes and the frame manufacturer's instructions. Ensure power is turned off at the circuit breaker before making connections. Connect the line and switched live conductors to the module's terminals, secure wiring, and fit the module into the frame; then attach the cover plate. After restoring power, test the switch operation to confirm correct switching of the intended circuit.

Recommendations

Use the JUNG 505 U for lighting and small single-phase loads that do not exceed the 10 A rating and 250 V AC. For circuits with higher currents, motor loads, or special dimming requirements, select a device rated for the appropriate load type and current capacity. Follow installation rules and local regulations, and consult a qualified electrician if unsure about wiring or compatibility.
