Wall outlet Digitus CAT 5e DN-9001-N

The Digitus CAT 5e wall outlet DN-9001-N is a flush-mount network socket with a single shielded RJ45 port, designed for CAT 5e installations. Measuring 80 × 80 mm and finished in white, it provides a compact, low-profile connection point for structured cabling in offices, homes, or commercial spaces. The unit is certificated to CAT 5e EIA/TIA 568 and ISO/IEC 11801, EN 50173 and supports horizontal cable entry with LSA connection strips.

Advantages

The outlet’s flush mount design and horizontal cable entry enable a neat, space-saving installation. Fully shielded RJ45 sockets and shielded LSA strips enhance safety and electromagnetic compatibility. The sockets are angled by 40° to simplify plugging and unplugging patch cables, while color-coded LSA strips (EIA/TIA 568 B) speed up and reduce errors during termination.

Suitable for

• CAT 5e Ethernet network terminations in offices and homes
• Structured cabling outlets for residential and light-commercial buildings
• Flush-mount applications where a compact, discreet socket is required

Key specifications

• Model: Digitus CAT 5e DN-9001-N
• Standard compliance: CAT 5e EIA/TIA 568, ISO/IEC 11801, EN 50173
• Connector: Shielded RJ45, angled 40°

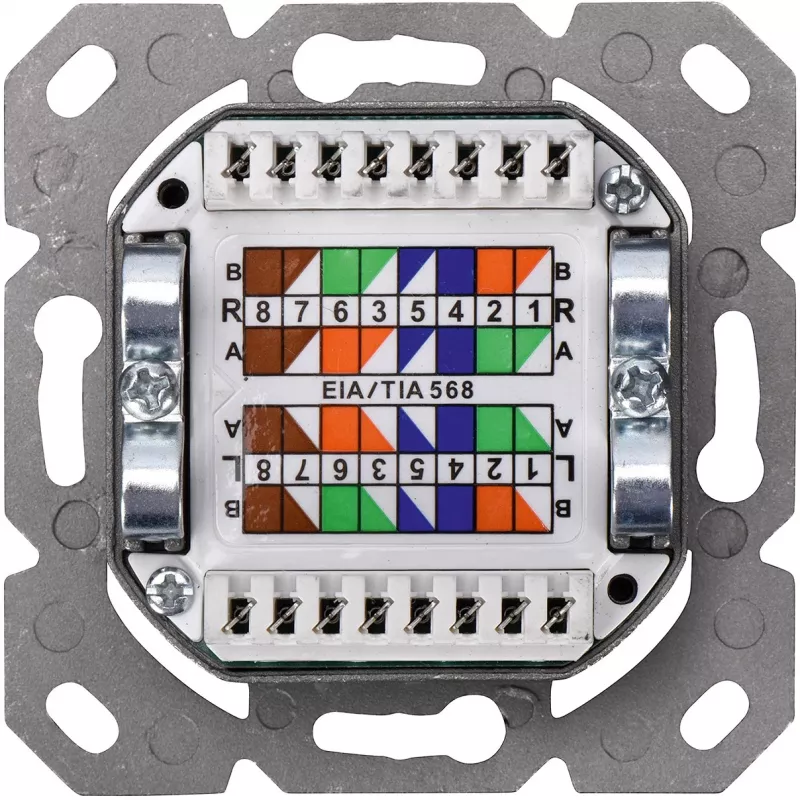

• Cable termination: LSA strips, color coded EIA/TIA 568 B
• Mounting: Flush mount
• Dimensions: 80 × 80 mm
• Colour: White

How to use

Route the network cable to the outlet’s horizontal entry, strip the outer sheath and separate pairs according to the EIA/TIA 568 B color code. Terminate the conductors onto the LSA strips using a suitable punch-down tool, ensuring secure and fully seated contacts. After termination, attach the outlet into the flush mounting box and secure the faceplate. Connect patch cables to the angled shielded RJ45 port for network operation.

Recommendations

Use this outlet in combination with shielded CAT 5e cabling and proper grounding to maintain shielding effectiveness. For reliable performance, test terminations with a network cable tester after installation and follow local cabling standards for mounting height and routing.
