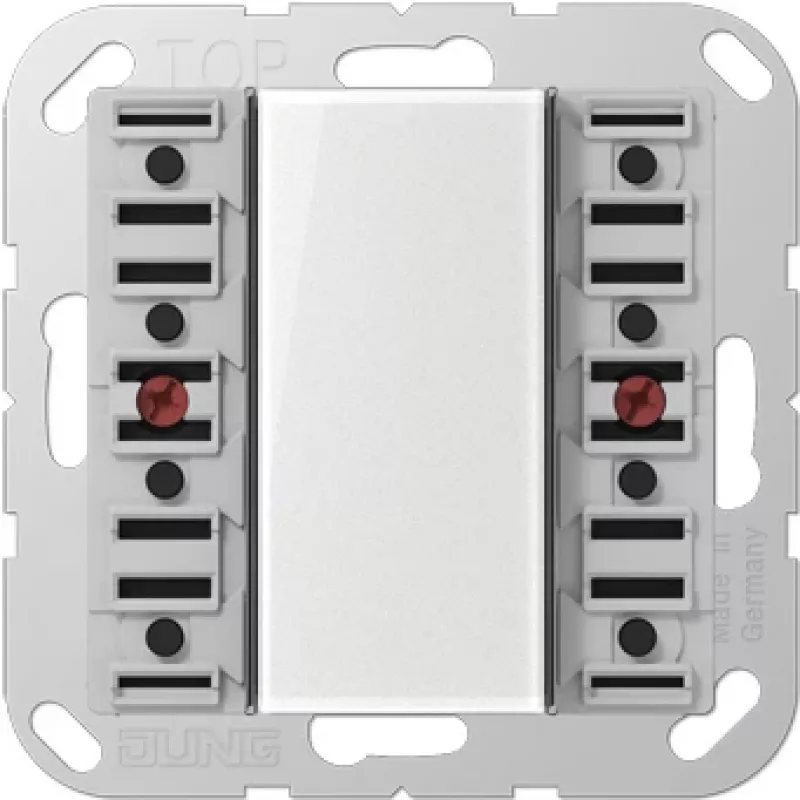

Wall-mounted switch actuator JUNG A 5072 TSM — model A5072TSM, brand jung

JUNG A 5072 TSM is a wall-mounted switch actuator by jung, model A5072TSM, designed for reliable control of electrical loads in residential and commercial installations. Intended for installation in a flush-box according to DIN 49073, the device provides on/off switching and expanded push-button functions for lighting, blinds and scene control. It includes a transparent cover kit for temporary site use and is designed to be completed with a final cover kit to match the installation design.

Advantages

The actuator integrates an energy-saving mode and an integrated bus coupling unit for compatibility with building automation systems. It features a configurable operation LED that can be set to red, green or blue for orientation or programming status, plus one red status LED for each pair of buttons to indicate switching state. The unit supports multiple push-button functions such as switching, dimming, blinds control and scene recall, while the transparent temporary cover kit allows safe operation during installation.

Suitable for

Key specifications

How to use

Install the actuator into a standard flush-box following DIN 49073 and the applicable electrical safety regulations. Complete wiring and connection to the building bus system using the integrated bus coupling unit. Fit the transparent cover kit supplied for temporary operation on site, then replace with the chosen design cover kit to finish the installation. Configure the operation LED colour and assign push-button functions (switching, dimming, blind control or scene control) via the associated commissioning tools or bus system interface.

Recommendations

Use the device only as part of a compatible KNX/building automation setup and follow local wiring standards. For reliable operation and compliance with installation norms, have mounting, wiring and commissioning performed by a qualified electrician. Replace the temporary transparent cover with the appropriate design cover kit before final handover.
