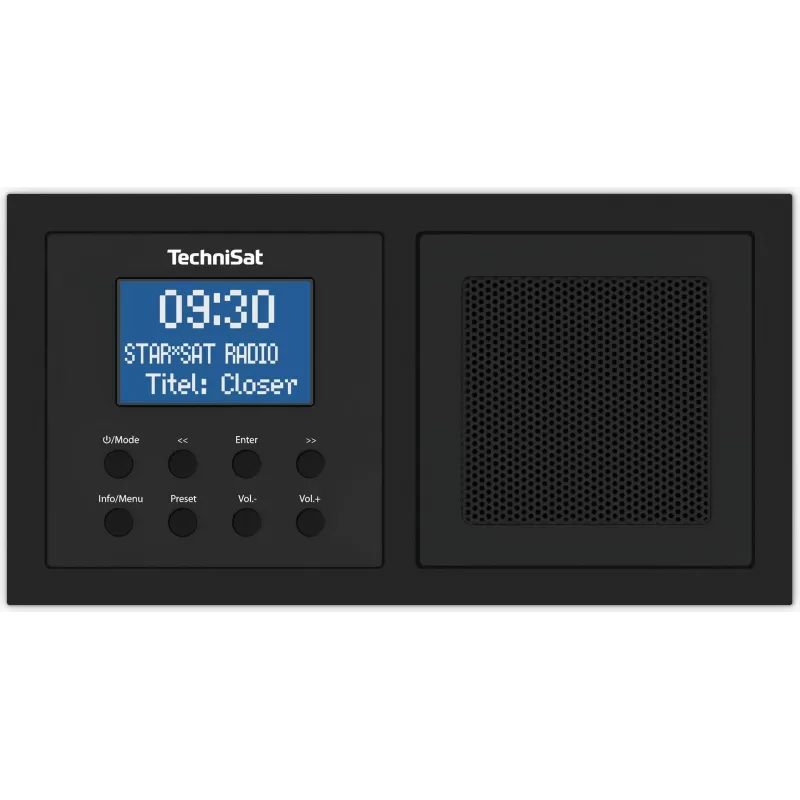

Wall mounted radio TechniSat DIGITRADIO UP 1

The TechniSat DIGITRADIO UP 1 is a compact, wall-mounted radio designed for installation in a standard double flush-mounted socket. It supports digital DAB+ and conventional FM reception and offers Bluetooth 2.1+EDR streaming, a 1.7-inch (4.32 cm) blue-backlit LCD and a splash-proof housing suitable for humid rooms such as bathrooms. The unit combines radio, speaker and light-switch functionality in a single, space-saving device with a black finish and an RMS output of 2 W.

Advantages

The DIGITRADIO UP 1 provides clear digital and FM reception with RDS support for station data and alternative frequencies. Its splash-proof construction permits safe use in moisture-prone areas. Bluetooth streaming lets you play music from smartphones or tablets without cables. Built-in wake and sleep functions add basic alarm capabilities, while the speaker doubles as a light switch to reduce the need for additional wall controls.

Suitable for

• Bathrooms and kitchens where moisture resistance is required
• Small rooms or corridors with limited space for standalone audio devices
• Bedrooms requiring a compact alarm-capable radio
• Areas where a combined radio and light-switch solution is preferred

Key specifications

• Radio bands: DAB+ and FM (with RDS)
• Bluetooth: version 2.1 + EDR
• Display: 1.7" (4.32 cm) LCD with blue backlight
• Output power: 2 W RMS
• Installation: double flush-mounted socket (wall mounted)
• Colour: Black
• Weight: 0.25 kg

How to use

Install the DIGITRADIO UP 1 in a compatible double flush-mounted socket following local electrical regulations and, if required, professional installation. Use the display and controls to select DAB+ or FM reception and tune stations; RDS provides station information and alternative frequencies for FM. Pair a Bluetooth source device to the radio to stream audio wirelessly. Configure wake and sleep timers via the menu to use the alarm and sleep functions. The speaker output can be used in conjunction with the unit's light-switch feature to control compatible wall lighting.

Recommendations

Place the unit where it is protected from direct water jets; although splash-proof, it is not rated for full immersion. For optimum DAB+ reception, avoid metal enclosures and position the unit where antenna reception is available. For installations involving mains wiring or light-switch integration, consult a qualified electrician.
