Wall mounted rack Triton RUA-12-AS6-CAX-A1 12U White

The Triton RUA-12-AS6-CAX-A1 is a 12U wall-mounted rack designed for mounting and protecting network and IT equipment in limited spaces. It features a welded steel construction, removable side panels for rear access and a standard glass door (optional steel or perforated door). The cabinet supports equipment up to a total loading capacity of 30 kg and includes provision for cooling fans and adjustable 19" vertical rails, making it suitable for office network closets and small server rooms.

Advantages

The cabinet has a robust welded construction and modern processing that provide a clean appearance and reliable mechanical strength. Removable side panels allow access to installed devices from the rear without full demounting. Breakout-type blanking panels are provided top, bottom and rear to simplify cable routing, and six knockout blanking panels let you fit up to six RAB-CH-X30-X1 cooling fans. One adjustable pair of 19" vertical rails can be positioned to any depth inside the cabinet to simplify equipment mounting and cable organization. The standard glass door opens nearly 180° on its hinge system and can be removed easily; steel or perforated doors are available as options.

Suitable for

• Wall-mounted network equipment racks in offices
• Small server rooms and telecommunications closets
• Mounting switches, patch panels, routers and similar 19" devices
• Installations requiring rear access without cabinet removal

Key specifications

• Model: Triton RUA-12-AS6-CAX-A1
• Rack capacity: 12U
• Width: 600 mm

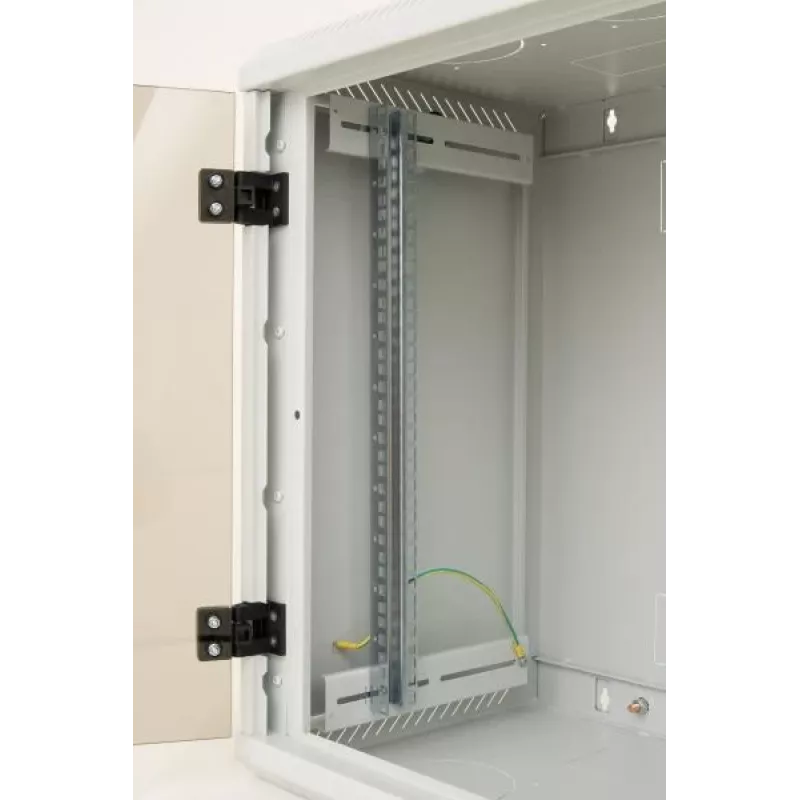

• 19" rails: one adjustable pair, adjustable to any depth

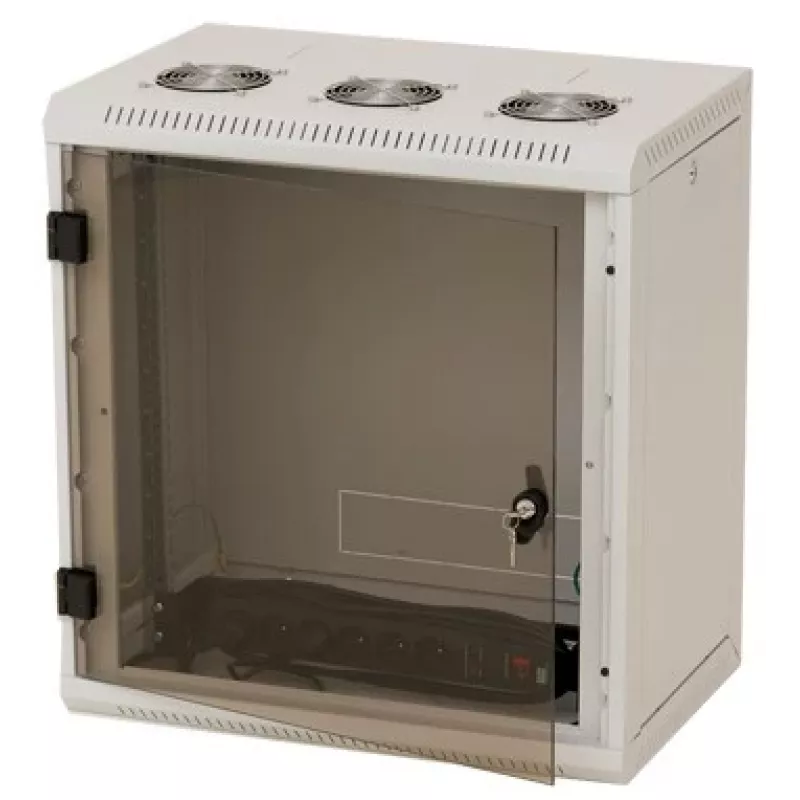

• Door: standard glass (optional steel or perforated)
• Removable side panels: yes

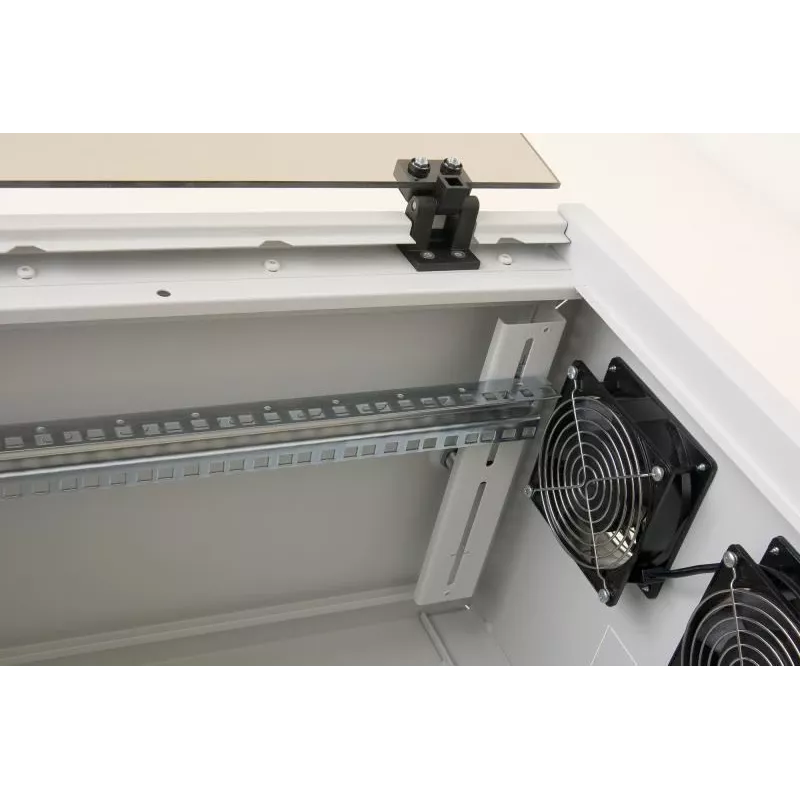

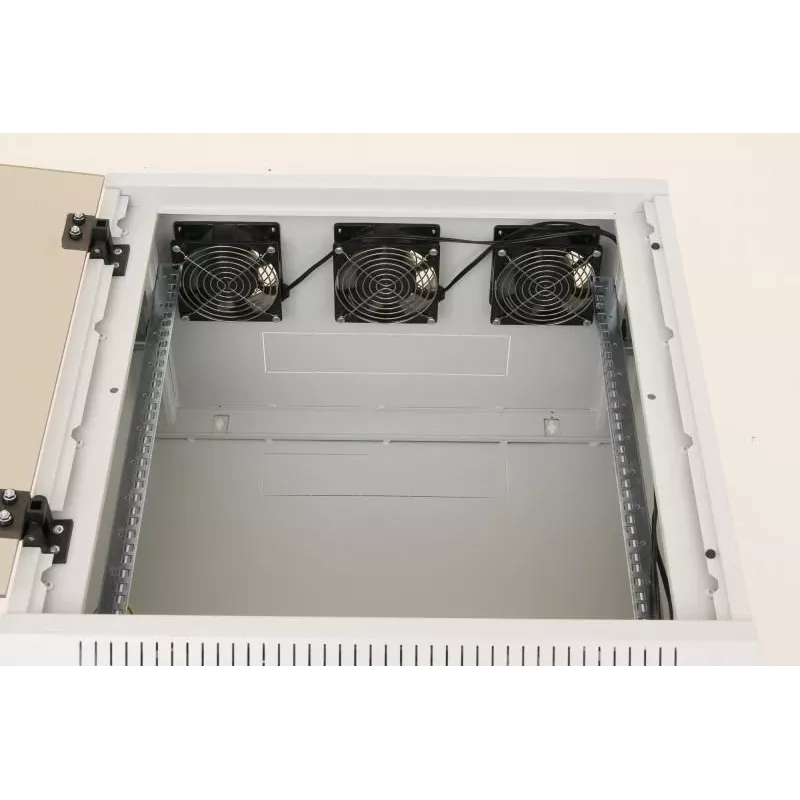

• Cooling provisions: six breakout blanking panels for RAB-CH-X30-X1 fans (three top, three bottom)
• Maximum loading capacity: 30 kg
• Colour: White

How to use

Mount the rack securely to a suitable wall surface using appropriate anchors and fasteners for the wall type and applied load. Position the adjustable 19" vertical rails at the required depth for your equipment and fasten them. Install devices using standard 19" mounting hardware, route cables through the breakout openings and seal openings with the supplied plastic frames and brush blanking panels to limit dust ingress. If additional cooling is required, fit compatible RAB-CH-X30-X1 fans into the designated knockout positions.

Recommendations

Install the cabinet on a load-bearing wall and verify anchor load ratings; do not exceed the 30 kg maximum load. Use the removable side panels for maintenance access and fit the supplied brush panels to reduce dust. Choose a perforated door version if passive ventilation is needed or install the recommended fans in the designated knockout locations for active cooling.
