Wall mounted rack Digitus DN-19 12U-6/6-I-OD

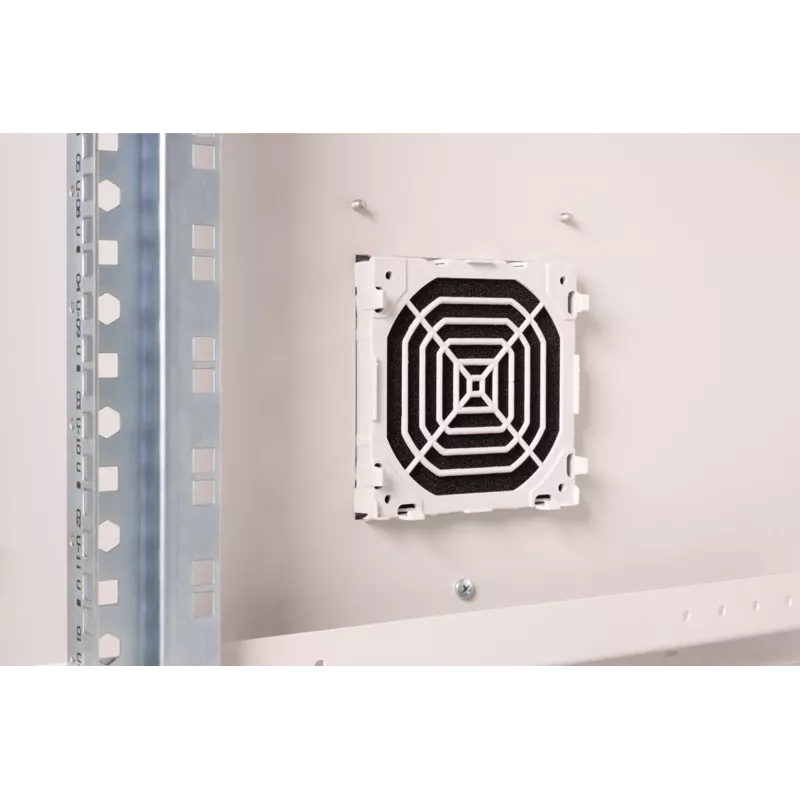

The DIGITUS Wall Mounting Cabinet IP55 (DN-19 12U-6/6-I-OD) is an outdoor-rated 19" industrial network cabinet measuring 600 x 600 x 600 mm. Constructed from up to 2.0 mm sheet steel with a grey (RAL 7035) electrostatic powder finish, the cabinet provides IP55 protection against dust and water jets and is intended for wall installation in harsh environments. It includes a lockable steel front door with a three-point locking mechanism, earthing lead, welded U-shaped reinforcement bars and an integrated fan filter housing with a filtered roof area for ventilation modules.

Advantages

The cabinet offers IP55-rated protection suitable for outdoor exposure to rain, dust, hail and splashing water while supporting standard 483 mm (19") equipment on adjustable, galvanized profile rails marked in rack units. A lockable pivot lever and three-point lock enhance physical security; insulated PG cable glands and a gasket system improve sealing. The robust steel construction and optional plinth or pole-mounting kit provide flexible installation options and allow free-standing or pole-fastened use.

Suitable for

• Outdoor network equipment enclosures (routers, switches, PoE devices)
• Industrial control and monitoring hardware in harsh environments
• Wall-mounted installations where dust and water protection is required
• Sites requiring ventilated enclosures with fan filter modules

Key specifications

• Model: DN-19 12U-6/6-I-OD
• Mounting: Wall mounted (optional plinth for free-standing; pole mounting with kit)
• Rack size: 19" (483 mm), 12U
• External dimensions (W×D×H): 600 × 600 × 600 mm
• Material: Steel sheet up to 2.0 mm
• Protection class: IP55 (protected against dust and water jets)
• Door: Steel front door with lockable pivot lever and 3-point locking
• Finish: Electrostatic powder coating, grey (RAL 7035)
• Weight capacity: suitable for typical network equipment (see manufacturer load limits)

How to use

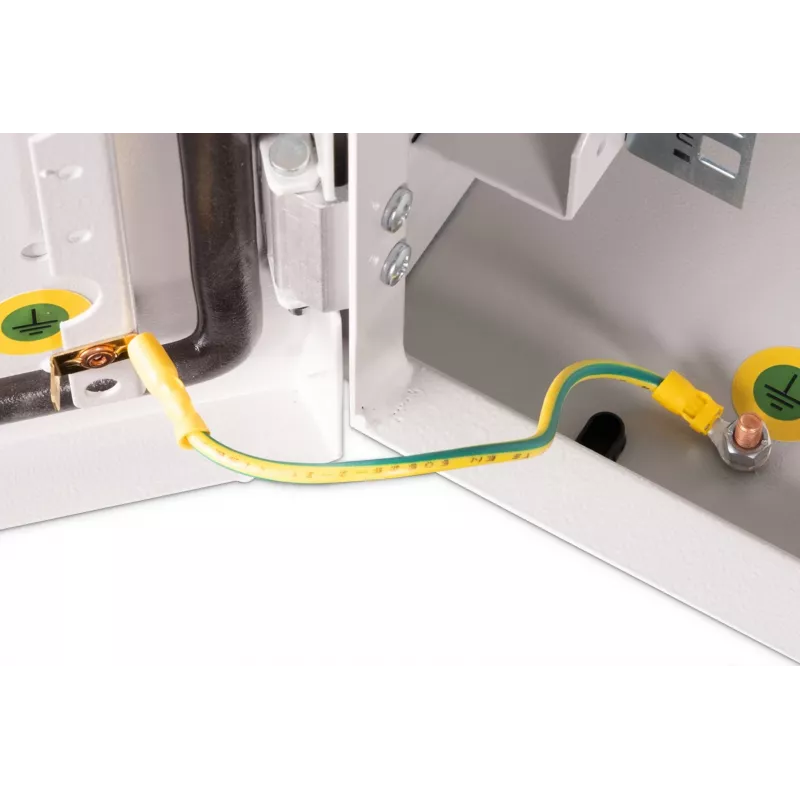

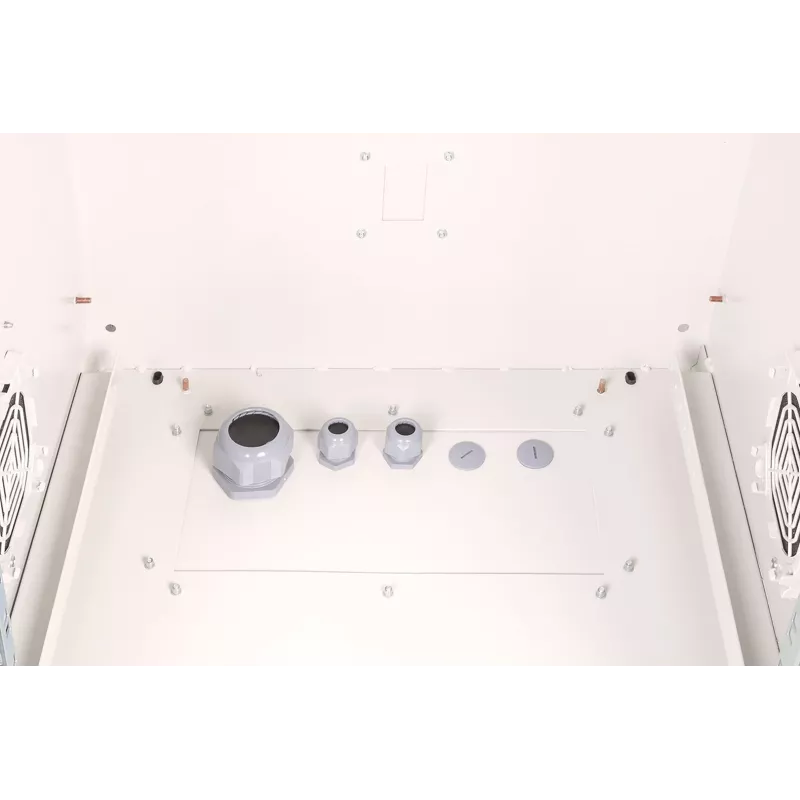

Mount the cabinet to a suitable load-bearing wall using the enclosed mounting bracket and appropriate fixings for the substrate. Install the adjustable galvanized 19" profile rails at the required depth and secure equipment using standard rack screws. Fit cable entries via the insulated PG cable glands and ensure the earthing lead is connected. If active ventilation is required, install a fan module in the filtered roof or fan filter housing according to the fan manufacturer’s instructions.

Recommendations

For long-term outdoor performance, verify the wall structure and mounting anchors support the combined weight of the cabinet and installed equipment, maintain gasket integrity, and use appropriate corrosion-resistant fasteners. Observe manufacturer guidance for fan modules and ensure periodic inspection of seals and cable glands.
