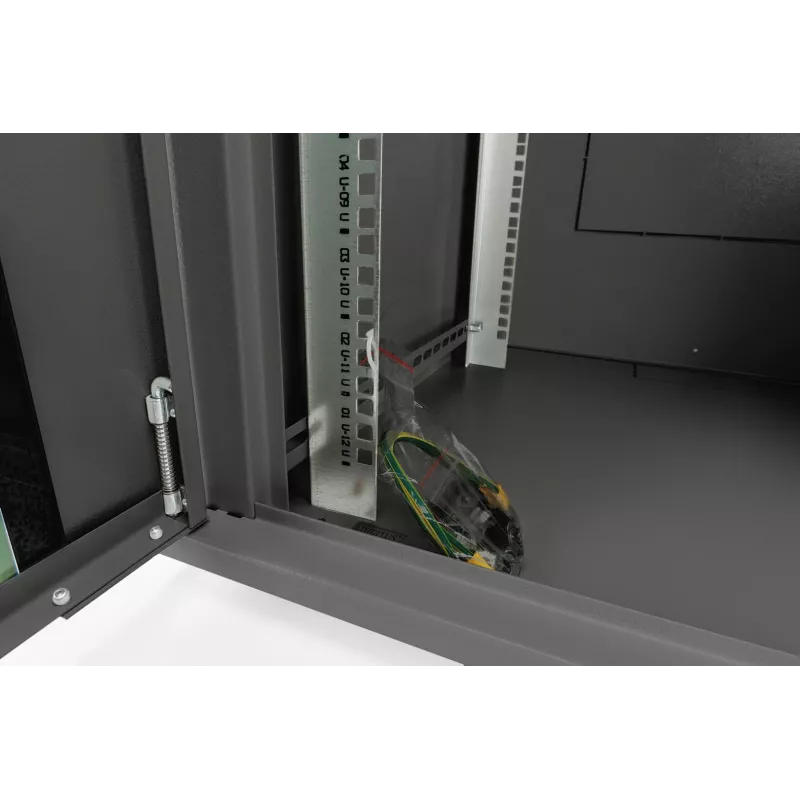

Wall mounted rack Digitus DN-19 12U-6/6-EC-SW

483 mm (19") profile rails are mounted on the front and rear inside the rack, with a depth of 450 mm to enable space-saving installation. The cabinet features optimized air ventilation and exhaust, a lockable safety-glass door in a steel frame, and removable side panels for easier access. Roof, floor and back wall include pre-cut cable inlets, and the roof has a pre-cut area for an optional fan module. Cabinets are constructed from up to 1.5 mm sheet steel and are finished with electrostatic powder coating in gray (RAL 7035) or jet black (RAL 9005). The included mounting plate allows straightforward wall installation in two steps.

Advantages

The Dynamic wall-mount network cabinet offers a compact 450 mm depth for installations where space is limited, adjustable 483 mm (19") profile rails with rack unit markings readable from both directions, and improved accessibility through removable side walls and a switchable-hinge, lockable front safety-glass door. Pre-cut cable inlets and a roof area for a fan simplify cabling and optional ventilation. Durable steel construction with powder coating provides stable protection for network equipment.

Key specifications

• Profile rail width: 483 mm (19")
• Adjustable rail depth: up to 450 mm
• Cabinet depth: 450 mm
• Material thickness: up to 1.5 mm sheet steel
• Finish: electrostatic powder coating (gray RAL 7035 or jet black RAL 9005)
• Front door: lockable safety-glass with steel frame, hinges switchable
• Ventilation: optimized air flow; roof pre-cut for fan module
• Cable management: pre-cut cable inlets in roof, floor and back wall
• Installation: wall-mount using supplied mounting plate (two-step installation)

How to use

Fix the supplied mounting plate to the wall at the desired location, then attach the cabinet housing to the plate and secure it. Install equipment on the 483 mm (19") profile rails, adjusting the rail depth as needed and using the readable rack unit markings for correct alignment. Route cables through the pre-cut inlets in the roof, floor or back wall. If additional cooling is required, install a fan module in the roof pre-cut area. Close and lock the safety-glass front door; side panels can be removed for maintenance.

Recommendations

For reliable operation, plan cable routing before mounting equipment, ensure sufficient clearance for ventilation, and choose the cabinet color and fan option according to room conditions. Verify wall strength and use appropriate fixings for the supplied mounting plate.
