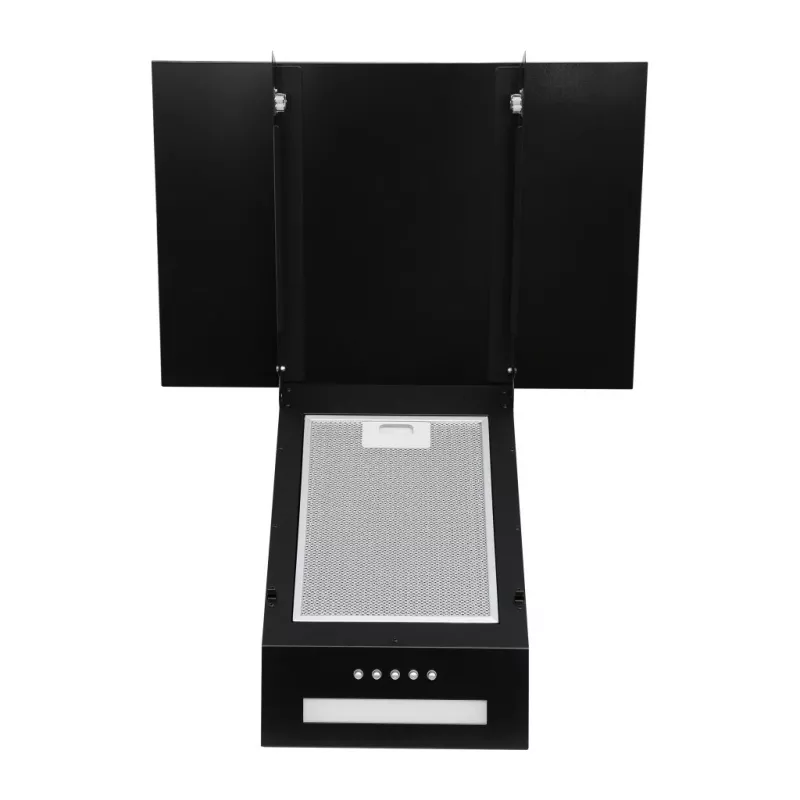

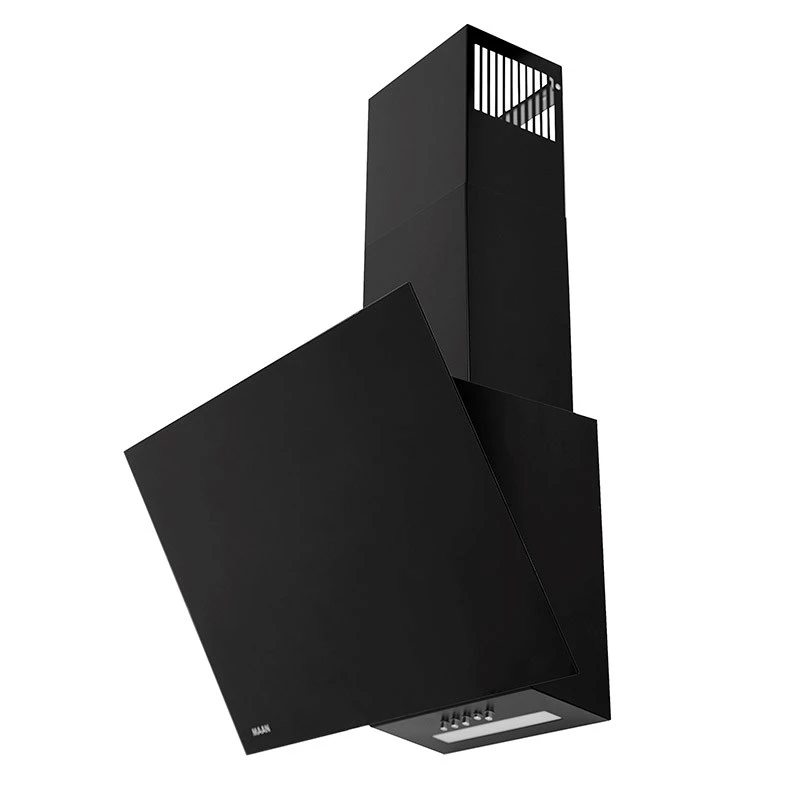

Wall-mounted hood MAAN Rodo Mini 60, 600 mm, charcoal filter, 310 m³/h, 65 dB

The MAAN Rodo Mini 60 wall-mounted kitchen hood has a 600 mm width and is designed for either ducted or recirculating installation. The hood features a steel and tempered glass housing, an integrated motor, a washable aluminium grease filter and an additional charcoal filter for recirculating operation. It offers three extraction speeds, rear-positioned push-button controls and a single 5 W lamp for workspace lighting. Annual energy consumption is 35 kWh and the appliance meets energy efficiency class C on the provided scale.

Advantages

The hood combines compact dimensions with up to 310 m³/h maximum extraction power, making it suitable for smaller kitchens. Washable aluminium grease filter and included charcoal filter simplify maintenance for recirculating use. Rear-mounted push-button controls and integrated lighting provide straightforward operation, while steel and tempered glass construction ensures a durable exterior.

Suitable for

• Small to medium-sized kitchens
• Ducted or recirculating installation
• Apartments and homes where compact wall-mounted hoods are required

Key specifications

• Width: 600 mm
• Maximum extraction power: 310 m³/h
• Number of speeds: 3
• Control type and position: Push buttons, rear
• Housing material: Steel and tempered glass
• Grease filter: Washable aluminium; charcoal filter included for recirculating mode
• Lighting: 1 × 5 W lamp, rear position
• Annual energy consumption: 35 kWh
• Energy efficiency class: C (on A+++ to D scale)
• Noise level range: approx. 49–62 dB depending on speed
• Extraction type: Ducted or recirculating

How to use

Install the hood on a suitable wall surface following the supplied user manual and safety instructions. Select ducted or recirculating configuration before installation and fit the charcoal filter when using recirculation. Use the rear push-button controls to choose one of three speeds and switch on the 5 W light as needed. Clean the aluminium grease filter regularly according to the manual; the filter is washable to maintain performance.

Recommendations

Do not install the hood without reading the instructions. For best performance, ensure ducting is as straight and short as possible when using ducted extraction, and clean the washable grease filter regularly. Replace the charcoal filter as recommended by the manufacturer for effective recirculation.
