Wall-mounted extractor Whirlpool AKR 559/3 IX, Aluminium filter, Noise level: N/A

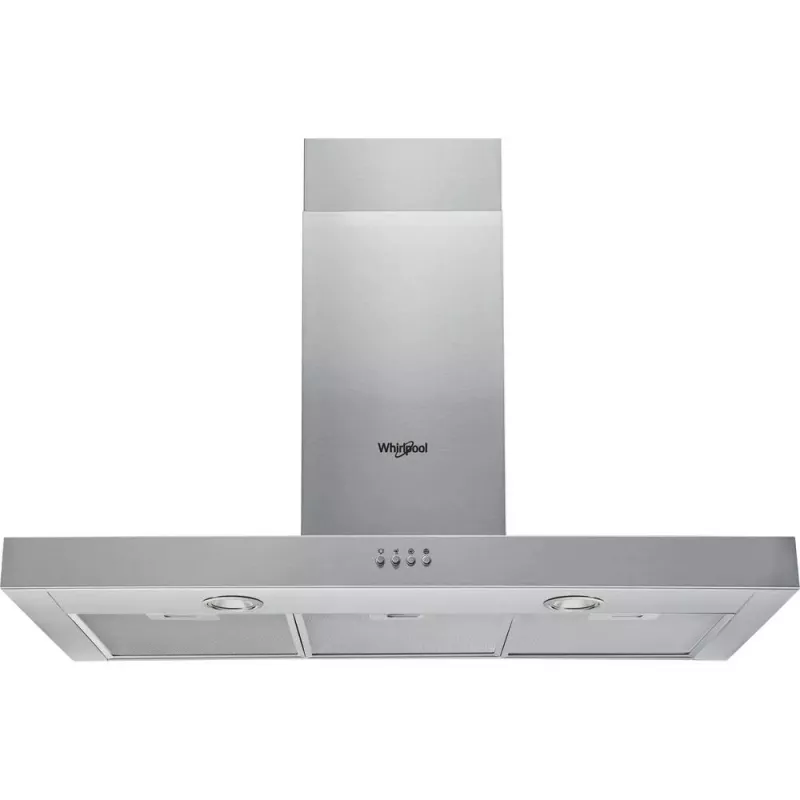

The Whirlpool AKR 559/3 IX is a wall-mounted extractor hood in stainless steel designed for domestic kitchens. It offers a maximum extraction capacity of 430 m³/h and supports both ducted and recirculating operation. The appliance is equipped with three washable aluminium grease filters and two integrated LED lights (3 W each). Annual energy consumption is 66.3 kWh and the appliance is classified on an energy efficiency scale from A+++ to D with an energy efficiency class of D and a fluid dynamic efficiency class E.

Advantages

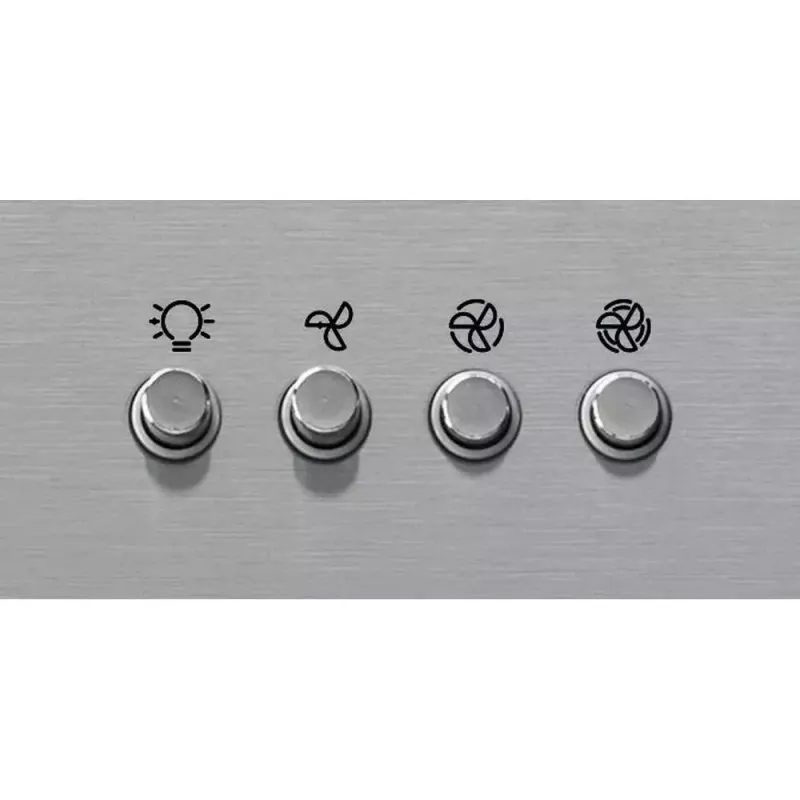

The unit combines a stainless steel finish with washable aluminium grease filters that are dishwasher-safe, simplifying maintenance. Dual-mode operation (ducted or recirculated) provides installation flexibility. Integrated LED lighting delivers efficient illumination while using significantly less energy than traditional bulbs. Mechanical controls and a built-in timer offer straightforward operation for daily cooking tasks.

Suitable for

• Medium to large domestic kitchens where a wall-mounted extractor is required
• Installations that need either ducted extraction to the outside or recirculation with a carbon filter
• Cooking areas that require durable, easy-to-clean grease filtration
• Homes prioritising energy-efficient LED lighting and simple mechanical control

Key specifications

• Maximum extraction capacity: 430 m³/h
• Operation modes: ducted and recirculating

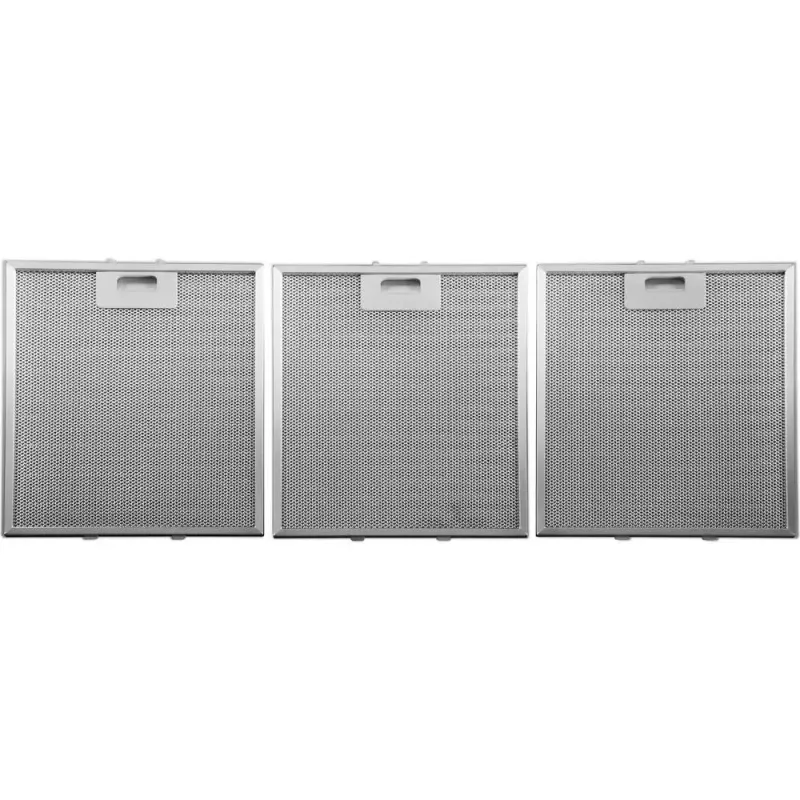

• Grease filters: three washable aluminium filters, dishwasher-safe

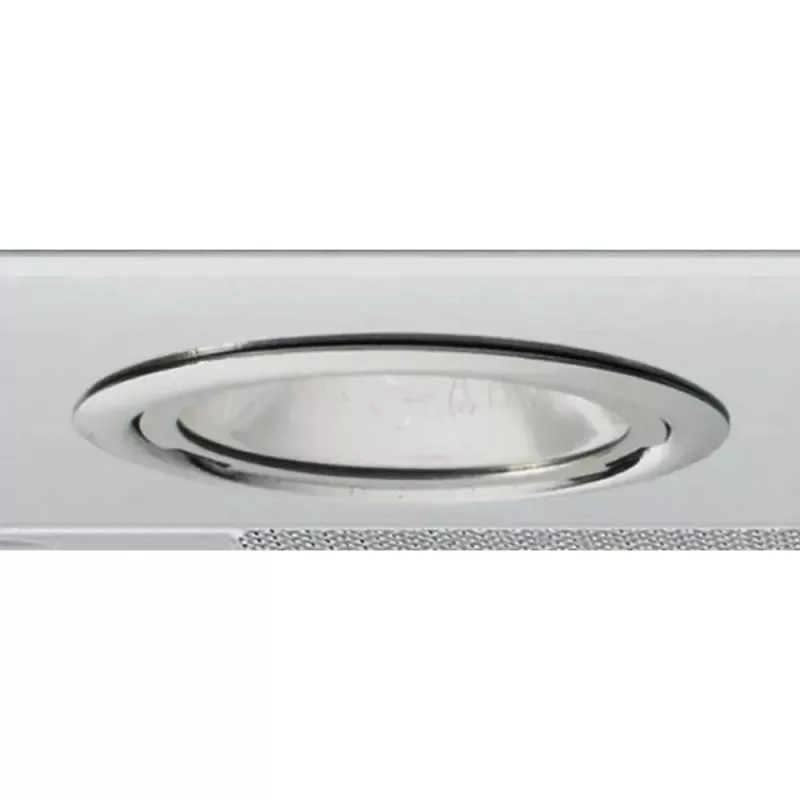

• Lighting: 2 × 3 W LED bulbs
• Noise level: 65 dB
• Fluid dynamic efficiency class: E
• Grease filtering efficiency class: C
• Exhaust connection diameter: 150 mm
• Exhaust location: top
• Annual energy consumption: 66.3 kWh
• Energy efficiency class: D
• Product colour: stainless steel
• Weight: 18.3 kg

How to use

Mount the hood on a suitable wall surface according to the supplied installation instructions, ensuring correct alignment of the top exhaust connection if using ducted extraction. If recirculating operation is chosen, fit the carbon filter in addition to the aluminium grease filters. Use the mechanical control panel to select the desired fan speed and to set the timer. Switch on the LED lights to illuminate the cooking surface. Regularly check and clean the aluminium grease filters; they are dishwasher-safe and should be reinstalled dry. Replace the carbon filter as recommended by the manufacturer when used in recirculating mode.

Recommendations

For optimal performance and reduced noise, ensure the ducting run is as short and straight as possible when using ducted extraction. Clean aluminium grease filters at regular intervals depending on cooking frequency and replace carbon filters according to usage; this maintains extraction efficiency and helps control cooking odours.
