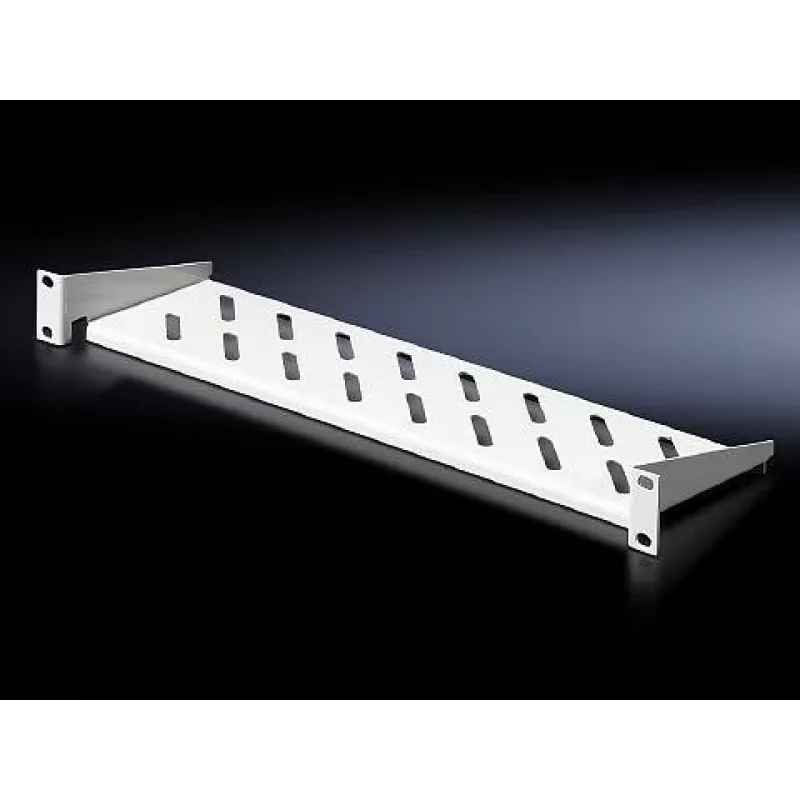

Wall-mounted enclosure accessory Rittal DK 7119.140 — depth 140 mm, max load 10 kg

Rittal DK 7119.140 is a wall-mounted enclosure accessory designed to support 482.6 mm (19-inch) single-level components with a depth of 140 mm. Constructed from sheet steel with a RAL 7035 spray finish, this shelf provides a compact mounting solution for electrical and electronic enclosures and components in control rooms, server closets, and industrial cabinets. The unit weighs 850 g and offers a static surface load capacity of 10 kg, enabling secure placement of small devices and accessories while saving floor space.

Advantages

The shelf's sheet steel construction and industrial spray finish ensure mechanical robustness and resistance to typical indoor installation environments. Its standard 19-inch width makes it compatible with a wide range of rack-mount and enclosure components, while the 140 mm depth provides a shallow, space-efficient profile. The specified 10 kg static load rating and the low unit weight simplify planning for installations where limited payload and secure support are required.

Suitable for

Key specifications

How to use

Install the shelf on a compatible wall-mounted enclosure or inside a 19-inch cabinet following the enclosure manufacturer's mounting points and fasteners. Position the shelf at the required height, align it with the mounting rails or holes, and secure it using appropriate screws or bolts rated for the cabinet and load. Place components centrally on the shelf to maintain balance and avoid exceeding the 10 kg static load rating. Ensure cabling and ventilation clearances are preserved for connected devices.

Recommendations

Use the shelf for compact, low-weight devices and verify that combined weight of mounted items does not exceed 10 kg. In applications with vibration, dynamic loads or elevated temperatures, select a mounting location and fasteners suitable for those conditions and consult installation guidelines for the enclosure system.
