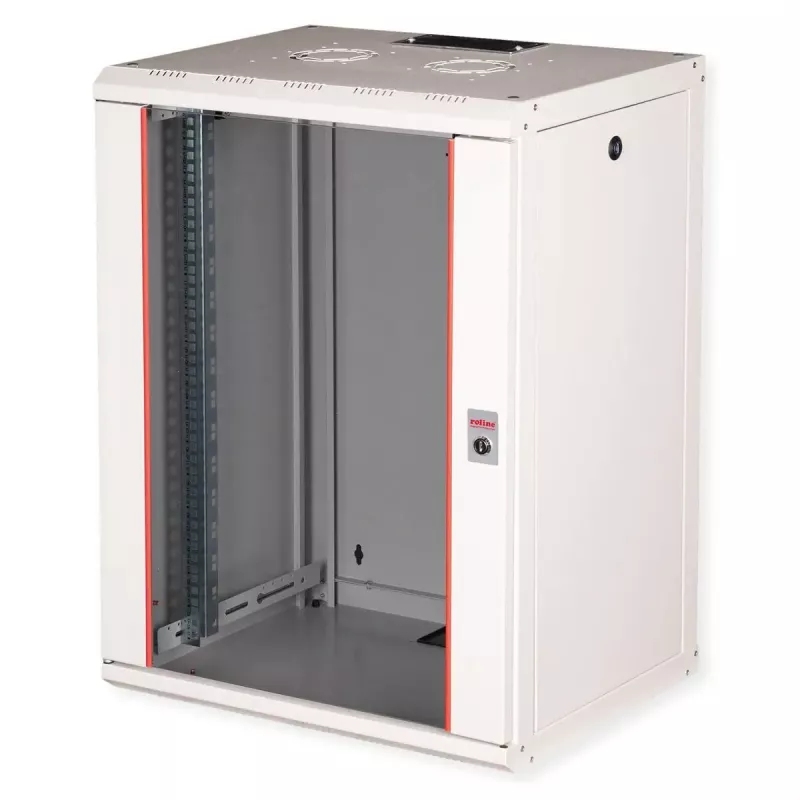

Wall-mounted 19 inch rack cabinet ROLINE Pro 16U 600x450 mm, grey, key lock, IP20

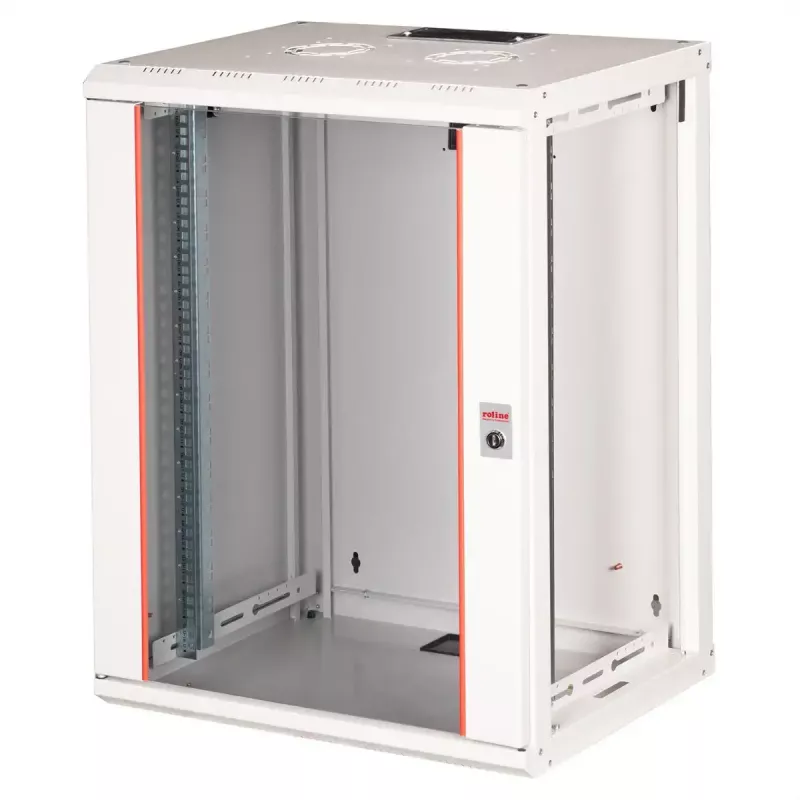

The ROLINE Pro 16U wall-mounted 19" rack cabinet (600 x 450 mm, grey) is designed for flexible network cabling and indoor equipment installations. It provides 16U of 19" mounting space on galvanised profile rails that are height-standardised and adjustable in depth. The enclosure includes a slide-on cable inlet in the top with a foam seal, punched cable entries with plastic covers on the rear panel and base plate, and a roof area prepared for an optional fan module. The cabinet is constructed from robust sheet steel up to 1.5 mm thick and is powder-coated in RAL 7035 grey. Side panels and the front door are modular, lockable and removable to improve accessibility. Wall mounting is quick: the rear panel is first fixed to the wall and then attached to the housing. Optional levelling feet or castors allow conversion to a free-standing cabinet.

Advantages

The cabinet supports standard 19" equipment up to 16U and features depth-adjustable, galvanised profile rails for flexible equipment placement. Cable management is simplified by the top slide-on inlet with foam seal and multiple punched entries with covers. The metal construction with powder-coating ensures mechanical durability and a neat finish, while removable and lockable side panels and front door add accessibility and basic physical security. Mounting options include fixed wall installation and conversion to a free-standing unit using optional feet or castors.

Suitable for

• Small server rooms and IT closets
• Telecom and network distribution points
• Rack-mount network switches, patch panels and small servers
• Indoor installations where IP20 protection is sufficient

When it may not be suitable

This cabinet is designed for indoor use and has an IP20 rating, so it is not suitable for outdoor locations or environments requiring dust-tight or water-resistant enclosures. It is also intended for relatively compact deployments; larger equipment with greater depth or higher U requirements will need a bigger rack or a full-size floor cabinet.

Key specifications

• Rack units: 16U (19" standard)
• External footprint (WxD): 600 x 450 mm
• Material: sheet steel, up to 1.5 mm thickness
• Finish: powder-coated, grey (RAL 7035)
• Protection rating: IP20 (indoor use)
• Mounting rails: galvanised, 19" profile rails, adjustable depth

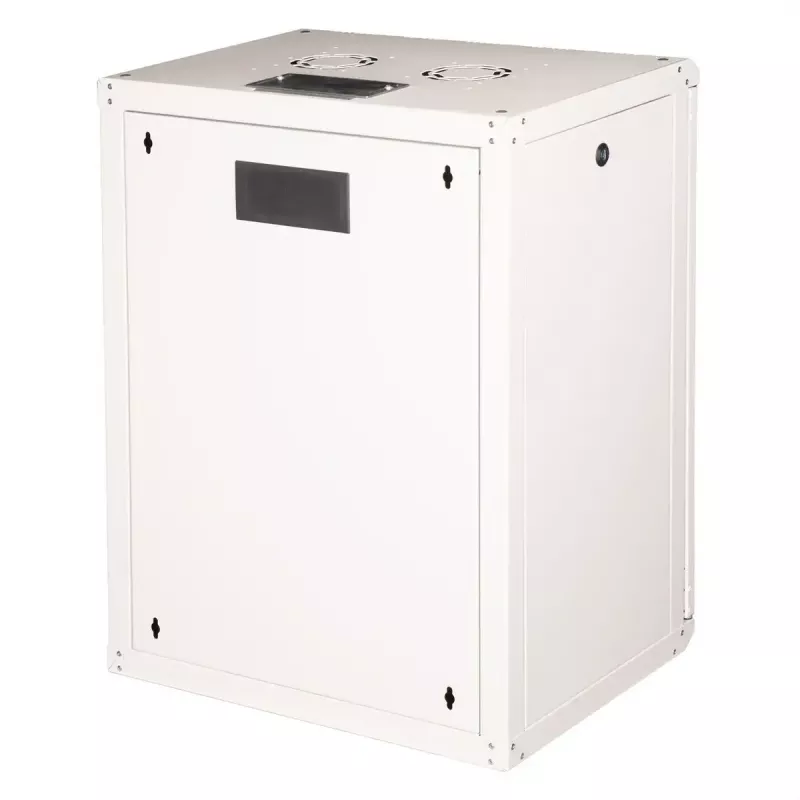

• Cable entries: top slide-on inlet with foam seal; punched rear and base entries with plastic covers

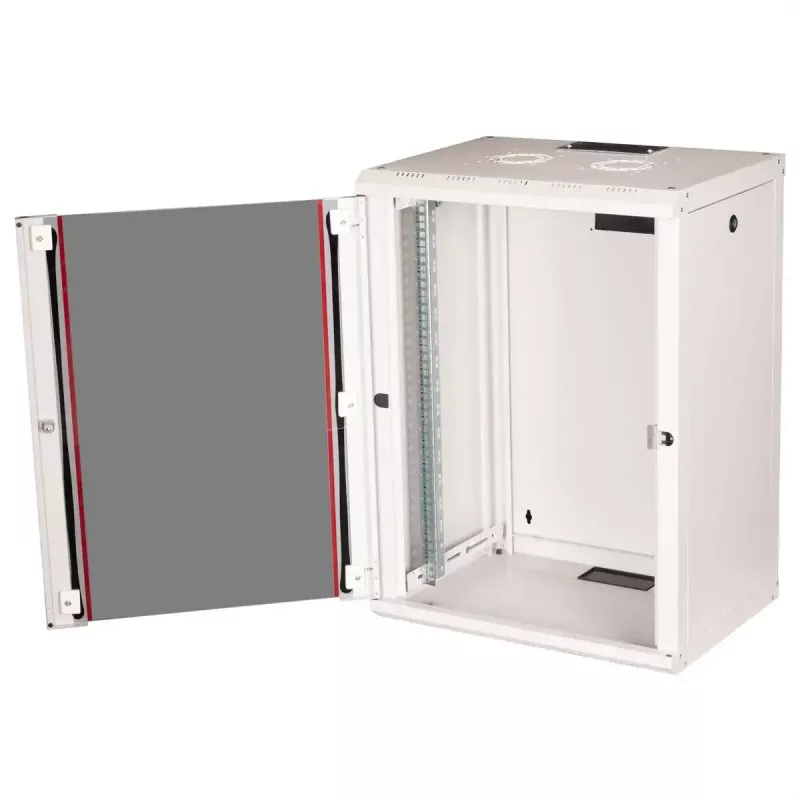

• Doors and panels: removable, lockable front door and removable side panels

How to use

Secure the rear mounting panel to a suitable load-bearing wall using appropriate fasteners. Attach the cabinet housing to the mounted rear panel. Adjust the depth of the 19" profile rails to match the depth of the equipment, then mount patch panels, switches or other rack devices in the 16U space. Route cables through the top slide-on inlet or the punched entries and close the plastic covers to protect cable openings. Install optional fan modules in the prepared roof area if additional ventilation is required. For a free-standing setup, fit optional levelling feet or castors according to the manufacturer’s instructions.

What to consider before purchase

• Ensure 16U and the 600 x 450 mm footprint provide sufficient rack space and depth for your devices.
• Verify that IP20 protection is acceptable for your installation environment (indoor use only).
• Check the maximum weight capacity and wall fixing requirements for safe mounting.
• Decide whether optional accessories (fan module, levelling feet or castors) are required for your setup.

Recommendations

Place heavier equipment lower in the rack to maintain stability, use the cable entry points and covers to organise cabling, and consider adding a fan module for active cooling if devices generate significant heat. Lock the front door and side panels where basic physical security is necessary.
