Wall Mount Ultron WM200 88.9 cm (35 inch) Black

The Ultron WM200 wall mount fixes flat-screen TVs to the wall and allows users to set an optimal viewing position. It is compatible with screens from 23 to 60 inches (up to 35 kg) and supports VESA patterns up to 400 x 400 mm. The bracket offers a slim profile with an adjustable distance from the wall between 7.2 cm and 45 cm.

Advantages

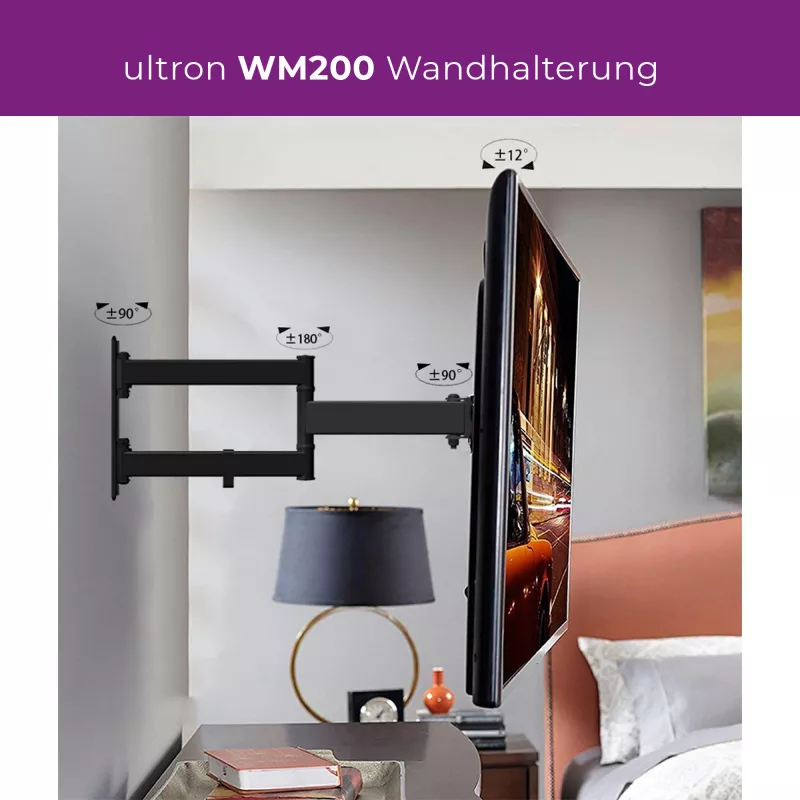

The mount provides tilt adjustment from -12° to 12° and rotation up to 90°, enabling precise alignment for different seating arrangements. It supports a wide range of VESA standards (75 x 75 mm to 400 x 400 mm) and a maximum weight of 35 kg, making it suitable for most 23–60" flat screens. The design is compact and finished in black, and typical installation can be completed in about 30 minutes.

Suitable for

• Mounting a single flat-screen TV (23–60", up to 35 kg)
• Living rooms, bedrooms, offices and meeting rooms
• Applications requiring tilt and swivel adjustments for better viewing angles

Key specifications

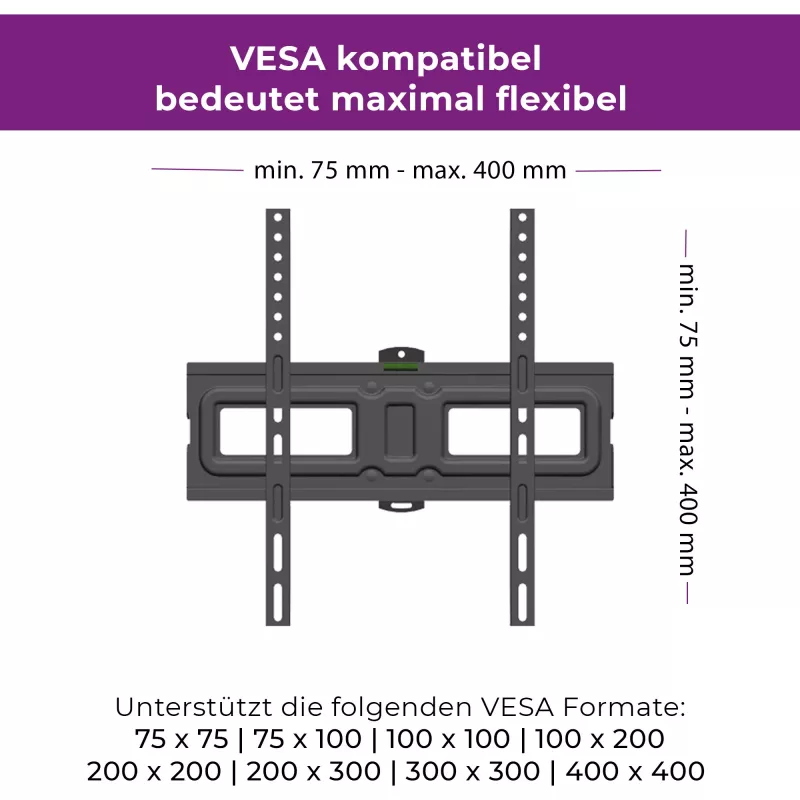

• VESA compatibility: 75 x 75 mm up to 400 x 400 mm
• Maximum weight capacity: 35 kg
• Maximum screen size: 35" (88.9 cm)
• Tilt range: -12° to 12°
• Rotation: up to 90°

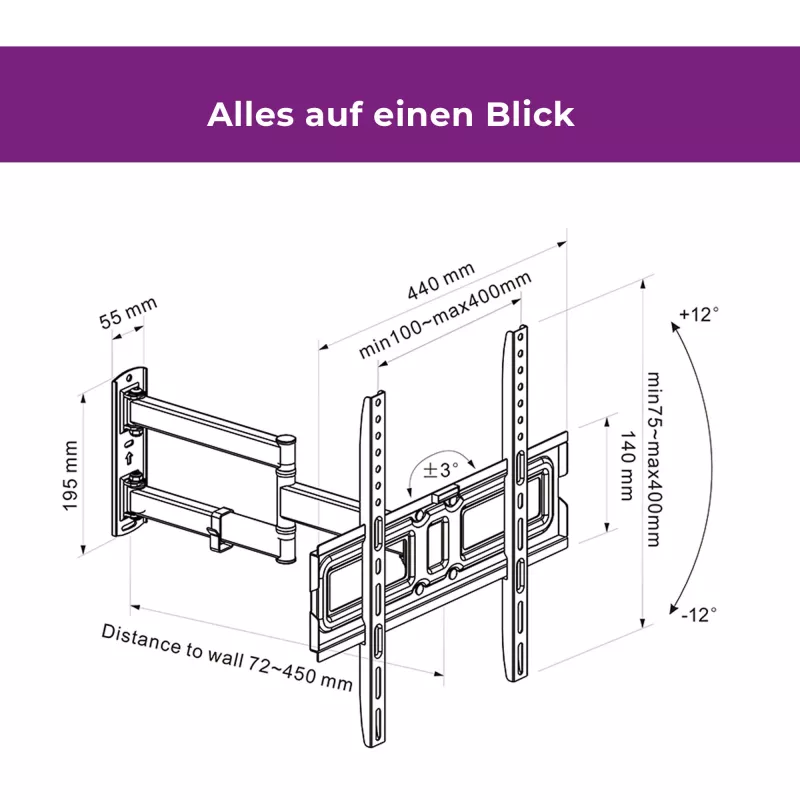

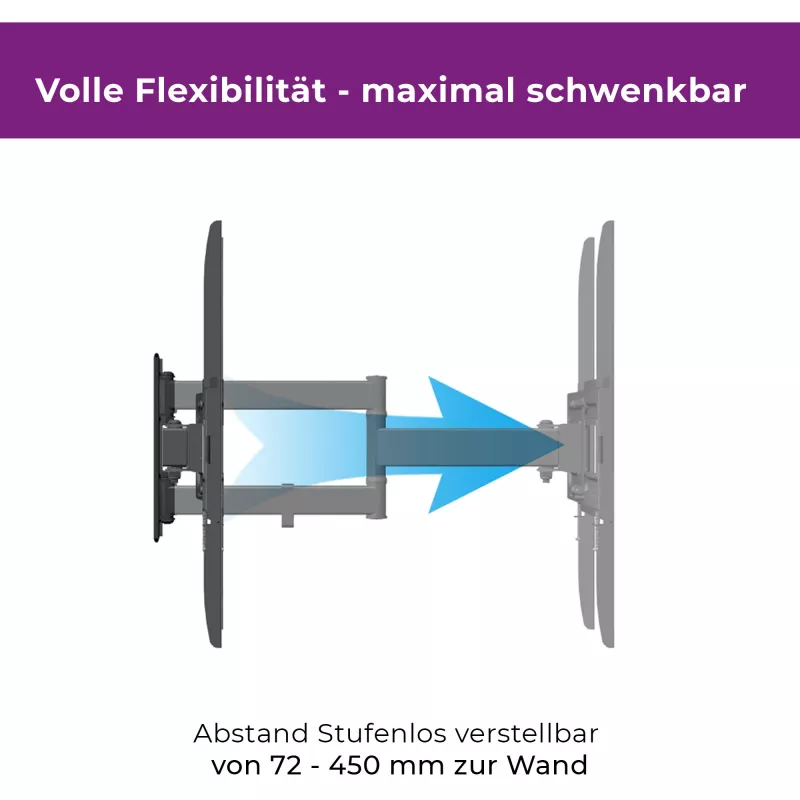

• Distance from wall: 7.2 cm – 45 cm
• Product colour: Black
• Product weight: 2.7 kg

How to use

Choose a suitable wall location and confirm the wall material can support the combined weight of the TV and mount. Mark and drill holes according to the mount's template, attach the wall plate securely, fix the TV brackets to the display using compatible VESA holes, then hang the display on the wall plate and tighten the fastening screws. Adjust tilt and rotation to obtain the desired viewing angle and verify that all fasteners are secure.

Recommendations

Use appropriate wall anchors for the wall type (concrete, brick, or stud); do not exceed the maximum weight of 35 kg; if unsure about installation, consider professional mounting services to ensure safe and correct attachment.
