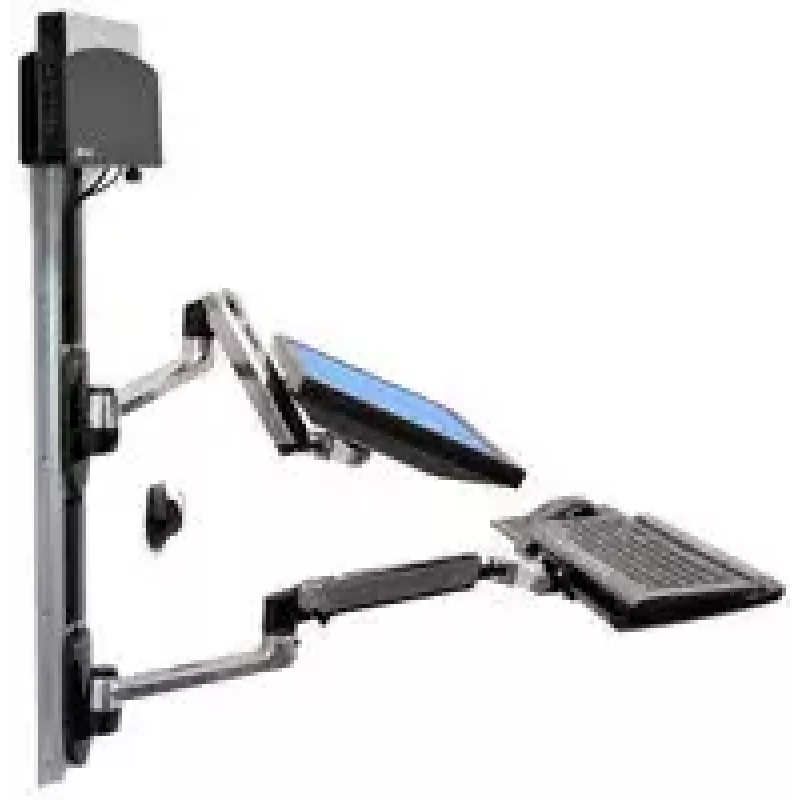

Wall Mount System Ergotron LX Series 68.6 cm (27 inch)

The Ergotron LX Series 68.6 cm (27") Wall Mount System is a compact, articulating wall-mounted workstation designed to support screens up to 27" and weights up to 9.1 kg. Constructed from polished aluminum and available in black or silver, the system accepts VESA mounting patterns 75x75 mm and 100x100 mm and integrates a small CPU holder and folding keyboard tray to create a complete wall-mounted workstation suitable for space-constrained environments.

Advantages

The LX Wall Mount System provides height adjustment and a wide tilt range that allow independent positioning of the display and keyboard, improving ergonomics and maintaining clear sightlines. Its articulating arms offer full tilt and pan capability plus 33 cm of vertical adjustment, while extension ranges let the display and keyboard be pushed close to the wall when not in use. The keyboard tray includes a back-tilt that supports a neutral wrist position during typing, and the mechanism has been tested to pass Ergotron’s 10,000-cycle motion test for reliable, long-term height adjustment.

Suitable for

• Clinical and patient-facing workstations where space is limited
• Offices, kiosks, or retail environments requiring fold-away displays
• Home offices and shared workspaces needing compact ergonomic solutions
• Areas where bi-focal viewing and adjustable sightlines are important

Key specifications

• Screen size supported: up to 27" (68.6 cm)
• Maximum load capacity: 9.1 kg
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Tilt range: -85° to 85°
• Height adjustment: up to 33 cm (13")
• LCD extension: up to 64 cm (25") from wall
• Keyboard tray extension: up to 89 cm (35") from wall
• Storage depth (keyboard folded): approx. 9 cm (3.5") from wall
• Storage depth (LCD arm folded): approx. 13 cm (5.3") from wall
• Materials: polished aluminum construction

How to use

Mount the LX Wall Mount System to a suitable wall surface according to the included installation instructions, ensuring wall anchors or studs match the load requirements. Attach the display to the VESA plate and the small CPU holder as needed. Use the articulating arms to set the display height, tilt, and pan; extend the display and keyboard to comfortable viewing and typing positions, or fold them back toward the wall for storage. Adjust the keyboard tray back-tilt to obtain a neutral wrist angle while typing. Regularly check mounting hardware and moving joints for secure fit and smooth operation.

Recommendations

Confirm the combined weight of the screen and accessories does not exceed 9.1 kg and use appropriate wall-mounting hardware for the wall type. For ergonomic setup, position the display so the top third of the screen is at or slightly below eye level and adjust keyboard tilt to keep wrists neutral. Periodic inspection and simple maintenance of pivot points will help maintain smooth motion and long-term performance.
