Wall Mount Chief Fusion Black Model FCAXV1U

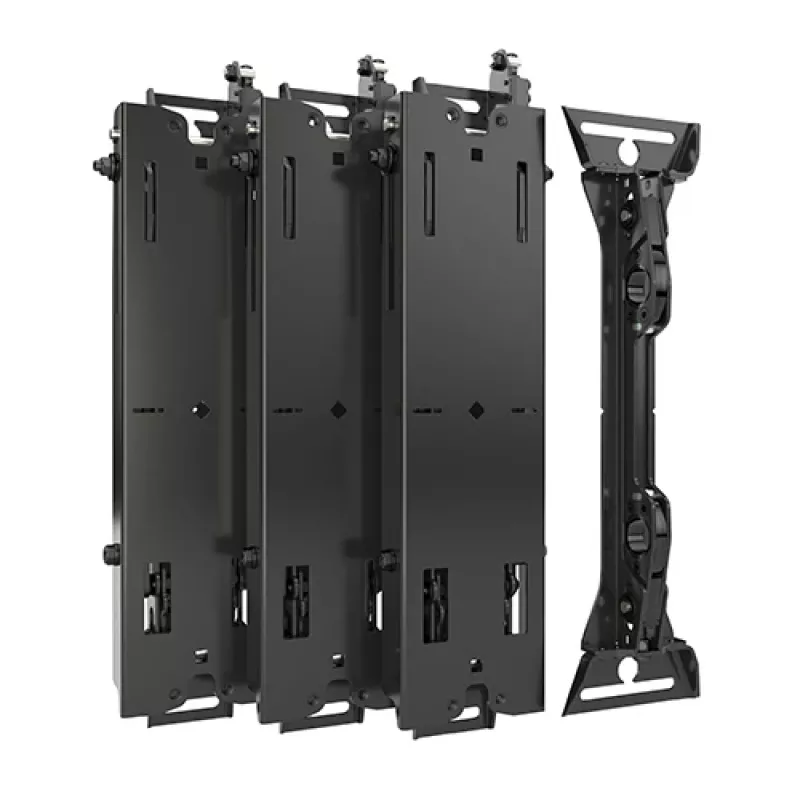

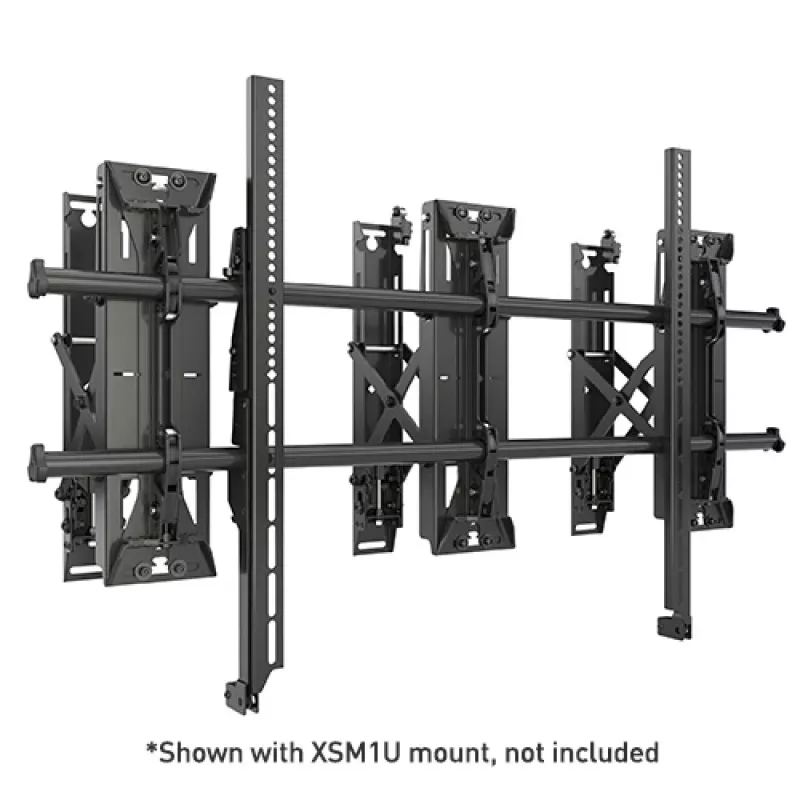

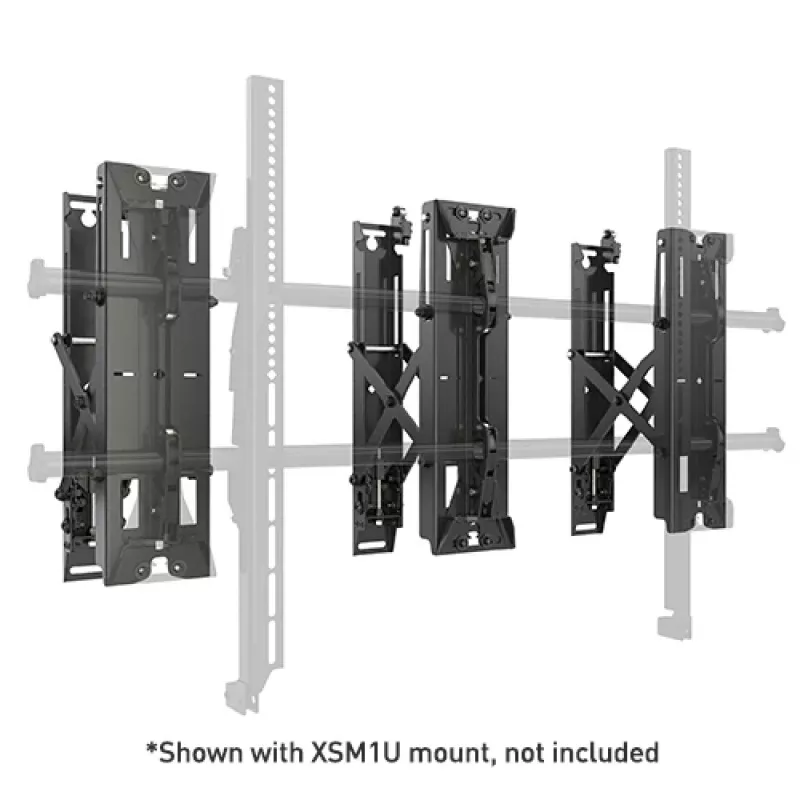

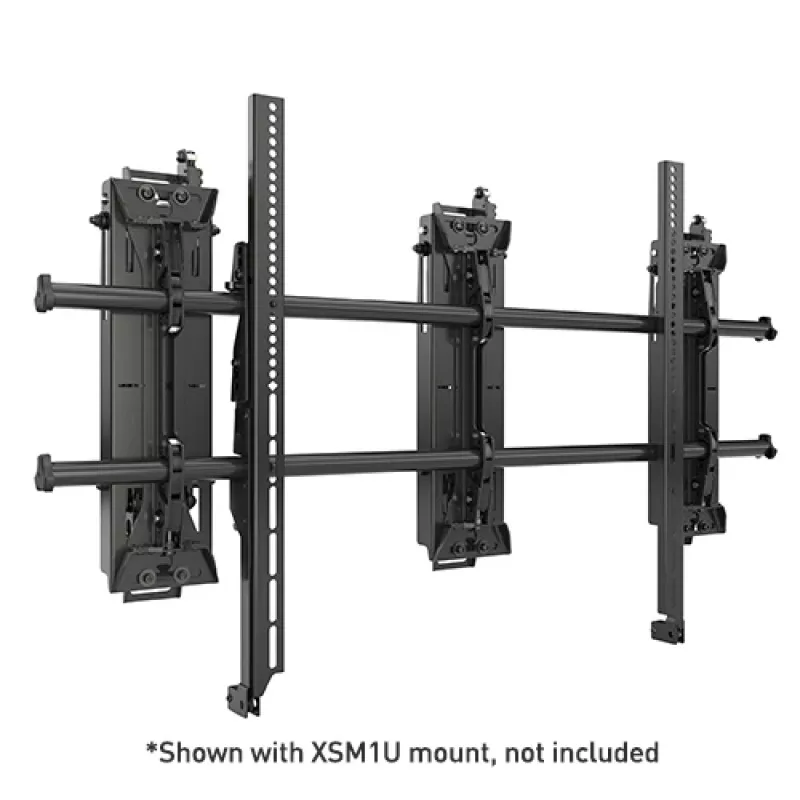

The Fusion Extra-Large Pull Out Accessory extends compatible Chief Fusion wall mounts to provide additional extension from the wall. Designed for use with Fusion Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, this accessory adds up to 11.54" (293 mm) of extension and works with display mount models XSM1U and XTM1U. It can be combined with Chief storage solutions such as the PAC526 in-wall box or the CSPR on-wall component storage panel to secure AV equipment behind the display.

Advantages

The accessory increases reach from the wall by 11.54" (293 mm) while maintaining compatibility with existing Fusion Extra-Large series mounts. It provides a straightforward way to create additional clearance for cables, connectors and AV components and is designed to integrate with Chief storage options for concealed equipment installation.

Suitable for

• Installing displays that require extra extension from the wall
• Creating clearance for rear connectors, cables and ventilation

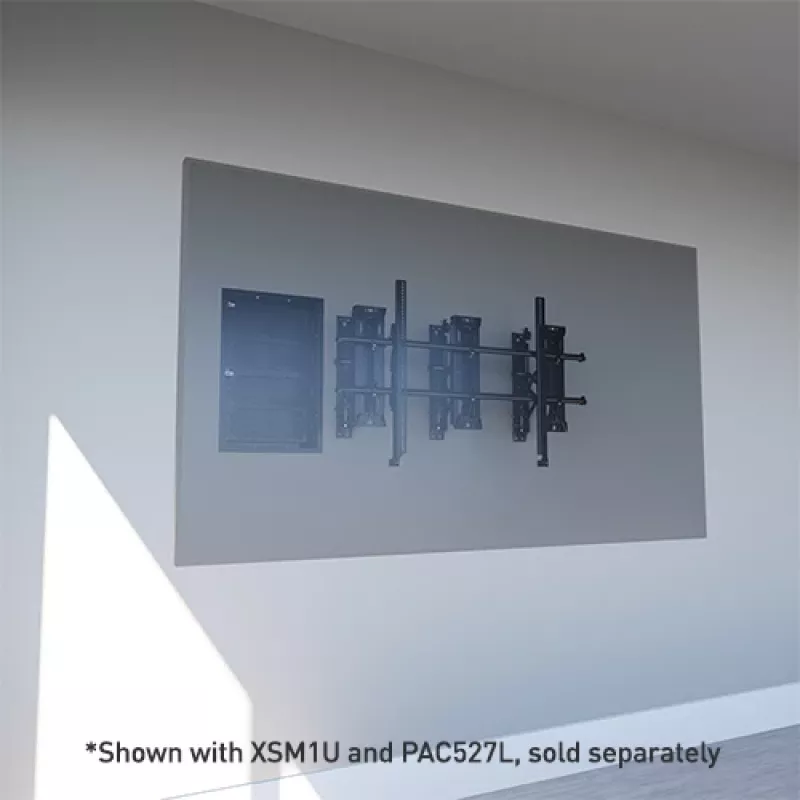

• Integrating with in-wall or on-wall AV storage solutions (PAC526, CSPR)

Key specifications

• Extension: up to 11.54" (293 mm)
• Compatible mount models: XSM1U, XTM1U
• Series compatibility: Fusion Extra-Large Micro-Adjustable Fixed and Tilt

How to use

Attach the Pull Out accessory to a compatible Fusion Extra-Large mount following Chief's installation instructions. Ensure the main mount (XSM1U or XTM1U) is securely fastened to the wall and that the accessory is properly engaged to provide the additional extension. If using storage options, install the PAC526 or CSPR according to their respective instructions and route cables before finalizing the display attachment.

Recommendations

Use this accessory with compatible Fusion Extra-Large mounts only and follow all weight capacity, mounting and safety guidelines provided by Chief. Verify clearance and cable routing before final installation to ensure safe operation and service access.
