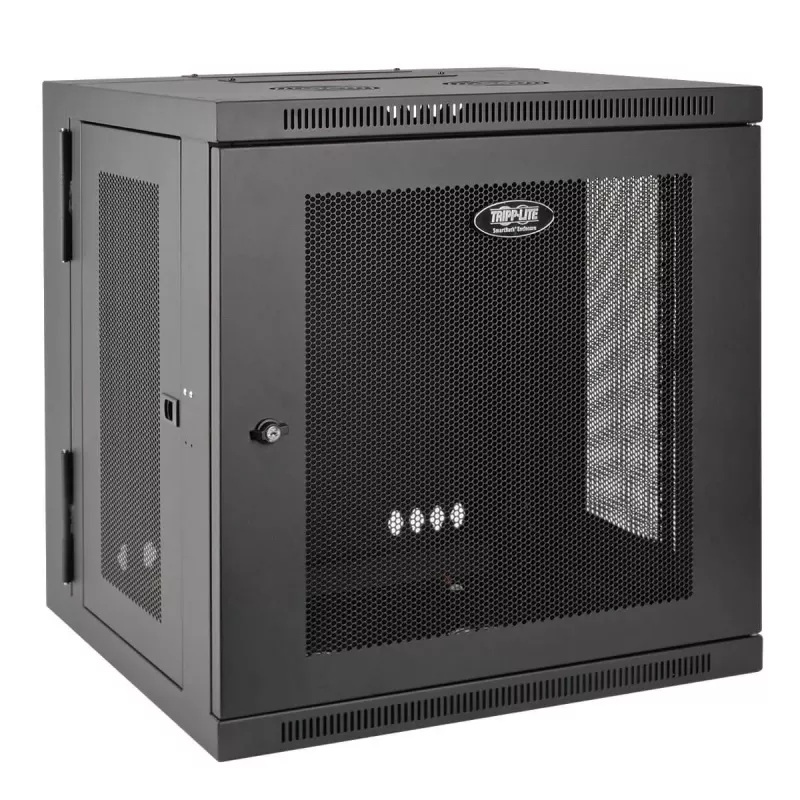

Wall-mount 12U Rack Enclosure Eaton SRW12USDP — 600.2×647.7×636.5 mm, IP20, black

The Eaton SRW12USDP SmartRack 12U UPS-depth wall-mount rack enclosure is built to house EIA-standard 19-inch equipment in locations with limited floor space. Constructed from heavy-duty steel with a black powder-coated finish, the cabinet supports up to 200 lb (90.7 kg) and provides IP20 protection. Its dimensions are approximately W 600.2 × D 647.7 × H 636.5 mm, and it is suitable for network switches, UPS systems and other rack-mount devices that fit 12U height and UPS-depth requirements.

Advantages

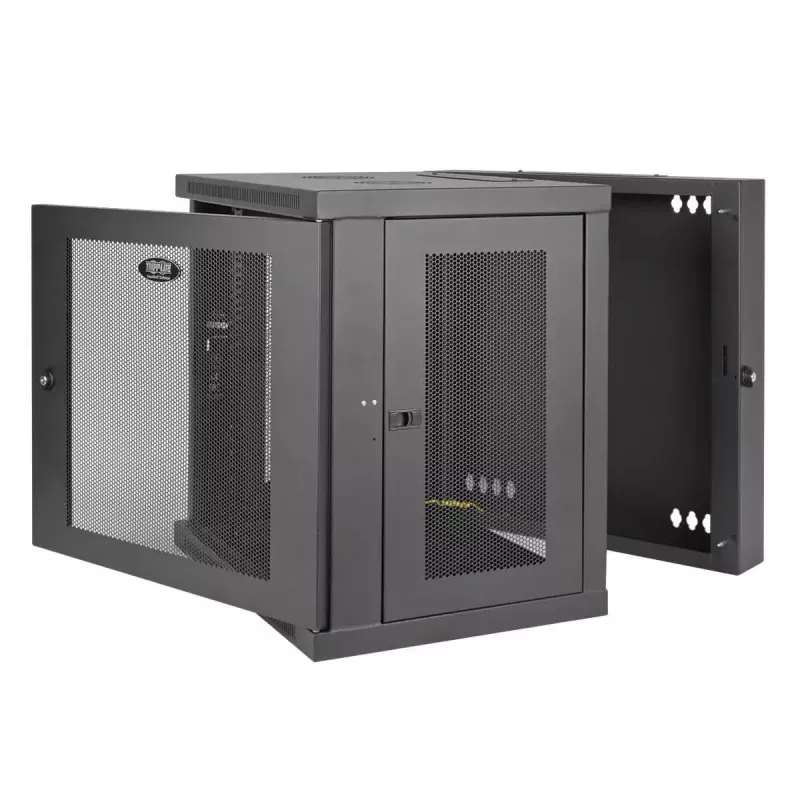

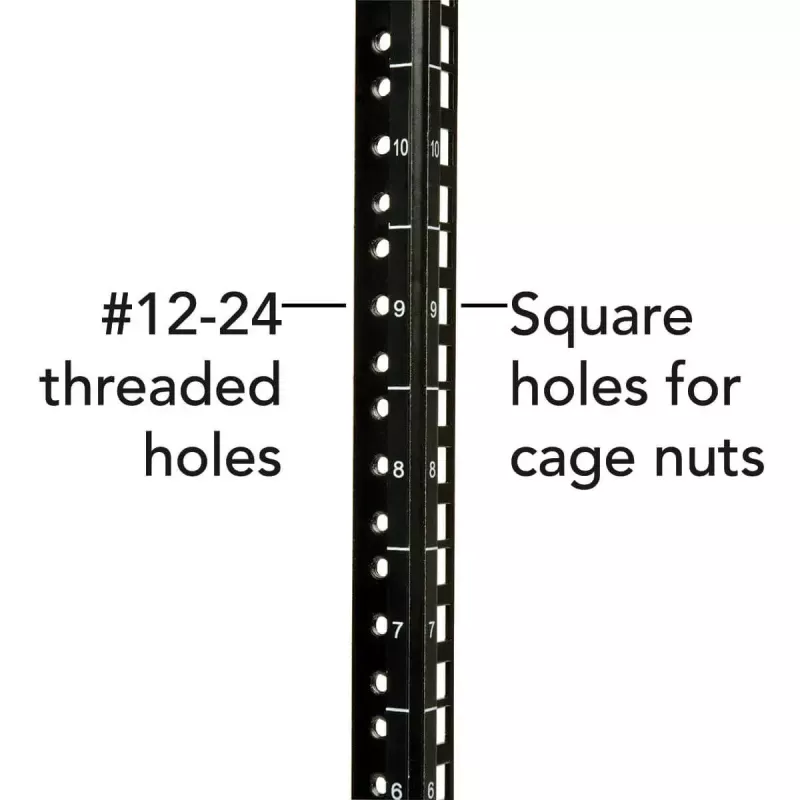

The enclosure swings away from the wall on a sturdy hinge for easy rear access during installation and maintenance. Vented front, top, bottom and removable side panels enable free airflow to help keep equipment cool. Doors and side panels lock to help prevent tampering or theft, and the reversible door design allows left- or right-hand opening by rotating the cabinet 180° before mounting. Numbered rack spaces, square and 12-24 threaded mounting holes, and adjustable vertical rails (in 7/8-inch increments) simplify equipment installation and support devices up to 24.5 inches deep. The cabinet ships fully assembled and can be wall-mounted or fitted with an optional caster kit (SRCASTER) for mobility.

Suitable for

• Network wiring closets and telecom edge locations
• Retail outlets and classrooms with limited floor space
• Small server or UPS installations requiring 12U, UPS-depth rack space
• Back offices and IT closets where secure, ventilated housing is needed

Key specifications

• Model: Eaton SRW12USDP
• Rack capacity: 12U
• External dimensions (W×D×H): 600.2 × 647.7 × 636.5 mm
• Maximum load capacity: 200 lb (90.7 kg)
• Depth support: up to 24.5 in (adjustable vertical rails)
• IP rating: IP20
• Weight: 28.8 kg
• Colour: Black (powder-coated steel)

How to use

Mount the fully assembled cabinet to a suitable wall structure using appropriate fasteners for the wall type and the cabinet weight. Rotate the cabinet 180° before mounting if you require the door to open to the opposite side. Route cables through the top or bottom ports and secure equipment to the numbered vertical rails using the provided square or 12-24 threaded holes; adjust the rails in 7/8-inch increments to accommodate device depth up to 24.5 inches. Lock the front door and side panels after installation to protect equipment, and allow clearance for ventilation around the vented panels.

Recommendations

For reliable installation, ensure the mounting wall can support the cabinet and the combined weight of installed equipment. Maintain clearance for airflow, and consider using the optional SRCASTER caster kit if mobile use is required. Regularly check locks and vents and follow manufacturer guidelines for UPS and battery installations.
