Wall Lighting Brennenstuhl 1173740003 2.1 W 4000 K IP65 Grey

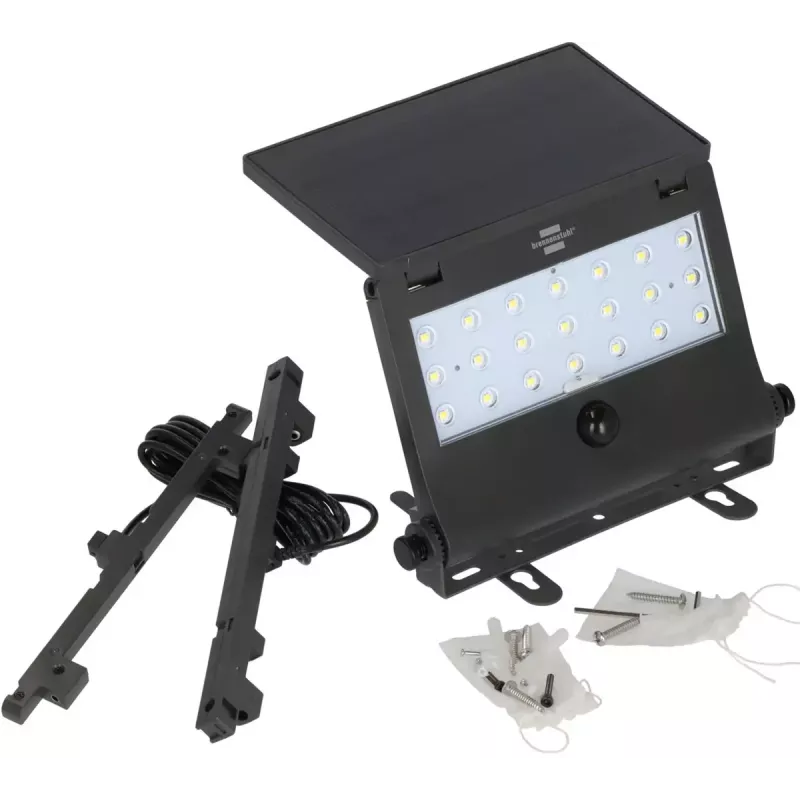

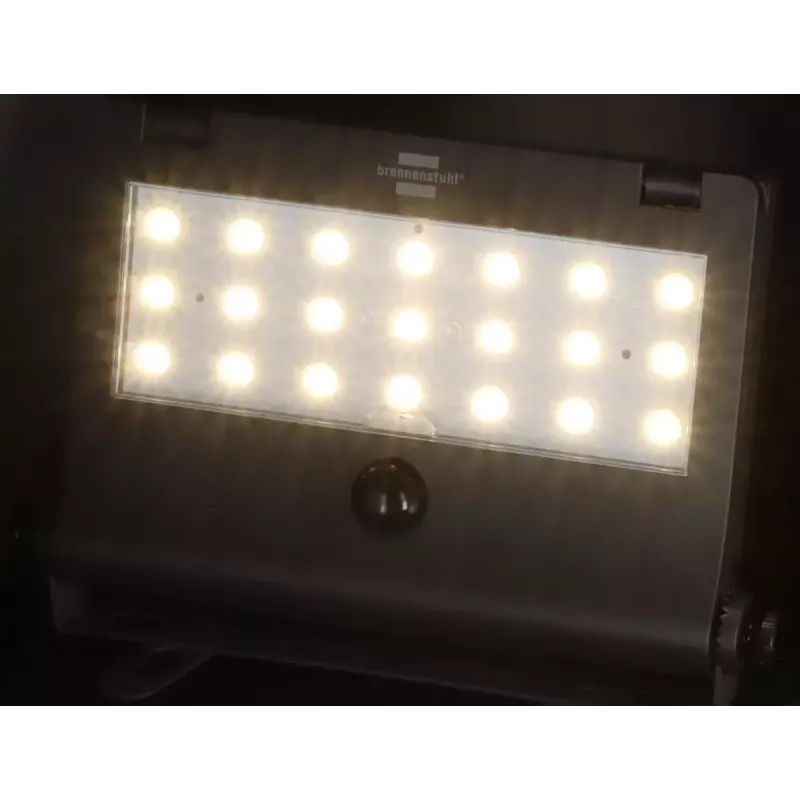

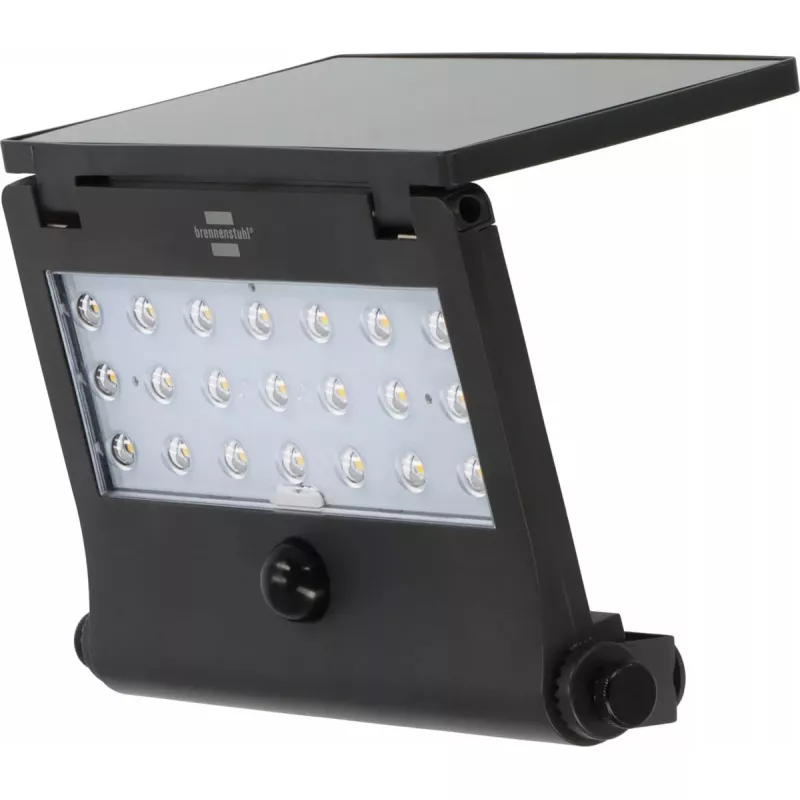

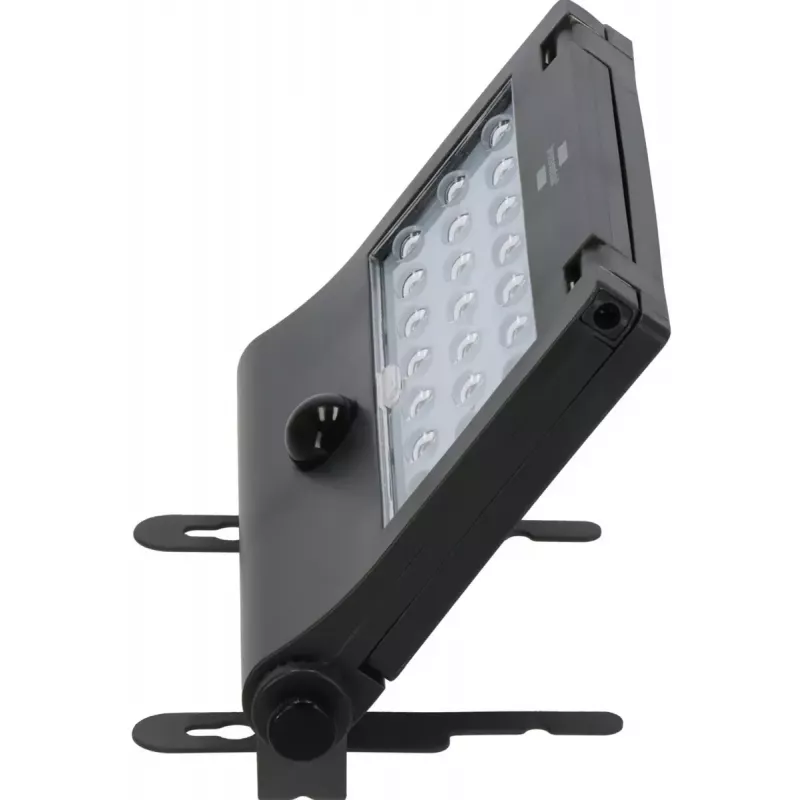

The Brennenstuhl Wall Lighting 1173740003 is a solar-powered LED security light with a built-in infrared motion detector. It combines a monocrystalline solar module with integrated overcharge and deep-discharge protection. The solar panel can be mounted on top of the fixture or placed separately and connected with the included 3 m cable. Integrated feet allow upright placement for portable use, for example when camping. The motion sensor covers a 120° detection angle with a maximum range of 5 m. The outdoor wall light offers four light modes and provides up to 1000 lm at a colour temperature of up to 4000 K. Rated IP65 and finished in grey, the model is designed for outdoor use.

Advantages

The device uses monocrystalline solar cells and battery protection circuits to extend service life and ensure reliable charging and discharge behaviour. Flexible solar panel placement with a 3 m cable and the option to mount the unit upright increase installation and usage options. A 120° motion sensor with a 5 m range and four selectable lighting modes allow adaptation to different security and illumination needs. IP65 rating provides protection against dust and water for outdoor installation.

Suitable for

• Illuminating building façades and entrances
• Garden paths and driveways
• Temporary outdoor lighting while camping or at events
• Security lighting for small courtyards and patios

Key specifications

• Model: Brennenstuhl 1173740003
• Power consumption: 2.1 W (LED)
• Luminous flux: 1000 lm
• Colour temperature: 4000 K
• IP rating: IP65
• Solar panel: monocrystalline cells, external mountable with 3 m cable
• Motion sensor: infrared, 120° detection angle, up to 5 m range
• Light modes: M1 (1000 lm on motion 30 s); M2 (1000 lm on motion 30 s, then 250 lm for 30 s); M3 (1000 lm on motion 60 s, then 250 lm for 30 s); M4 (continuous ~2 h at 1000 lm)
• Colour: grey
• EAN: 4007123691715

How to use

Mount the light on a suitable outdoor surface or place it upright using the integrated feet. If required, fix the solar panel on the unit or install it separately on a sunny side and route the 3 m cable to the lamp. Ensure the solar panel is positioned for optimal sun exposure to charge the internal battery. Select the desired light mode (M1–M4) according to whether you need motion-activated or continuous illumination. The motion sensor will activate the light automatically when movement is detected within its 120°/5 m range.

Recommendations

For best performance, mount the solar panel where it receives direct sunlight for most of the day and avoid shading. Clean the solar panel periodically to maintain charging efficiency. For security applications, position the light to cover access points and pathways, observing the sensor’s 120° field and 5 m range when determining mounting height and angle.
