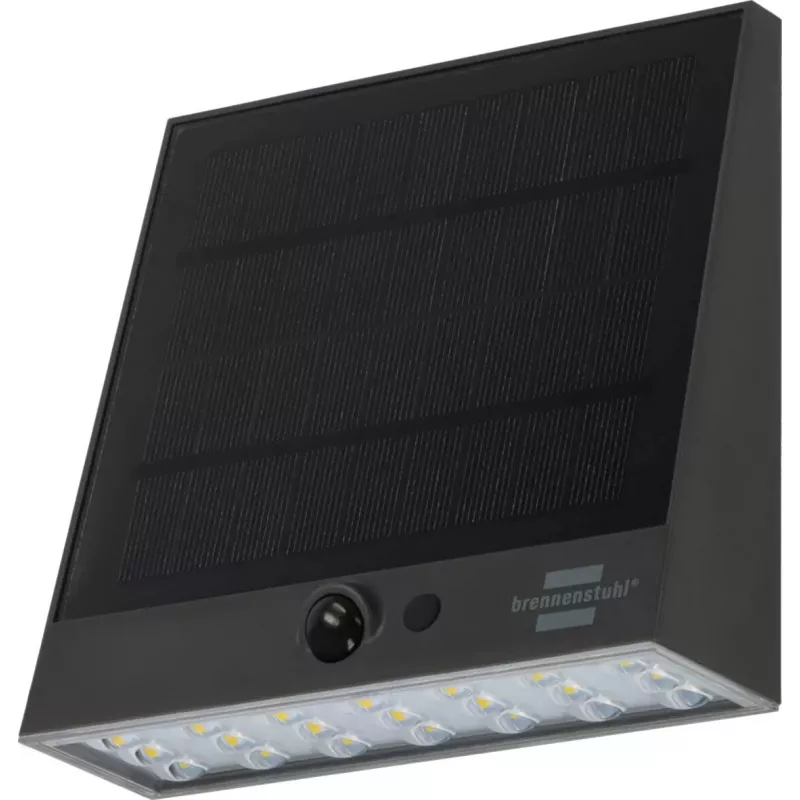

Wall Lighting Brennenstuhl 1173740002 2 W 4000 K 1000 lm IP54

The Solar LED Wall Light SOL 1000 Plana with infrared motion detector is a security-focused outdoor wall light with an integrated monocrystalline solar module and built-in overcharge and deep-discharge protection. It delivers up to 1000 lm output, operates at 2 W with a color temperature of 4000 K, and has an IP54 rating for weather resistance. The detector provides a 120° detection angle and a maximum range of 5 metres. The luminaire supports four operating modes to adapt light behaviour to different needs.

Advantages

The wall light combines solar charging with overcharge and deep-discharge protection to preserve battery life and ensure reliable operation. The integrated infrared motion sensor reliably detects movement within a 120° angle and up to 5 m distance. With four selectable modes (high-power motion boost to 1000 lm and several constant low-light settings) the unit offers flexible illumination patterns for security and routine outdoor lighting. The IP54 rating provides protection against dust and splashing water for outdoor installation.

Suitable for

• Outdoor wall mounting on porches, garages and façades
• Security and motion-activated illumination for entrances and pathways
• Ambient or accent lighting for outdoor seating and utility areas

Key specifications

• Brand: Brennenstuhl, MPN: 1173740002, EAN: 4007123691708
• Power: 2 W
• Luminous flux: up to 1000 lm
• Color temperature: 4000 K (neutral white)
• Protection class: IP54 (splash-proof, dust-protected)
• Motion sensor: infrared, 120° detection angle, max range 5 m
• Operating modes: M1 (on motion 30 s, 1000 lm); M2 (permanent 100 lm in darkness, on motion 30 s to 1000 lm); M3 (permanent 100 lm in darkness); M4 (permanent 250 lm in darkness)

How to use

Mount the Solar LED Wall Light to a vertical outdoor surface where it receives direct sunlight for reliable charging. Select the required operating mode (M1–M4) according to the desired behaviour: motion-triggered boost, permanent low-level lighting, or a higher permanent output. Ensure the sensor faces the area to be monitored and is installed at a height that gives the sensor an unobstructed detection zone up to 5 m. No external wiring is required thanks to the integrated solar module.

Recommendations

Place the lamp where the solar module gets maximum daily sunlight and avoid mounting in heavily shaded locations. Clean the solar panel regularly and keep the sensor area free from obstructions to maintain optimal detection and charging performance.
