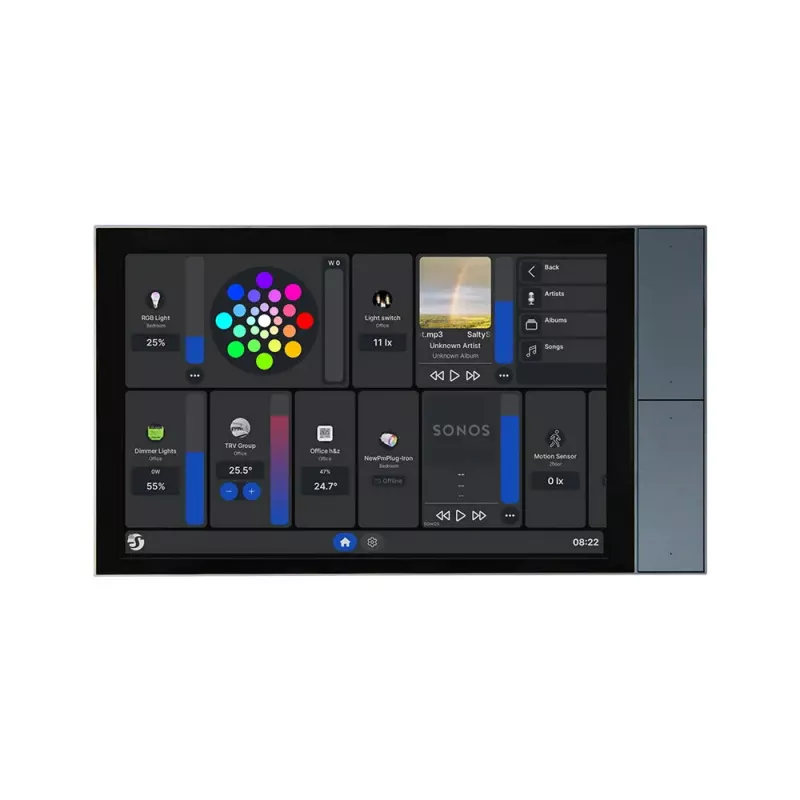

Wall display panel Shelly Wall Display XL — 10.1 inch capacitive touchscreen, 1280×752, Android, 1.8 GHz CPU, 2 GB RAM, 100–240V

Shelly Wall Display XL is a wired wall-mounted control and information panel with a 10.1" capacitive touchscreen (1280×752) running Android. Designed for permanent installation in a standard electrical wall box and powered from 100–240 V (50/60 Hz) with a maximum consumption of 15 W, the panel combines a touch interface, physical buttons and a built-in relay to control lights, appliances and scenes in homes or commercial spaces. The device includes a 1.8 GHz CPU, 2 GB of RAM and wireless connectivity options that enable local and cloud-based smart home integration through Wi‑Fi, Bluetooth, MQTT and Home Assistant.

Advantages

The Shelly Wall Display XL provides centralized control on a 10.1" HD capacitive display for fast, visual management of devices and scenes without relying solely on smartphones. Four customizable physical buttons offer immediate, app-free actions for common tasks, while the built-in relay enables direct switching of an appliance. Integrated power monitoring and compatibility with Shelly PM devices allow visualization of real‑time energy usage for informed decisions. Dual-band Wi‑Fi and Bluetooth connectivity together with support for MQTT and Home Assistant ensure flexibility for diverse smart-home ecosystems. The unit is designed for wall mounting in EU standard switch boxes and includes audio playback capabilities for media and notifications.

Suitable for

• Centralized control of lights, HVAC and scenes in private homes and apartments
• Room automation and HMI applications in offices, hotels and guest spaces
• Energy monitoring and visualization when paired with Shelly power meters
• Quick, physical control points for households with children or shared spaces
• Integration hubs for smart-home setups using Wi‑Fi, MQTT or Home Assistant

Key specifications

• Display: 10.1" capacitive touchscreen, resolution 1280×752
• Processor: 1.8 GHz CPU
• Memory: 2 GB RAM; Storage: 32 GB
• Power: 100–240 V AC (50/60 Hz), max consumption 15 W
• Connectivity: Dual-band Wi‑Fi (2.4 GHz & 5 GHz) and Bluetooth 5.4
• Built-in relay for switching appliances up to 1500 W
• Buttons: Four customizable physical buttons for quick actions
• Sensors: Proximity and ambient brightness (lux) sensors
• Audio: Integrated dual 2 W stereo speakers; Bluetooth audio support
• Software: Android-based interface; supports MQTT, Webhooks and Home Assistant

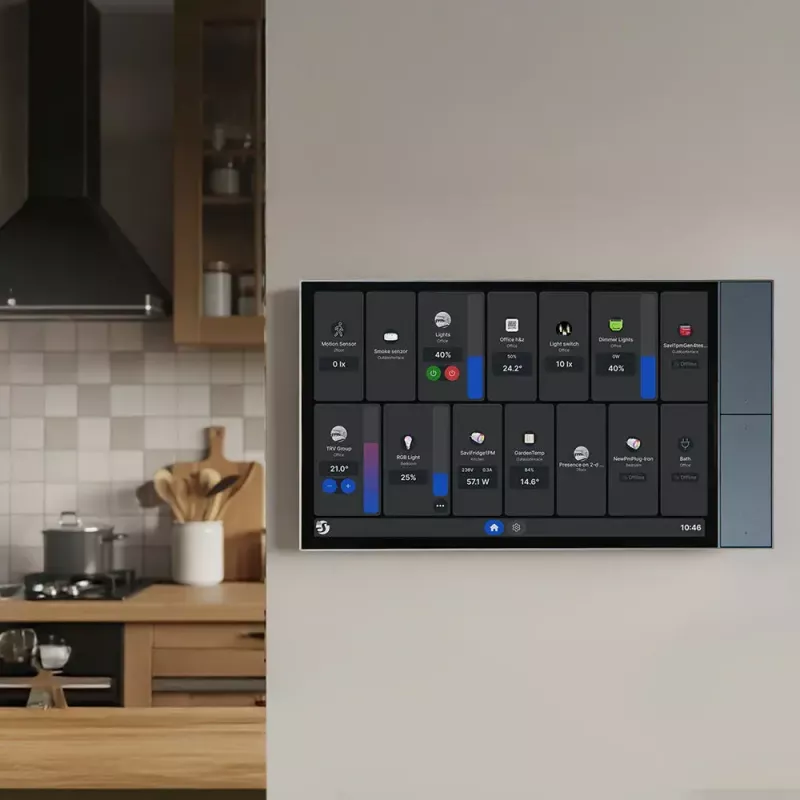

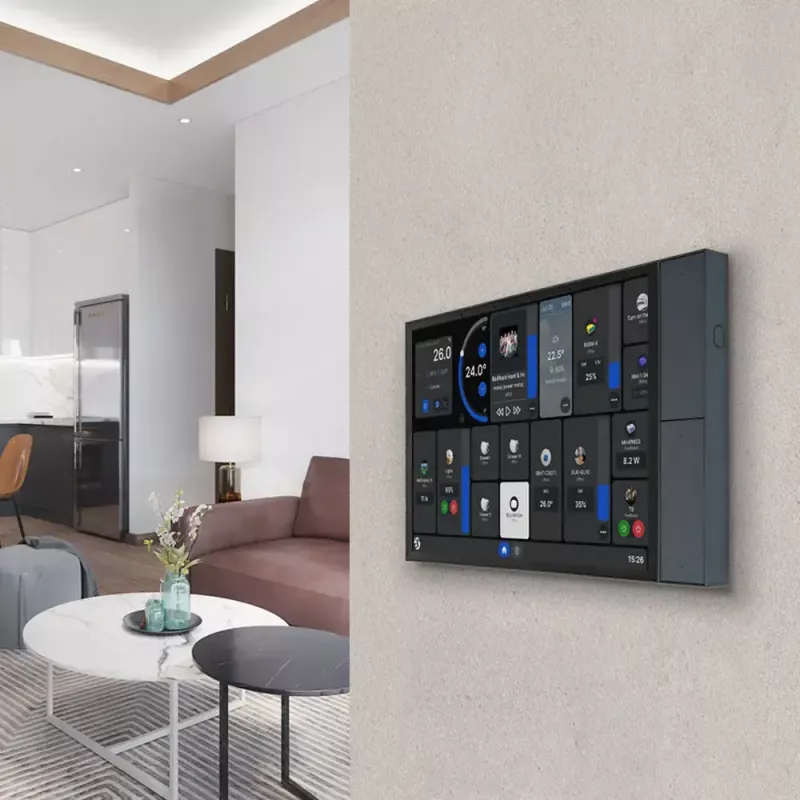

• Form factor: Wall-mount design compatible with EU standard switch boxes
• Available colors: Black, Light grey

How to use

Install the Shelly Wall Display XL into a compatible in-wall electrical box and connect to the building AC supply (100–240 V) following local electrical regulations. After powering on, follow on-screen setup to connect the panel to a Wi‑Fi network or pair via Bluetooth. Use the Android-based interface to add and group Shelly devices, configure scenes and assign functions to the four physical buttons. The built-in relay can be configured for direct control of a local load; power monitoring data becomes available when paired with Shelly PM devices or via supported integrations. Remote access and additional configuration are available through the Shelly Smart Control app or via integrations such as MQTT and Home Assistant.

Recommendations

Mount the display at a comfortable height for daily interaction and follow electrical safety standards when connecting to mains power. Assign the physical buttons to frequently used actions (for example, all-lights off, scene activation, or door unlock) to provide fast, app-free control. For accurate energy monitoring, pair the panel with compatible Shelly power meters and keep firmware up to date to ensure stable integration with third-party systems.
