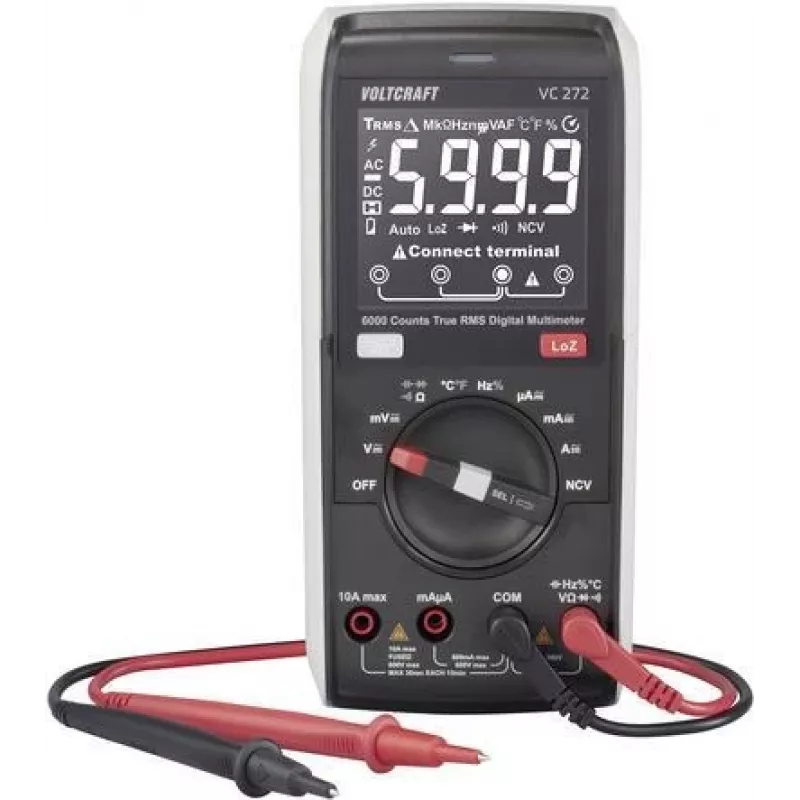

VOLTCRAFT VC272 True RMS Digital Multimeter, ISO Calibrated, CAT III 600 V, 6000 Counts VC-13829985

VOLTCRAFT VC272 True RMS Digital Multimeter, ISO Calibrated, CAT III 600 V, 6000 Counts VC-13829985
VOLTCRAFT VC272 True RMS Digital Multimeter, ISO Calibrated, CAT III 600 V, 6000 Counts VC-13829985
R4,022
Electrical troubleshooting demands precise, reliable measurements, and the VOLTCRAFT VC272 delivers exactly that. This ISO-calibrated digital multimeter offers True RMS accuracy for AC signals, a 6000-count display, and CAT III 600 V safety rating, making it suitable for professional electricians, t... Read More
Stock Out Of StockNo Stock Code 3487068 Brand VOLTCRAFT Model VC-13829985 Warranty 2 Years

Shipping & Returns

Electrical troubleshooting demands precise, reliable measurements, and the VOLTCRAFT VC272 delivers exactly that. This ISO-calibrated digital multimeter offers True RMS accuracy for AC signals, a 6000-count display, and CAT III 600 V safety rating, making it suitable for professional electricians, technicians, and advanced hobbyists working on building installations and industrial equipment.

Who is it for

If you need a dependable tool for diagnosing circuits, verifying voltage, current, resistance, capacitance, frequency, or temperature, the VC272 is built for you. Its ISO calibration certificate ensures traceable accuracy, ideal for quality control, maintenance, and service environments where documentation matters.

Main features

  • True RMS measurement for accurate AC readings even with distorted waveforms
  • 6000-count backlit display for clear visibility in low-light conditions
  • CAT III 600 V safety rating for safe use on building installations
  • ISO calibration certificate included for verified precision
  • Wide measurement ranges: DC/AC voltage up to 600 V, current up to 10 A, resistance up to 60 MΩ
  • Additional functions: diode test, continuity buzzer, data hold, min/max, relative mode
  • Auto-ranging for quick and convenient operation
  • Powered by a single 9 V block battery (included)

Specifications

  • Display counts: 6000
  • Basic accuracy (DCV): 0.5%
  • DC voltage range: 0.1 mV – 600 V
  • AC voltage range: 1 mV – 600 V
  • DC current range: 0.1 µA – 10 A
  • AC current range: 0.1 µA – 10 A
  • Resistance range: 0.1 Ω – 60 MΩ
  • Capacitance range: 1 nF – 60 mF
  • Frequency range: 1 Hz – 10 MHz
  • Temperature range: -40 to +1000 °C
  • Safety rating: CAT III 600 V
  • Power supply: 1 x 9 V block battery
  • Dimensions (WxDxH): 78 x 42 x 175 mm
  • Weight: 280 g

Tips

Always verify the meter's operation on a known voltage source before and after measurements. For temperature readings, use a compatible K-type thermocouple. Replace the battery when the low-battery indicator appears to maintain accuracy.

Specifications
Backlight
Yes
Batteries included
Yes
Battery type
9V
Battery voltage
9 V
Brand
VOLTCRAFT
Category
Digital Multimeter
DC voltage range
0.1 mV - 600 V
Depth
42 mm
Dimensions (WxDxH)
78 x 42 x 175 mm
Display
LCD
EAN
4064161246482
Frequency range
1 Hz - 10 MHz
Height
175 mm
Manual
Yes
Model
VC272
MPN
VC-13829985
Number of batteries supported
1
Package depth
80 mm
Package height
190 mm
Package volume
0.001 m³
Package weight
350 g
Package width
60 mm
Placement supported
Handheld
Power source
Battery
Product colour
Black
Product type
Digital Multimeter
Weight
1 kg
Width
78 mm
Price history over the last 6 months
VOLTCRAFT VC272 True RMS Digital Multimeter, ISO Calibrated, CAT III 600 V, 6000 Counts VC-13829985
Current
R4,022
Lowest
R4,013
Highest
R4,053
Change 24H
-R13   0%
Week
-R5   0%
Month
—
