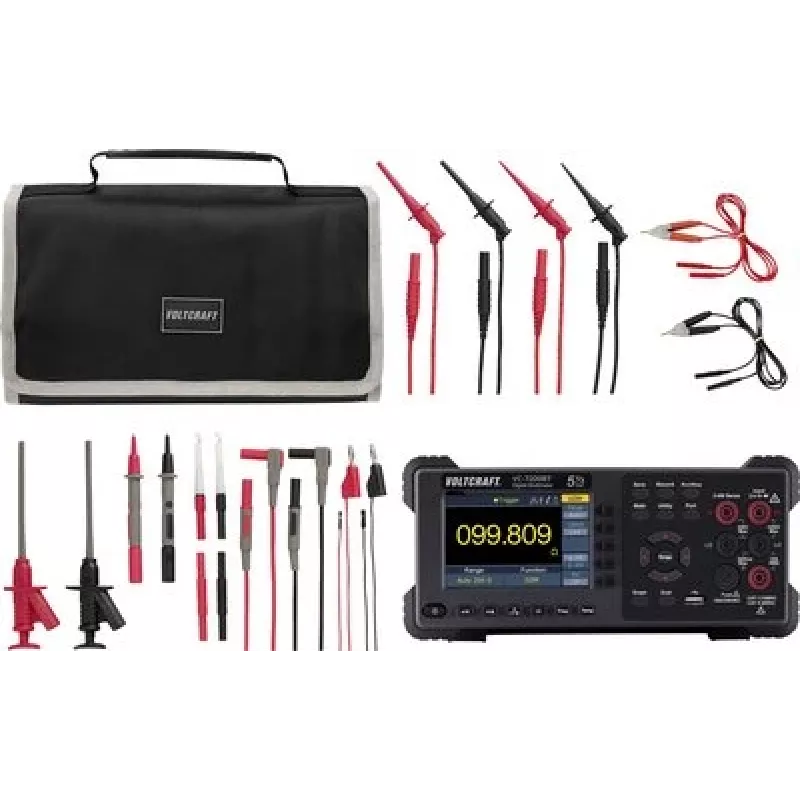

VOLTCRAFT VC-7200BT Bench Multimeter with MLSET-120 Test Leads (VC-11015340+VC-18652750+VC-11732520)

The VOLTCRAFT VC-7200BT is a high-precision bench multimeter with 60,000-count display, true RMS measurement, and Bluetooth/USB connectivity for professional electronics testing and data logging. Its dual display and extensive measurement functions make it ideal for laboratory, service, and production environments.

Advantages

This multimeter offers exceptional accuracy with a basic DC voltage accuracy of ±(0.05% + 5 digits) and true RMS for both AC and AC+DC signals. The large 4 5/6-digit LCD with dual display allows simultaneous viewing of two parameters, while Min/Max/Avg, relative mode, and hold function enhance measurement efficiency. Bluetooth and USB interfaces enable remote control and data logging of up to 10,000 readings, streamlining automated testing and analysis.

Suitable for

• Electronics laboratories and R&D departments
• Service and repair workshops
• Production testing and quality control
• Educational institutions
• Field engineers requiring bench-top accuracy

Key specifications

• Display: 60,000 counts, 4 5/6-digit LCD with dual display
• True RMS: Yes (AC, AC+DC)
• DC voltage: 600 mV to 1000 V, accuracy ±(0.05% + 5 digits)
• AC voltage: 600 mV to 750 V
• DC/AC current: 600 µA to 10 A
• Resistance: 600 Ω to 60 MΩ
• Capacitance: 6 nF to 60 mF
• Frequency: 10 Hz to 10 MHz
• Temperature measurement (with optional probe)
• Interfaces: USB, Bluetooth
• Data logging: internal memory for up to 10,000 readings
• Power supply: AC mains 100-240 V, 50/60 Hz
• Safety rating: CAT II 600 V, CAT I 1000 V
• Included accessories: MLSET-120 test leads, USB cable, power cord, software CD, user manual

Recommendations

For professionals seeking a reliable bench multimeter with advanced connectivity and high accuracy, the VOLTCRAFT VC-7200BT is an excellent choice. Its comprehensive measurement capabilities and data logging features make it a valuable tool for any electronics workspace.
