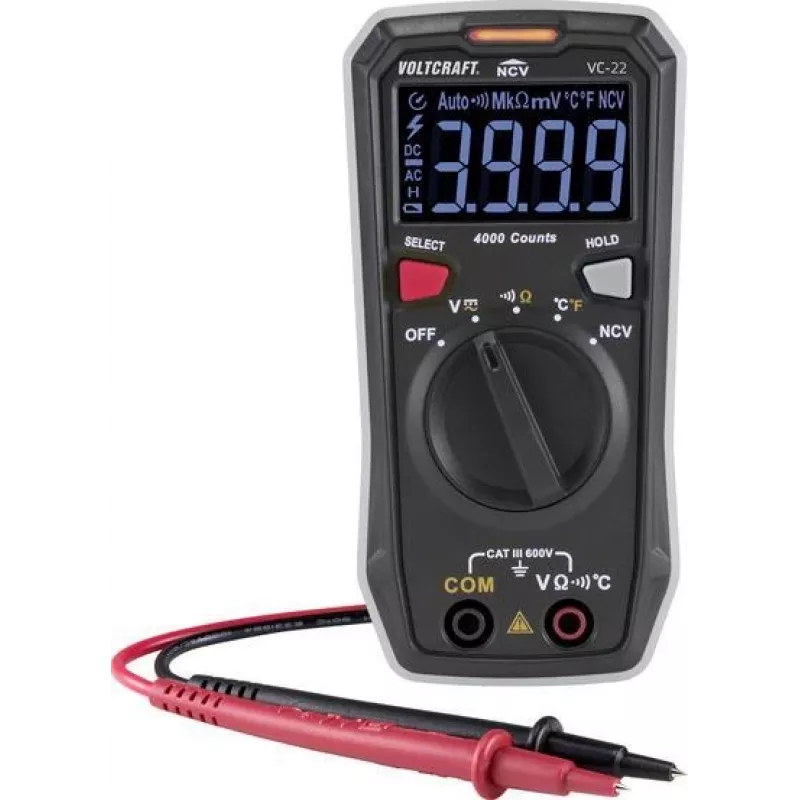

VOLTCRAFT VC-22 Digital Multimeter CAT III 600 V, 4000 Counts VC-11899610

Electrical troubleshooting demands precision and safety. The VOLTCRAFT VC-22 digital multimeter delivers both, with CAT III 600 V protection and a 4000-count display that reveals even minor fluctuations in voltage, current, and resistance. Whether you're diagnosing a faulty outlet, testing a circuit board, or verifying component values, this meter gives you the confidence to work quickly and accurately.

Who is it for

This multimeter is ideal for electricians, electronics hobbyists, HVAC technicians, and anyone who needs reliable measurements in residential, commercial, or light industrial environments. Its auto-ranging function and clear display make it accessible for beginners, while its accuracy and safety rating satisfy professionals.

Main features

• 4000-count digital display for detailed readings
• CAT III 600 V safety rating for safe use on building installations
• Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle
• Auto-ranging for hassle-free operation
• Diode test and continuity buzzer for quick checks
• Data hold freezes readings for easy recording
• Overload protection and low battery indicator
• Compact, handheld design powered by 2 AAA batteries

Specifications

• Display: 4000 counts
• Safety rating: CAT III 600 V
• DC voltage range: 400 mV – 600 V
• AC voltage range: 4 V – 600 V
• DC current range: 400 µA – 10 A
• AC current range: 400 µA – 10 A
• Resistance range: 400 Ω – 40 MΩ
• Capacitance range: 4 nF – 400 µF
• Frequency range: 40 Hz – 40 MHz
• Duty cycle range: 0.1% – 99.9%
• Basic DC voltage accuracy: ±0.5% + 3 digits
• Input impedance (DCV): 10 MΩ
• Power supply: 2x AAA batteries
• Test leads included

Tips

Always verify the meter's CAT rating matches your working environment. For current measurements above 400 mA, use the dedicated 10 A input and limit measurement time to avoid overheating. Replace batteries when the low battery indicator appears to maintain accuracy.
