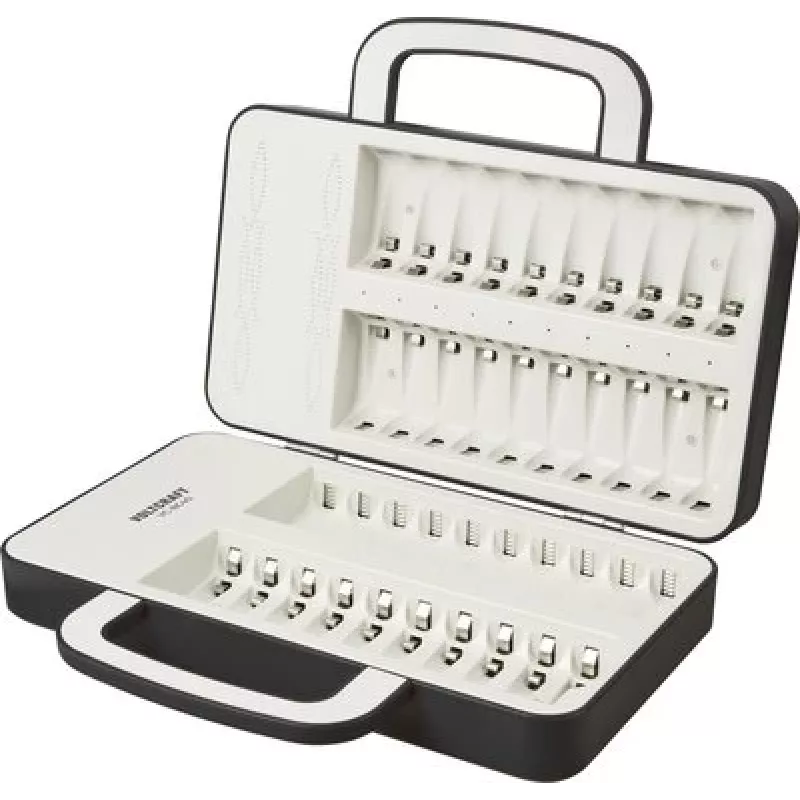

Voltcraft VC-14865480 NiMH/NiCd Round Cell Charger for AA, AAA, C, D, 9V with 10 Independent Channels

In workshops, labs, and households where a constant supply of charged batteries is essential, the Voltcraft VC-14865480 keeps operations running smoothly. This microprocessor-controlled charger handles up to ten NiMH or NiCd cells simultaneously—eight round cells (AA, AAA, C, D) and two 9V blocks—each on its own independent channel. Selectable charging currents from 200 mA to 2000 mA for round cells and 10 mA to 100 mA for 9V blocks let you match the charge rate to the battery capacity, while discharge, refresh, and capacity test functions help maintain battery health and identify weak cells before they cause downtime.

Key specifications

• Supported battery types: NiMH, NiCd
• Supported sizes: AA (Mignon), AAA (Micro), C (Baby), D (Mono), 9V Block
• Charging bays: 10 (8 round cell slots + 2 9V block slots)
• Independent channels: 10, each with individual monitoring and control
• Charging current (round cells): selectable 200 / 500 / 700 / 1000 / 1500 / 2000 mA
• Charging current (9V blocks): selectable 10–100 mA in 10 mA steps
• Discharge current (round cells): selectable 100 / 250 / 350 / 500 / 750 / 1000 mA
• Functions: charge, discharge, refresh, capacity test
• Display: backlit LCD shows charging status, current, voltage, capacity, and time
• Safety: -dV detection, temperature monitoring, short-circuit protection, reverse polarity protection, overcharge protection
• Input: 100–240 V AC, 50/60 Hz
• Max charging capacity: up to 20,000 mAh per D cell
• Power consumption: 30 W
• Operating temperature: 0–40 °C

Why choose it

Ten independent channels mean you can charge different battery sizes and capacities simultaneously without cross-talk or overcharging. The ability to discharge and test capacity helps you identify failing cells and maintain a reliable battery inventory. With selectable currents, you can fast-charge high-capacity D cells at 2000 mA or gently top up AAA cells at 200 mA. The backlit LCD provides clear feedback for each channel, and built-in safety features protect both the batteries and the charger.

Ideal use cases

• Professional environments: photography studios, audio/video production, medical devices, and field equipment that rely on AA, AAA, C, D, or 9V batteries.
• Hobbyists and RC enthusiasts who need to charge and maintain large numbers of NiMH cells.
• Households with many battery-powered devices, from toys and flashlights to wireless keyboards and smoke detectors.
• Battery testing and maintenance: use the discharge and capacity test functions to grade used cells and extend their useful life.

Good to know

The charger operates from a standard AC outlet (100–240 V) with a built-in power supply, so no external adapter is needed. It is designed for indoor use within an ambient temperature range of 0–40 °C. The unit is not suitable for lithium-based batteries. Always verify battery chemistry and polarity before insertion. The charger automatically detects -dV and temperature to terminate charging safely, but it is recommended to supervise charging and remove batteries once complete.
