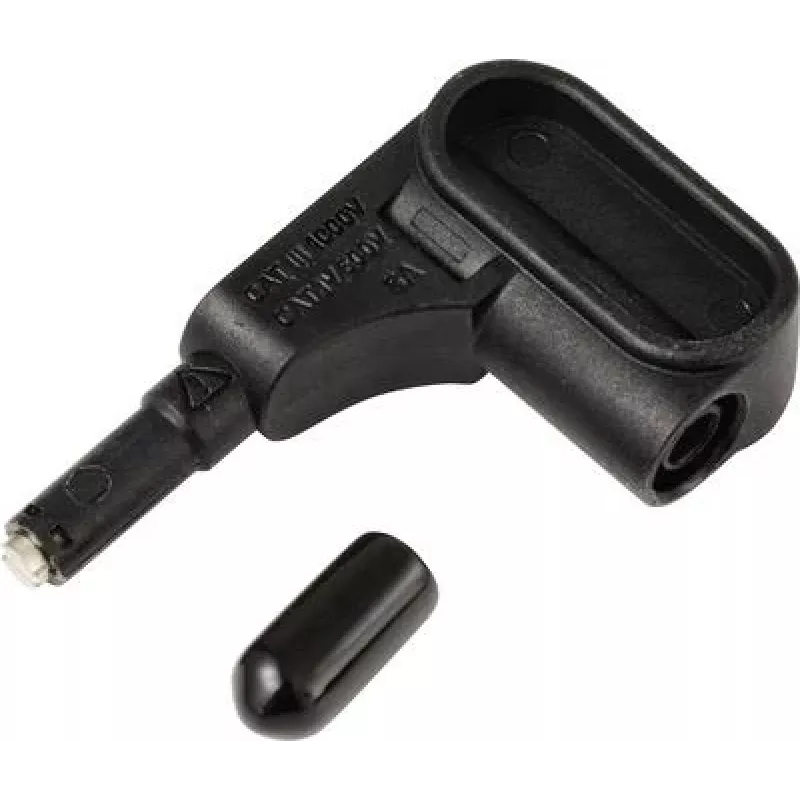

Voltcraft MSS-120 Safety Test Probe, 4 mm Socket, CAT IV 600 V / CAT III 1000 V, 10 A, Black VC-17155640

When working with high-energy circuits, standard test leads can pose serious safety risks. The Voltcraft MSS-120 Safety Test Probe addresses this by providing a robust, double-insulated connection point rated for CAT IV 600 V and CAT III 1000 V environments. Its 4 mm female socket accepts standard banana plugs, allowing you to create a secure, reliable test point for multimeters, oscilloscopes, and other measurement instruments. The probe's 120 mm length and durable polyamide housing make it suitable for both benchtop and field use, while the brass contact ensures low resistance and consistent readings.

Who is it for

This test probe is ideal for electricians, maintenance technicians, and electronics engineers who need a safe, reusable connection point for voltage, current, and continuity measurements in industrial, laboratory, or educational settings. It is particularly valuable for those working on distribution panels, motor controls, or renewable energy systems where high transient voltages may be present.

Main features

• 4 mm female socket for standard banana plug leads
• Safety rated CAT IV 600 V and CAT III 1000 V
• Rated current up to 10 A
• Double insulated for enhanced protection
• Durable polyamide housing with brass contact
• 120 mm probe length for easy access

Specifications

• Product type: Safety test probe
• Connection: 4 mm socket (female)
• Safety category: CAT IV 600 V / CAT III 1000 V
• Rated current: 10 A
• Probe length: 120 mm
• Insulation: Double insulated
• Housing material: Polyamide (PA)
• Contact material: Brass
• Operating temperature: -15 to +70 °C
• Compliance: EN 61010-031
• Colour: Black
• Pack quantity: 1 piece

Tips

To ensure safe operation, always verify that the test probe is securely connected to your instrument lead before applying voltage. Avoid exceeding the rated voltage or current limits, and inspect the probe for signs of wear or damage before each use. When working in CAT IV environments, use additional protective equipment as required by local regulations.
