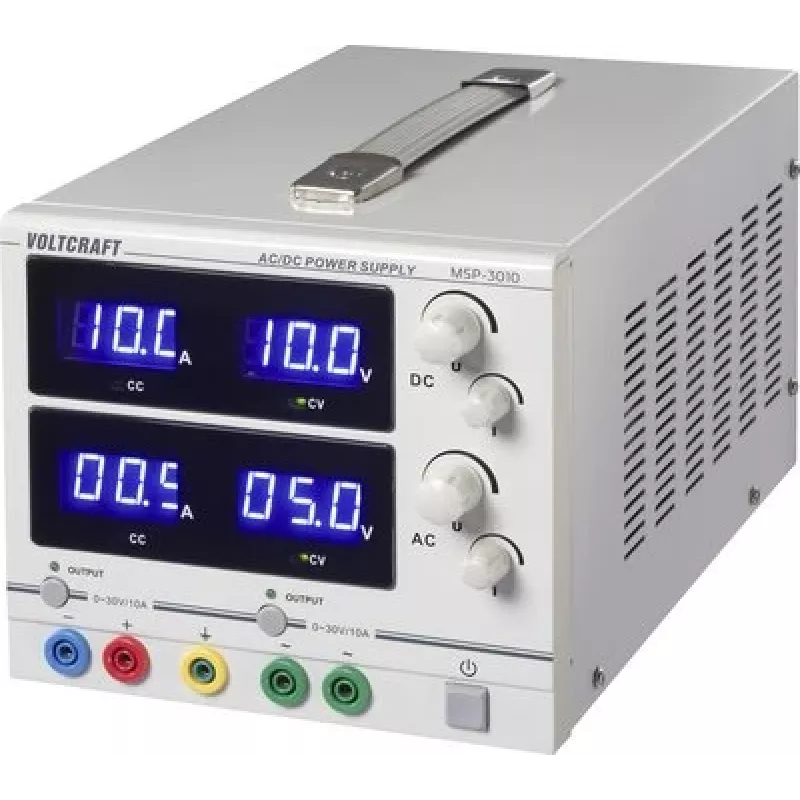

VOLTCRAFT MSP-3010 Adjustable Regulated AC and DC Lab Power Supply 0-30 V 0-10 A 2x 300 W 4 mm Banana Jack Dual Output (VC-17370145)

Dual independent outputs delivering up to 300 W per channel with 0-30 V and 0-10 A adjustability make the VOLTCRAFT MSP-3010 a powerhouse for demanding bench applications. This switched-mode lab power supply provides precise, regulated DC power with low ripple and noise, ideal for electronics development, testing, and repair.

Overview

The VOLTCRAFT MSP-3010 is a professional-grade bench power supply featuring two fully independent, adjustable outputs. Each channel can deliver 0-30 V DC and 0-10 A DC, with a maximum output power of 300 W per channel (600 W total). The unit operates in constant voltage (CV) or constant current (CC) mode, automatically switching based on load conditions. The bright LED display shows voltage and current for each channel, and the 4 mm banana jack connectors ensure secure, low-resistance connections. Fan cooling keeps the unit stable under continuous full load.

What stands out

• Two independent, galvanically isolated outputs for powering separate circuits simultaneously
• Wide adjustment range: 0-30 V and 0-10 A per channel with fine and coarse controls
• High efficiency switched-mode design reduces heat and energy consumption
• Excellent regulation: load regulation < 0.01% + 2 mV / + 2 mA
• Very low ripple and noise: < 5 mVrms voltage, < 10 mArms current
• Comprehensive protection: overload, overvoltage, and overtemperature protection
• 4 mm safety banana jacks compatible with standard test leads
• Digital LED display for precise monitoring of both channels

Technical details

• Output voltage range (per channel): 0 - 30 V DC
• Output current range (per channel): 0 - 10 A DC
• Output power (per channel): 300 W (total 600 W)
• Input voltage: 230 V AC, 50/60 Hz
• Operating modes: Constant Voltage (CV), Constant Current (CC)
• Output connector: 4 mm banana jack
• Display: Digital LED
• Voltage ripple & noise: < 5 mVrms
• Current ripple & noise: < 10 mArms
• Load regulation (voltage): < 0.01% + 2 mV
• Load regulation (current): < 0.01% + 2 mA
• Protection: Overload (OLP), Overvoltage (OVP), Overtemperature (OTP)
• Cooling: Fan-cooled

Our verdict

The VOLTCRAFT MSP-3010 is a robust, high-performance dual-channel lab power supply that meets the needs of professional engineers and serious hobbyists. Its precise regulation, low noise, and comprehensive protection features make it a reliable workhorse for any electronics lab.
