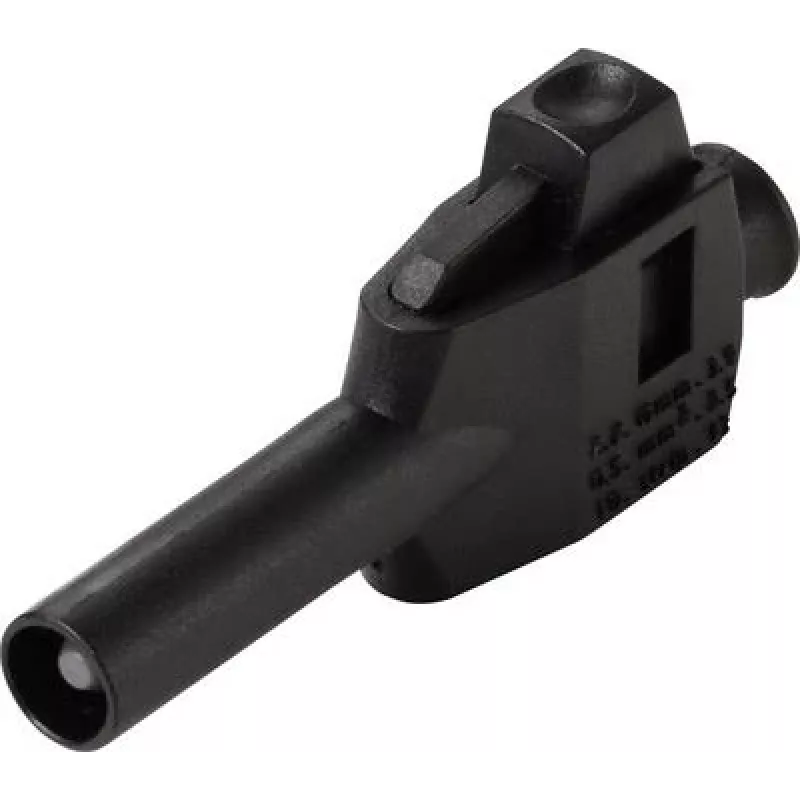

Voltcraft MP-4 Laboratory Plug, Straight, 4 mm Banana, Clamp Connection, Black, 50 Pieces (VC-17002940)

The Voltcraft MP-4 laboratory plug stands out for its robust clamp connection, allowing secure attachment of test leads up to 2.5 mm² without soldering. This straight 4 mm banana plug is built for daily use in test and measurement environments, where reliable contact and quick assembly are essential. The nickel-plated brass contact ensures low contact resistance and long-term durability, while the polyamide insulation provides excellent mechanical protection and electrical safety. Supplied in a pack of 50, it is an economical choice for laboratories, workshops, and educational institutions that require consistent quality across multiple setups.

Highlights

• Straight 4 mm banana plug with clamp connection for fast, solder-free wiring
• Accepts cables up to 2.5 mm² cross-section
• Nickel-plated brass contact for reliable signal and power transmission
• Insulation made of polyamide (PA) for high mechanical strength and temperature resistance
• Rated for 60 V DC and 10 A, suitable for low-voltage test applications
• Pack of 50 pieces – ideal for equipping entire labs or production lines

In daily use

The MP-4 plug is designed for frequent connection and disconnection. Its straight design fits standard 4 mm sockets and binding posts, making it compatible with most multimeters, power supplies, and test fixtures. The clamp connection simplifies assembly: strip the wire, insert it into the clamp, and tighten the screw. No special tools or soldering required. The black colour aids in polarity identification when paired with red plugs. The operating temperature range from -25 to +70 °C ensures reliable performance in typical laboratory conditions.

Full specifications

• Product type: Laboratory plug
• Plug design: Straight
• Pin diameter: 4 mm
• Plug connection type: Banana plug
• Wire connection type: Clamp connection
• Termination method: Screw terminal
• Max. cable cross-section: 2.5 mm²
• Rated voltage: 60 V DC
• Rated current: 10 A
• Colour: Black
• Contact material: Brass, nickel-plated
• Insulation material: Polyamide (PA)
• Operating temperature range: -25 to +70 °C
• Quantity per pack: 50 pieces
• Application: Test & Measurement, Laboratory
• Series: MP-4

Final note

With its rugged construction and user-friendly clamp connection, the Voltcraft MP-4 is a dependable choice for professionals who need a high-volume, high-quality banana plug solution.
