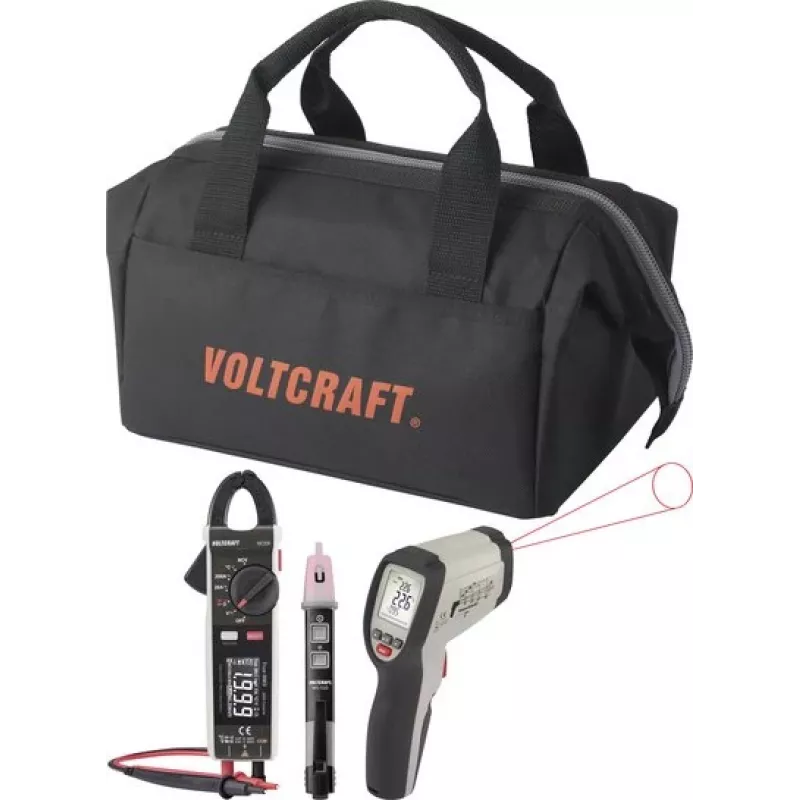

VOLTCRAFT HVAC Measuring Device Set VC-8013705 + VC-14465985 Infrared Pyrometer & Clamp Multimeter

Climate technology professionals often face the challenge of quickly and accurately diagnosing temperature and electrical issues in HVAC systems. The VOLTCRAFT Measuring Device Set combines an infrared pyrometer and a true RMS clamp multimeter to provide a complete solution for non-contact surface temperature measurements and comprehensive electrical testing. This set enables efficient troubleshooting, preventive maintenance, and verification of heating, ventilation, and air conditioning equipment.

Who is it for

This set is ideal for HVAC technicians, electricians, facility managers, and advanced DIY enthusiasts who need reliable tools for climate system diagnostics. It suits professionals working on air conditioning units, heat pumps, furnaces, and electrical panels where both thermal and electrical parameters must be measured safely and accurately.

Main features

• Infrared pyrometer with 12:1 distance-to-spot ratio and adjustable emissivity for precise surface temperature readings from -50 to +550 °C.
• Clamp multimeter with true RMS for accurate AC/DC current up to 400 A and voltage up to 600 V, plus resistance, capacitance, frequency, and K-type temperature.
• Multimeter features 4000-count display, auto-ranging, data hold, NCV detection, diode and continuity tests, and CAT III 600V safety rating.
• Both instruments are powered by standard batteries (9V block and 2x AAA, not included), ensuring easy replacement.

Specifications

• Set components: Infrared Pyrometer VC-8013705, Clamp Multimeter VC-14465985
• Pyrometer temperature range: -50 to +550 °C
• Pyrometer D:S ratio: 12:1
• Pyrometer emissivity: Adjustable 0.1 - 1.0
• Multimeter AC/DC current: Up to 400 A
• Multimeter AC/DC voltage: Up to 600 V
• Multimeter resistance: Up to 40 MΩ
• Multimeter capacitance: Up to 40 mF
• Multimeter frequency: Up to 40 MHz
• Multimeter K-type temperature: -20 to +1000 °C
• Multimeter display: 4000 counts, true RMS
• Multimeter safety: CAT III 600V
• Power: Pyrometer 1x 9V block (not included), Multimeter 2x AAA (not included)

Tips

For accurate pyrometer readings, ensure the target surface is larger than the measurement spot and adjust emissivity according to the material. When using the clamp multimeter, always verify the CAT rating for the environment and use appropriate personal protective equipment. Store both devices in a dry, clean case to maintain accuracy and prolong service life.
