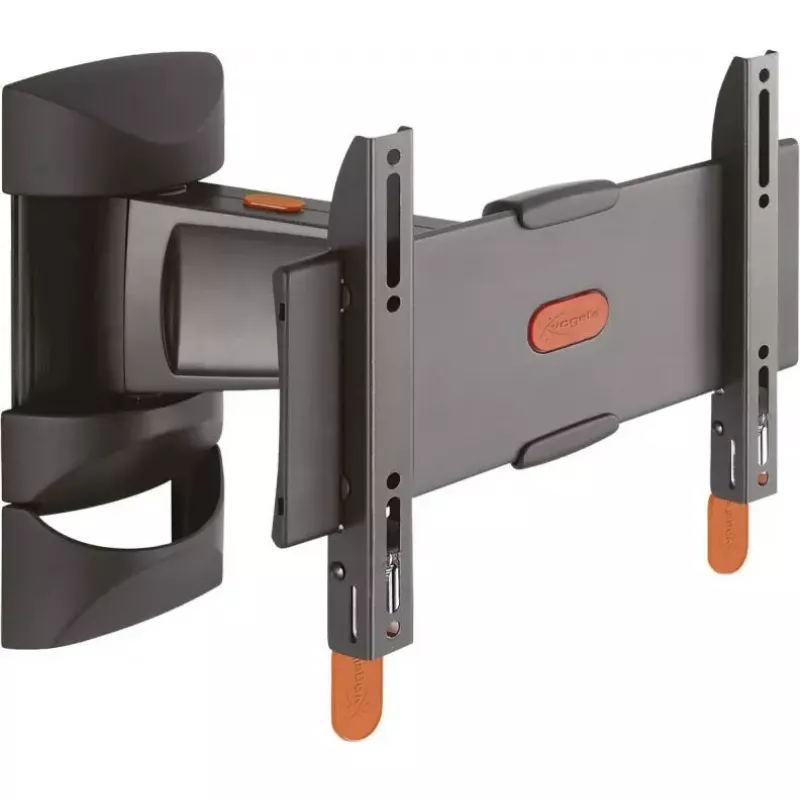

Full-Motion TV Wall Mount Vogel's BASE 25 S 73201972

The Vogel's BASE 25 S 73201972 full-motion TV wall mount lets you mount LED/LCD TVs very flat to the wall while providing a turn function for precise viewing angles. It supports TVs from 19" to 40" with a maximum weight of 20 kg and is compatible with common VESA patterns up to 400x400 mm. The mount includes all required hardware and simple instructions for installation.

Advantages

The BASE TURN design offers a slim profile on the wall combined with a swivel mechanism that turns the TV up to 60 degrees left or right depending on screen size. A cable inlay system keeps cables tidy behind the screen. The mount features an integrated lock release that clicks the TV to the wall and secures it in place, and mounting hardware is included for straightforward installation.

Suitable for (tasks / use cases)

• Mounting LED/LCD TVs sized 19"–40"
• Creating flexible viewing angles in living rooms and bedrooms
• Rooms where a flat wall-mounted look with occasional swivel is needed

Key specifications

• Brand: Vogel's
• Model / MPN: BASE 25 S / 73201972
• EAN: 8712285324185
• Maximum TV weight: 20 kg
• Screen size compatibility: 19"–40"
• VESA compatibility: up to 400 x 400 mm
• Swivel range: up to 60° left/right (depending on TV size)

How to use

Follow the included instructions to mark and drill the fixing points on a solid wall, attach the wall plate, and mount the TV bracket to the TV using the correct VESA holes. Hang the TV on the wall plate, engage the lock release until it clicks to secure the TV, and route cables through the cable inlay system. Adjust the swivel angle as needed to obtain the desired viewing position.

Recommendations

Ensure the wall type and installation location can support the combined weight of the mount and TV. Use the screws and wall plugs provided or suitable alternatives for your wall material, and verify VESA compatibility before installation.
