Vogel's MOMO 2237 Monitor Arm Motion Dual Display Desk Mount Black 10-34 inch 20kg

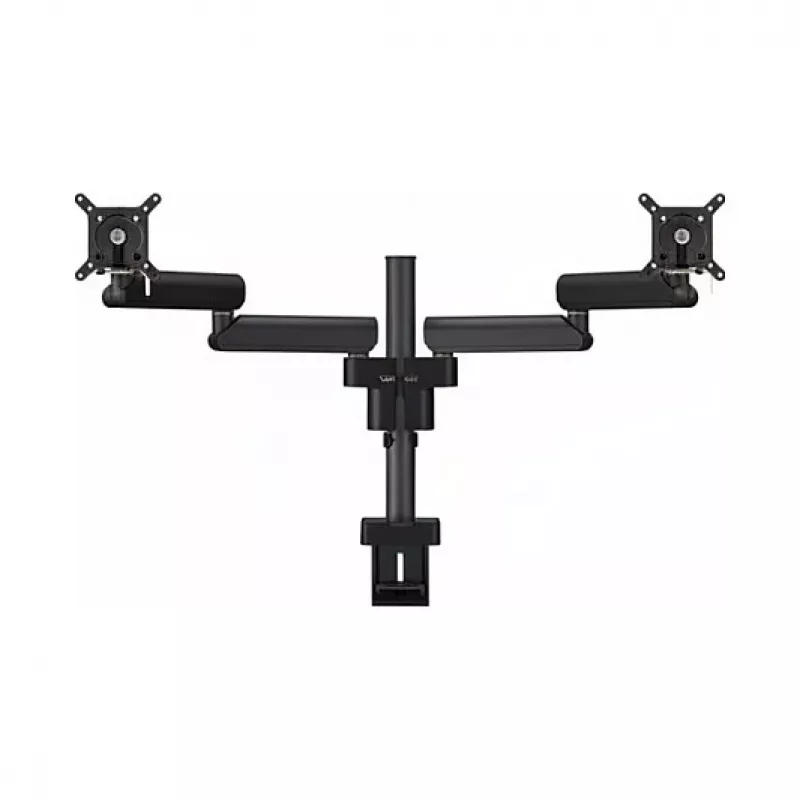

The Vogel's MOMO 2237 Motion is a dynamic dual-monitor desk arm designed for productive workstations where two screens are adjusted in height throughout the day. It carries two displays from 10 to 34 inches, each weighing up to 20 kg, on independent arms that use three pivot points so every monitor can be positioned for perfect ergonomics and stays exactly where it is placed.

Advantages

Full motion control lets each screen be set to the ideal viewing position: the arms swivel up to 180°, tilt from -20° to +105° and rotate 90° + 90° between portrait and landscape, with a 360° rotation stop that protects the cabling during repositioning. Hidden cable slots in the arms hold several thick cables and keep them in place with stainless steel clips, while a desk thickness indicator makes setting up the clamp straightforward. The whole arm installs with a single hex key that is cleverly concealed in the product. The MOMO 2237 is TÜV, FIRA and IGR certified for ergonomic and mechanical safety, passes an endurance test of at least 10,000 cycles and is backed by a 10-year guarantee.

Suitable for

• Dual-monitor home offices and corporate workstations
• Sit-stand and height-adjustable desks that need reclaimed surface space
• Two displays from 10 to 34 inches up to 20 kg each
• Users who frequently reposition their screens for ergonomic comfort

Key specifications

• Brand: Vogel's
• Model: MOMO 2237 Motion (black)
• Article number (MPN): 7122370
• EAN: 8712285353864
• Type: dual-monitor desk arm
• Number of displays: 2
• Screen size: 10 - 34 inch
• Maximum load: 20 kg per monitor
• VESA hole patterns: 50 x 50, 75 x 75, 100 x 100 mm
• Pivot points: 3 per arm
• Swivel: up to 180°
• Tilt: -20° to +105°
• Rotation: 90° + 90°, with 360° rotation stop
• Mounting: desk clamp, installs two ways (clamped to the desk or fed through the desk / grommet)
• Maximum desk thickness: approx. 65 mm (2.6 inch)
• Cable management: hidden slots with stainless steel clips
• Materials: aluminium arms, steel base, ASA cover caps (RoHS)
• Certifications: TÜV, FIRA, IGR
• Colour: black
• Guarantee: 10 years

How to use

Attach the desk clamp to your desk in the preferred configuration, using the desk thickness indicator to set the correct width; assembly needs only the single hex key built into the product. Mount each monitor to its VESA plate, then balance the screens on the spring arms. Adjust height, swivel, tilt and rotation by hand to your ideal side-by-side viewing angle, and route the cables through the integrated slots, securing them with the stainless steel clips.

Recommendations

Confirm each monitor weighs up to 20 kg and has a 50, 75 or 100 mm VESA pattern before mounting. Keep both cables routed through the clips so the 360° rotation stop can protect them during repositioning, and use the desk thickness indicator to seat the clamp securely.
