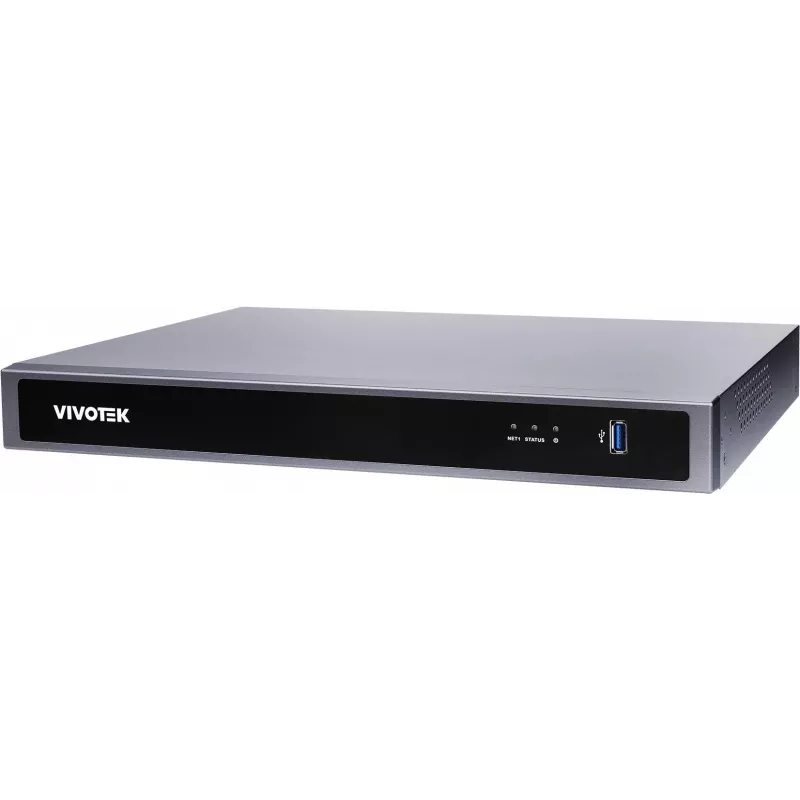

VIVOTEK ND9426P Network Video Recorder with 16 Channels, 2 HDD, 16x PoE, AI

The VIVOTEK ND9426P is a high-performance 16-channel network video recorder (NVR) designed for professional surveillance systems. With built-in 16-port PoE (Power over Ethernet) and support for up to 2 internal SATA HDDs (up to 10TB each), it provides a complete recording and storage solution. Advanced AI features enable smart search and deep search when used with compatible VIVOTEK cameras, enhancing security efficiency.

Advantages

Integrated 16-port PoE switch simplifies installation by powering cameras directly from the NVR. Supports H.265 compression to save bandwidth and storage. AI-powered analytics for intelligent event detection. Desktop form factor fits easily into any environment.

Suitable for

• Small to medium-sized businesses requiring up to 16 cameras
• Retail stores, offices, warehouses, and educational facilities
• Users needing reliable 24/7 recording with PoE convenience

Key specifications

• Video Input Channels: 16
• PoE Ports: 16 x IEEE 802.3af/at
• Max PoE Power Budget: 180 W
• HDD Bays: 2 x SATA (up to 10TB each, 20TB total)
• Max Recording Resolution: Up to 12 MP (4K)
• Video Compression: H.265, H.264, MJPEG
• Display Outputs: 1 x HDMI (up to 3840x2160), 1 x VGA (up to 1920x1080)
• Network Interface: 1 x Gigabit Ethernet
• USB Ports: 1 x USB 3.0, 1 x USB 2.0
• Audio: 1 x Audio In, 1 x Audio Out
• Alarm: 4 x Alarm In, 1 x Alarm Out
• Recording Throughput: 80 Mbps
• Simultaneous Playback: 16 channels
• Operating System: Embedded Linux
• Power Supply: Internal, AC 100-240V

Recommendations

For optimal performance, pair with VIVOTEK AI-enabled cameras to fully utilize smart search and deep search capabilities. Use enterprise-grade SATA HDDs rated for surveillance (e.g., WD Purple or Seagate SkyHawk) for reliable 24/7 recording.
