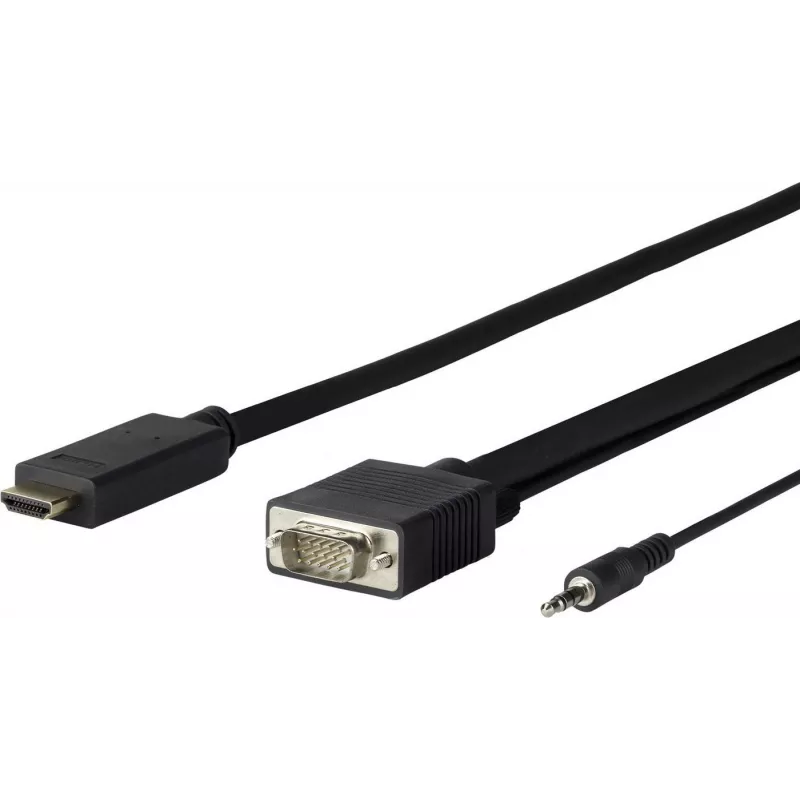

Vivolink PROHDMIVGA5 video cable adapter 5 m HDMI Type A (Standard) VGA (D-Sub) + 3.5mm Black

The Vivolink PROHDMIVGA5 is a 5 m video cable adapter with an HDMI Type A plug, a VGA (D-Sub) connector and a 3.5 mm audio jack. It converts HDMI digital video and audio signals into analog VGA video and analog audio, allowing connection of HDMI source devices to displays or projectors that only provide a VGA input. The cable supports PC resolution up to 1920 x 1080p and is designed for direct connection between a PC or other HDMI source and a VGA display.

Advantages

This adapter provides a simple, single-cable solution to connect HDMI-equipped devices to VGA-only displays while carrying analog audio via the integrated 3.5 mm minijack. With a 5 m length and a 7.5 mm diameter, the Vivolink cable offers sufficient reach and a compact profile for installation. The product is RoHS compliant and packaged as a single unit, making it suitable for both temporary setups and semi-permanent installations.

Suitable for (tasks / use cases)

• Connecting laptops, media players or other HDMI sources to projectors with VGA input
• Using modern HDMI devices with older VGA-only monitors
• Classroom or meeting-room AV setups where VGA displays are still in use
• Temporary presentations and events requiring audio via 3.5 mm output

Key specifications

• Length: 5 m
• Connectors: HDMI Type A to VGA (D-Sub) + 3.5 mm audio jack
• Maximum PC resolution: 1920 x 1080p
• Cable diameter: 7.5 mm
• Weight: 320 g
• Standards: RoHS compliant
• Manufacturer: VivoLink, MPN: PROHDMIVGA5, EAN: 5706998777935

How to use

Connect the HDMI Type A plug to the HDMI output of the source device and insert the VGA connector into the VGA input of the display or projector. Plug the 3.5 mm minijack into the display’s or speaker’s audio input if separate analog audio is required. Power on both devices and set the display to the VGA input; many source devices will detect the external display automatically. Adjust the source device output resolution to 1920 x 1080p or lower if required by the display.

Recommendations

For stable image and sound, avoid excessive cable bending and keep cable runs away from strong electromagnetic sources. If no video appears, verify the source output settings and confirm the display supports the chosen resolution. This passive converter carries HDMI video to VGA and analog audio; it does not add scaling or advanced signal processing.
