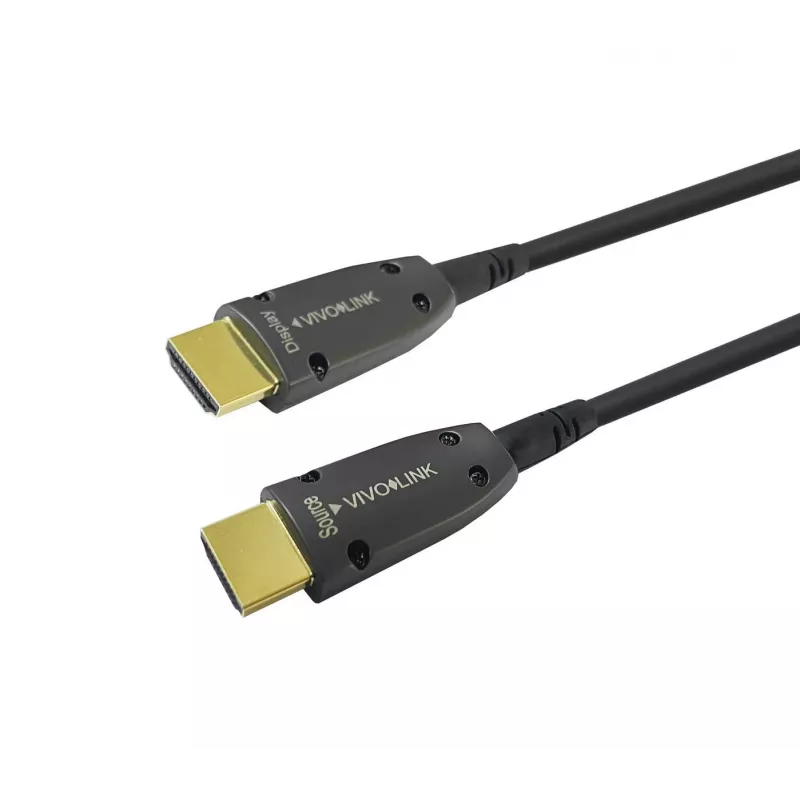

Vivolink PROHDMIOP20AM HDMI cable 20 m HDMI Type A (Standard) Black

The Vivolink PROHDMIOP20AM is a 20 m HDMI Type A cable in black with gold-plated contacts. It supports HDMI 2.0 features including 4K@60Hz with 4:4:4 chroma at up to 18 Gbps, HDR 12-bit, HDCP 2.2, 3D and Audio Return Channel (ARC). The cable has a slim profile with a 4.0 mm diameter and is designed for long-distance high-resolution signal transmission.

Advantages

This HDMI cable provides full HDMI 2.0 bandwidth (18 Gbps) for 4K@60Hz 4:4:4 signals and HDR 12-bit color, ensuring compatibility with HDCP 2.2 protected sources. Gold-plated contacts improve contact reliability and corrosion resistance. A slim 4.0 mm cable diameter makes routing through tight spaces easier, while measured tensile strength and pressure ratings indicate durable mechanical performance during installation.

Suitable for

• Connecting 4K@60Hz displays, projectors or AV receivers over a 20 m run
• Home cinema systems requiring ARC and HDCP 2.2 support
• Installations where a slim cable profile is needed for cable management

Key specifications

• Length: 20 m
• Connector: HDMI Type A (both ends)
• Bandwidth: up to 18 Gbps (HDMI 2.0)
• Resolution/color: 4K@60Hz, 4:4:4 chroma, HDR 12-bit
• Copy protection: HDCP 2.2
• Features: 3D, ARC
• Cable diameter: 4.0 mm (slim)
• Tensile strength (pull resistance): 20 kg
• Maximum pressure load on cable: 305 kg

How to use

Connect one HDMI Type A end to the source device (for example a Blu-ray player, set-top box or media player) and the other end to the display, projector or AV receiver. Ensure both devices support the desired HDMI features (4K@60Hz, HDR, HDCP 2.2) and select the correct HDMI input on the display. Route the slim cable through conduits or cable channels as needed, avoiding sharp bends with a radius smaller than the cable diameter.
