Video intercom outdoor unit DoorBird D1101V — 1080p, ultra wide-angle 150° horizontal, IR LED, IP65, IK08, PoE/DC, Anthracite

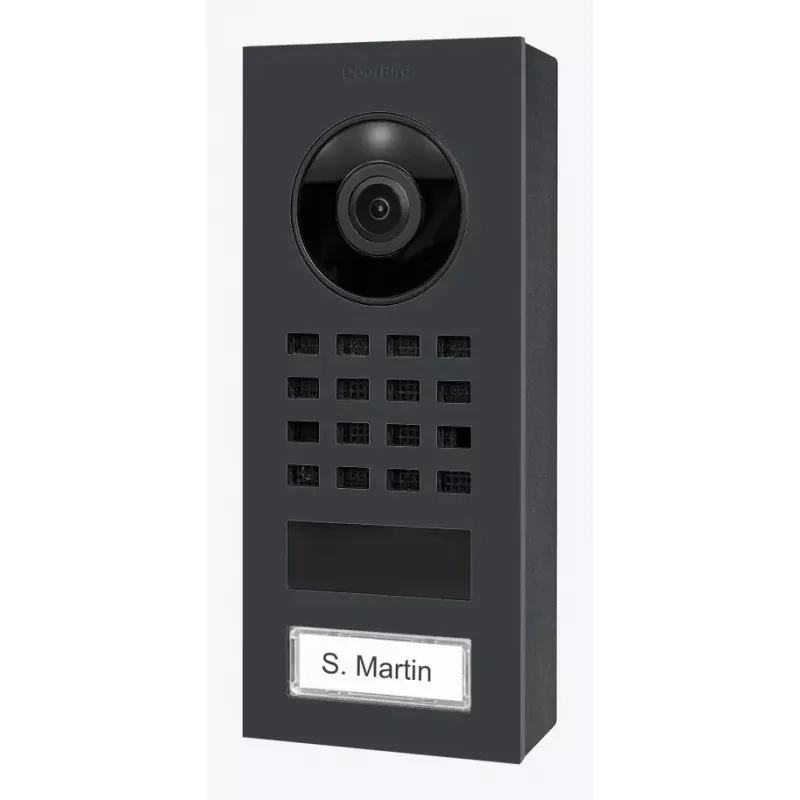

DoorBird D1101V is an outdoor video intercom unit with 1080p resolution and an ultra-wide-angle hemispheric lens providing approximately 150° horizontal coverage. The unit is weatherproof (IP65) and vandal-resistant (IK08), offers night vision with IR LEDs for low-light conditions, and supports both Power over Ethernet (PoE) and DC power. Connectivity options include wired LAN and Wi‑Fi, plus Bluetooth Low Energy for access control. The intercom integrates with smart home and NVR systems and supports SIP and an open API for third-party integration.

Advantages

The device delivers clear two-way audio, real-time video calls to smartphones, tablets, and SIP phones, and optimized streaming for mobile networks via Smart Transmission Mode. It includes a configurable bistable relay for door or gate control, a 4D motion sensor with adjustable range, and an automatic door buzzer function. Visitor images are stored free of charge with optional video recording. Installation is designed to be user-friendly with QR-code setup and versatile network connection methods including a 2‑Wire Ethernet PoE converter.

Suitable for

• Residential entry monitoring and remote visitor communication
• Small office and medical office door control with automatic buzzer
• Integration into smart home and NVR systems (e.g., Synology, QNAP, Control4)
• Outdoor access points requiring weatherproof and vandal-resistant hardware

Key specifications

• Video resolution: 1080p (Full HD)
• Lens: ultra wide-angle hemispheric, ~150° horizontal
• Night vision: IR LEDs and light sensor for automatic night mode
• Audio: built-in microphone and speaker for two-way communication
• Motion detection: 4D motion sensor adjustable up to 6 m
• Relay: one configurable bistable latching relay for door/gate control
• Connectivity: Wi‑Fi (802.11b/g/n), wired LAN (PoE capable)
• Power: PoE (IEEE 802.3af) or DC
• Bluetooth: BLE for access control and compatible locks/sensors
• Ingress protection: IP65; impact resistance: IK08
• Operating placement: outdoor surface-mount housing
• Color: anthracite

How to use

Mount the surface housing at the desired outdoor entry point and connect to the network using either a LAN cable with PoE or DC power. For locations without standard Ethernet, use the vendor’s 2‑Wire Ethernet PoE converter to supply power and data over bell wire. Follow the QR-code setup process in the DoorBird app to register the device, configure SIP or cloud accounts if needed, and grant Bluetooth access controls. Configure the relay, motion sensor range, night-vision thresholds, and visitor image storage options within the app.

Recommendations

Place the unit at a height that optimizes the 150° field of view and minimizes direct exposure to points of strong glare. Use PoE where possible for simpler cabling and reliable power. Enable Smart Transmission Mode for mobile users to reduce bandwidth use while maintaining real-time audio/video.
