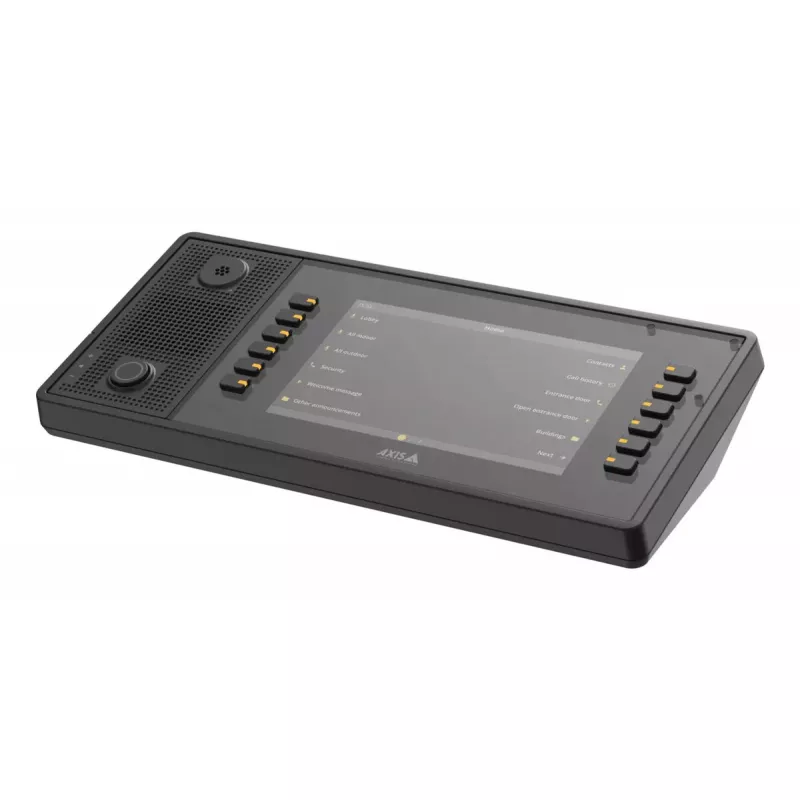

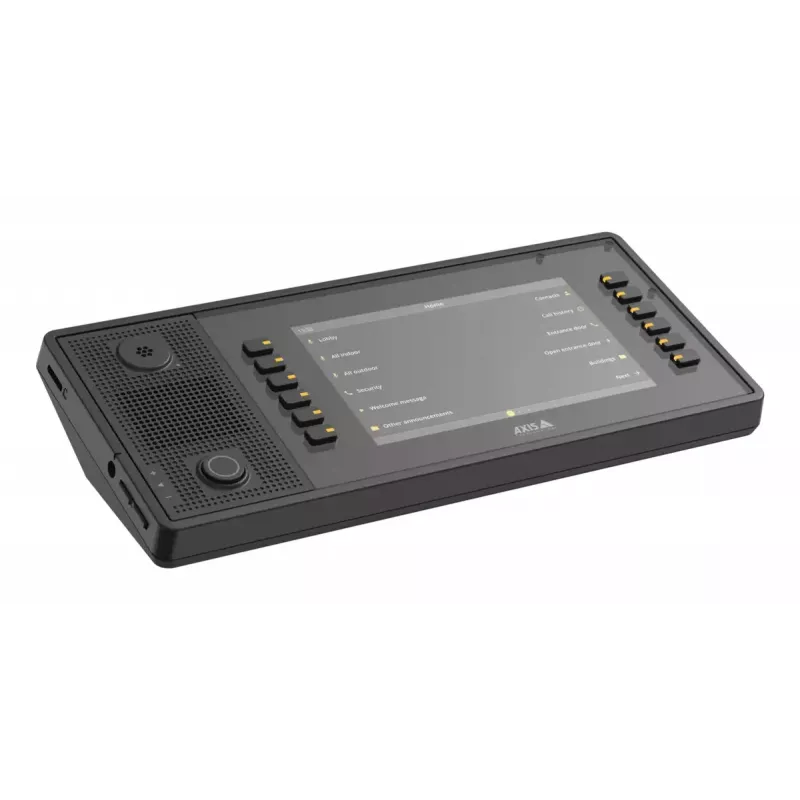

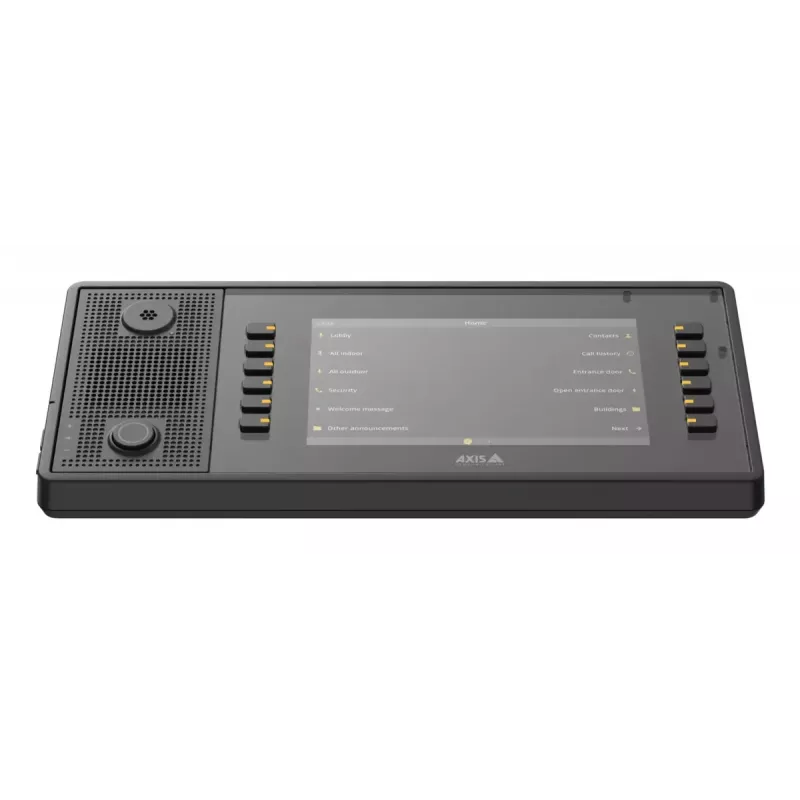

Video intercom AXIS C6110 with 17.8 cm (7 inch) 1024×600 display, MicroSD up to 1 TB, black

AXIS C6110 Network Paging Console works with network speakers to provide a complete IP-based public address system. Designed for straightforward installation and daily use, the console supports live and prerecorded paging, two-way audio, web-configurable display options, and PoE power. It can be placed on a desk or mounted on a wall and integrates with other systems to trigger actions on IoT devices when needed.

Advantages

The console delivers both live and prerecorded callouts and supports two-way audio through a built-in speaker, enabling intercom functionality with speakers and SIP devices across a site. A web-configurable LCD display and twelve physical buttons provide intuitive navigation of an expandable zone tree so you can quickly reach the right audio zones or individual contacts. PoE simplifies installation with a single cable for power and network, and the console supports desk or wall placement with a built-in beam-forming microphone for clear speech pickup in both positions.

Key specifications

• Supports live and prerecorded callouts
• Two-way audio with built-in speaker
• Web-configurable LCD display
• Expandable audio zone tree accessed via 12 physical buttons
• Power over Ethernet (PoE) for installation
• Wired network connection
• Display size: 17.8 cm (7")
• Speakerphone: built-in speaker(s)
• Number of displays supported: 1
• Maximum number of cameras supported: 1
• Color: Black

How to use

Connect the console to your network using a PoE-enabled switch or injector to provide both power and connectivity. Configure the display and zone tree through the web interface, assign zones and prerecorded messages as required, and map the twelve physical buttons to the most used zones or functions. For live paging, use the built-in microphone or connect a headset; optionally add the AXIS TC6901 gooseneck microphone when available. Use the console’s web settings to integrate with speakers, intercoms, SIP devices, and other IoT systems.

Recommendations

For reliable operation, place the console where the beam-forming microphone can clearly capture speech, keep the firmware updated via Axis’ platform, and plan button assignments and prerecorded messages ahead of deployment to ensure fast access during daily operations or emergency scenarios.
