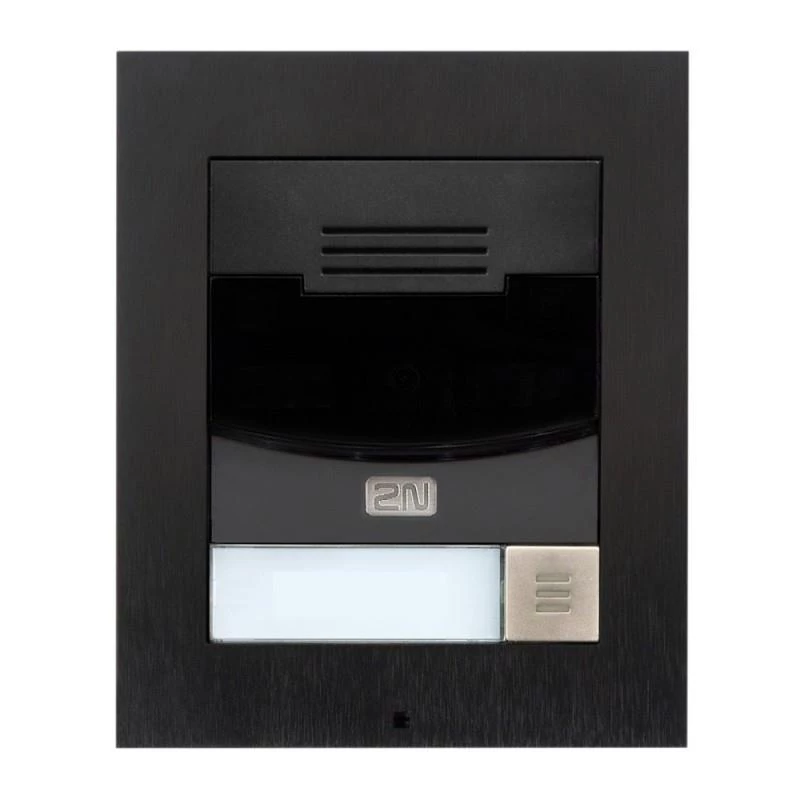

Video intercom 2N 9155301BF, Satin steel, max image 1280x960, video 640x480, Ethernet 10/100 Mbit/s, IK08, 130×5×153 mm

2N 9155301BF is a video intercom unit in a satin steel finish designed for door entry applications. The unit provides still image capture up to 1280×960 and video at 640×480, with network connectivity via 10/100 Mbit/s Ethernet. Its IK08-rated housing and compact dimensions (130×5×153 mm) suit installations in residential and small commercial environments where clear visual identification and reliable network connection are required.

Advantages

The satin steel housing offers durable protection with IK08 impact resistance. Network support for 10/100 Mbit/s Ethernet enables integration with LAN-based access control and monitoring systems. The combination of high-resolution still images (1280×960) and standard-definition video (640×480) provides clear identification while keeping bandwidth and storage requirements moderate. Compact size allows installation in constrained mounting locations.

Suitable for

• Residential door entry systems
• Small office or retail access control
• LAN‑connected monitoring and visitor identification

Key specifications

• Housing finish: satin steel
• Impact protection rating: IK08
• Maximum still image resolution: 1280×960
• Video resolution: 640×480
• Network interface: Ethernet 10/100 Mbit/s
• Dimensions: 130×5×153 mm

How to use

Mount the unit at the entry point following standard installation practices for door intercoms, ensuring stable attachment and weather protection if installed outdoors. Connect the intercom to the local network via the 10/100 Mbit/s Ethernet port and integrate with the building’s access control or monitoring system according to manufacturer instructions. Configure image and video settings on the connected management system to match resolution and storage needs.

Recommendations

For reliable operation, place the unit at eye level for visitors and ensure the network connection provides sufficient bandwidth for video transfer. Use appropriate sealing and protection if the unit is exposed to weather, and plan storage and retention settings to balance image quality (1280×960 for stills) with available storage capacity.
