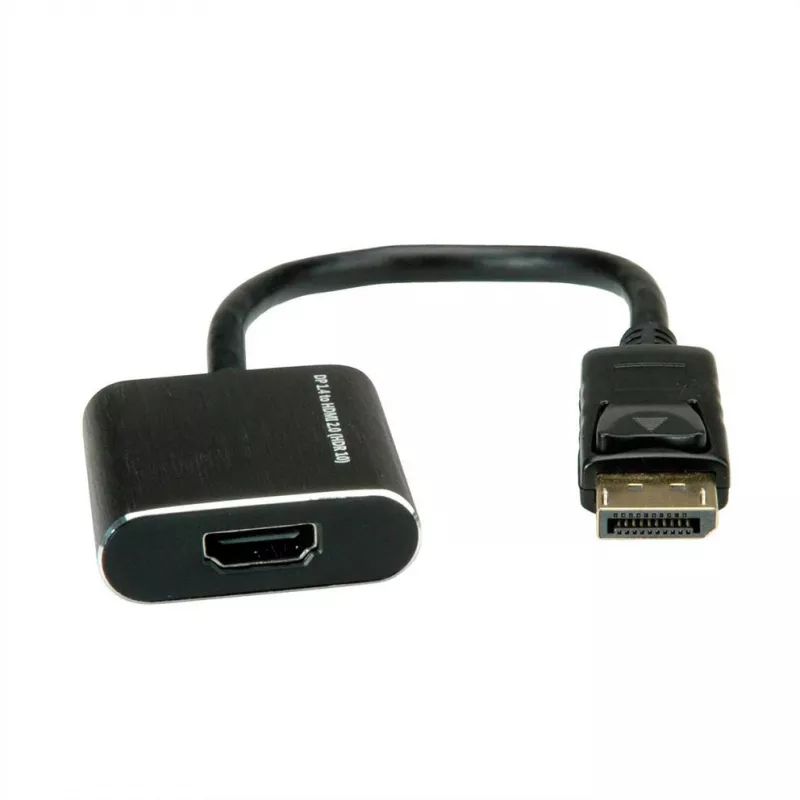

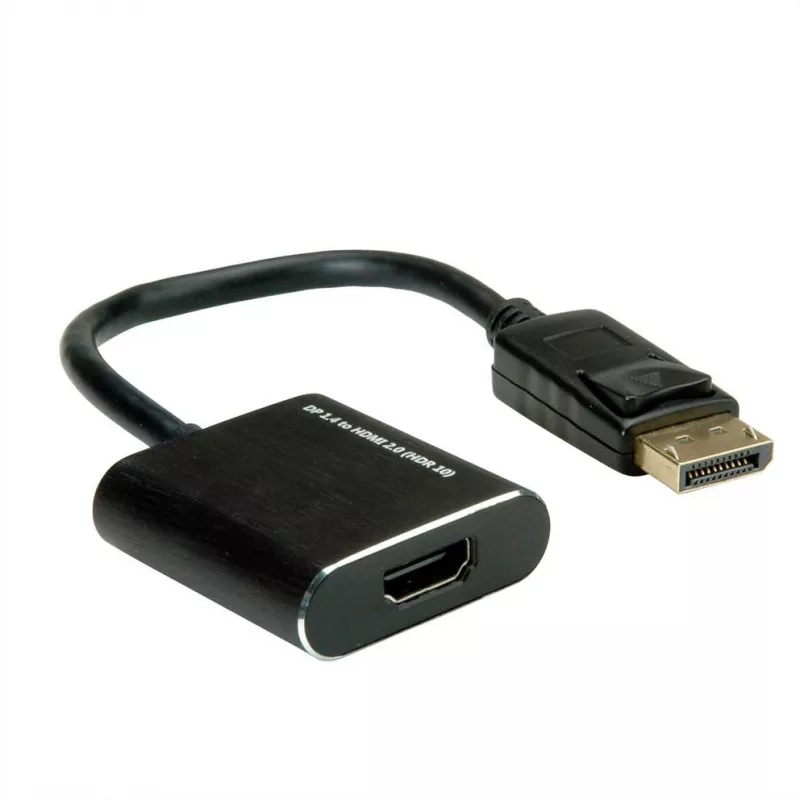

Video Cable Adapter ROLINE 12.03.3164 0.15m DisplayPort to HDMI

The ROLINE 12.03.3164 is a 0.15 m DisplayPort to HDMI adapter designed to connect a graphics card or other DisplayPort source (DisplayPort male) to an HDMI-equipped monitor or display (HDMI female). It supports DisplayPort 1.4 features to enable higher resolutions, refresh rates and color depth, and is compatible with HDR10 for improved dynamic range.

Advantages

This compact adapter provides a simple, passive connection from DisplayPort to HDMI Type A without requiring additional power. With support for DisplayPort 1.4 and a maximum resolution of 3840 x 2160, it enables reliable 4K video transmission. The adapter is lightweight and finished in black for unobtrusive installation.

Suitable for

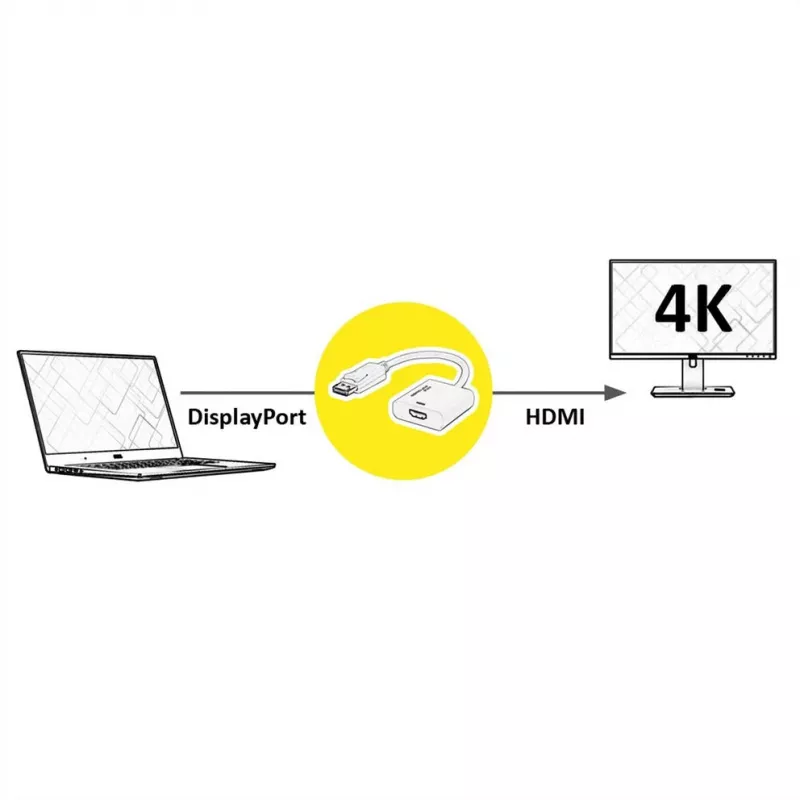

• Connecting a DisplayPort output on a PC or graphics card to an HDMI monitor or TV
• Short-length desktop setups where a compact adapter is required
• Use with displays that support up to 3840 x 2160 resolution and HDR10

Key specifications

• Connectors: DisplayPort male to HDMI female
• DisplayPort version: 1.4
• Maximum resolution: 3840 x 2160
• Length: 0.15 m
• Weight: 0.05 kg
• Colour: Black

How to use

Plug the DisplayPort male connector into the DisplayPort output on your graphics card or source device. Attach an HDMI cable to the adapter's HDMI female connector and connect the other end of the HDMI cable to the monitor or TV. Ensure the monitor input is set to the correct HDMI port. No driver installation is typically required; configure display settings through the operating system or GPU control panel as needed.

Recommendations

For best results, use a high-quality HDMI cable rated for the desired resolution and refresh rate. When using 4K resolutions or HDR10, verify that both the source device and display support those features and that GPU drivers are up to date.
