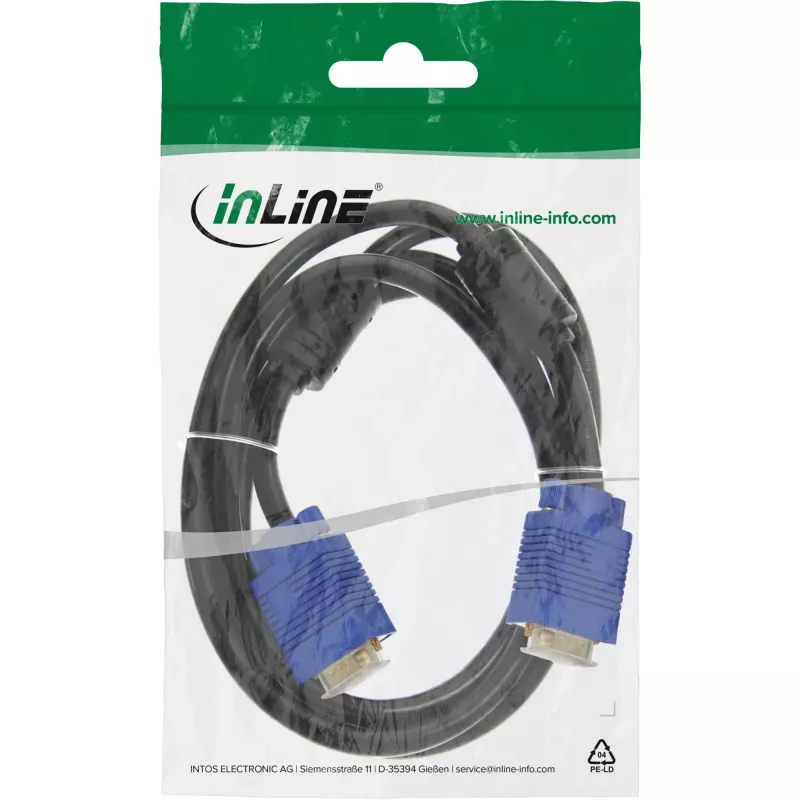

VGA cable InLine 17715T — InLine VGA 17715T, weight 199 g, dimensions H15×W33 mm

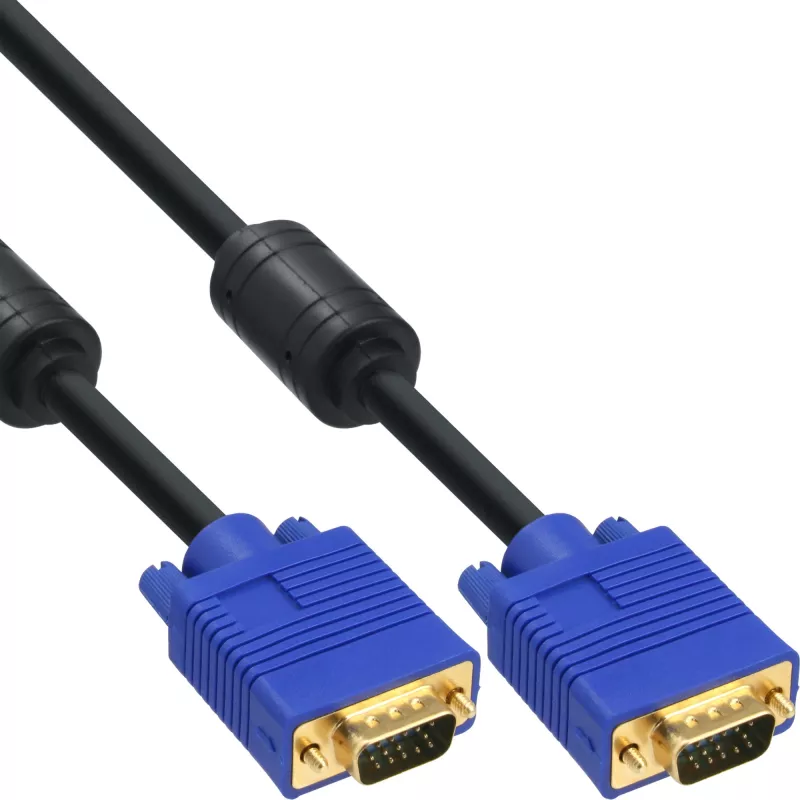

The InLine 17715T VGA cable is designed to transmit analog video signals between PCs, monitors and projectors. This SVGA cable features HD15 male-to-male connectors with gold-plated contacts and a fully populated 3C+7 wiring (pin 9 not connected). The cable body incorporates double shielding — foil plus copper braid — and an integrated ferrite core to reduce electromagnetic interference and preserve image integrity. Physical product data indicates a compact connector size and a lightweight build suitable for standard display and presentation setups.

Advantages

Gold-plated HD15 contacts ensure stable electrical connection and improved corrosion resistance. Double shielding with foil and copper braiding together with copper conductors helps maintain signal quality over analog VGA transmission. The molded blue PC99 connectors provide a secure fit and strain relief at the connector ends. The integrated ferrite suppresses high-frequency noise, improving display clarity in environments with potential interference.

Suitable for

• Connecting desktop PCs to VGA monitors
• Linking laptops or media players to projectors for presentations
• Temporary or permanent installations in classrooms and conference rooms
• Workstations or legacy systems that require analog VGA output

Key specifications

• Connector type: HD15 (VGA) male to male
• Contact plating: gold-plated contacts
• Shielding: double shield (foil + copper braid)
• Wiring: 3C+7 fully connected (pin 9 not connected)
• Ferrite: integrated ferrite core for EMI suppression
• Connector housing: molded blue PC99-style
• Weight: 0.199 kg
• Connector dimensions (approx.): H 15 × W 33 mm

How to use

Ensure both devices support VGA connections and are powered off before connecting. Align the HD15 male connectors with the VGA ports on the source and display devices, then insert and secure the thumbscrews by hand to ensure a stable mechanical connection. Power on the devices and select the appropriate input on the monitor or projector. If image geometry or color requires adjustment, use the display device’s on-screen menu to calibrate resolution, refresh rate and positioning for an optimal analog signal rendering.

Recommendations

For best performance, route the cable away from large power cables and wireless transmitters to minimize interference. Use the molded connector strain relief to avoid sharp bends near the connectors. If extending runs or combining adapters, verify that additional connections maintain shielding and grounding to preserve image quality.
