VGA cable InLine 10825S — InLine VGA cable model 10825S, dimensions 15×15 mm, weight 1.71 kg

12G-SDI support up to 12 Gb/s:Enables the transmission of 4K signals at 60 Hz over a single 75 Ohm coaxial cable and meets the high demands of professional video applications.
Standard 75 Ohm impedance:Ensures stable signal transmission within SDI infrastructures and minimises reflections and signal loss.
Broad SDI compatibility:Supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI for maximum flexibility in existing and new installations.
High-quality shielding:Reduces interference and ensures consistent signal quality even in signal-intensive environments.
Robust BNC connectors with locking mechanism:Provide a secure hold and reliable contact in permanent installations or mobile use.

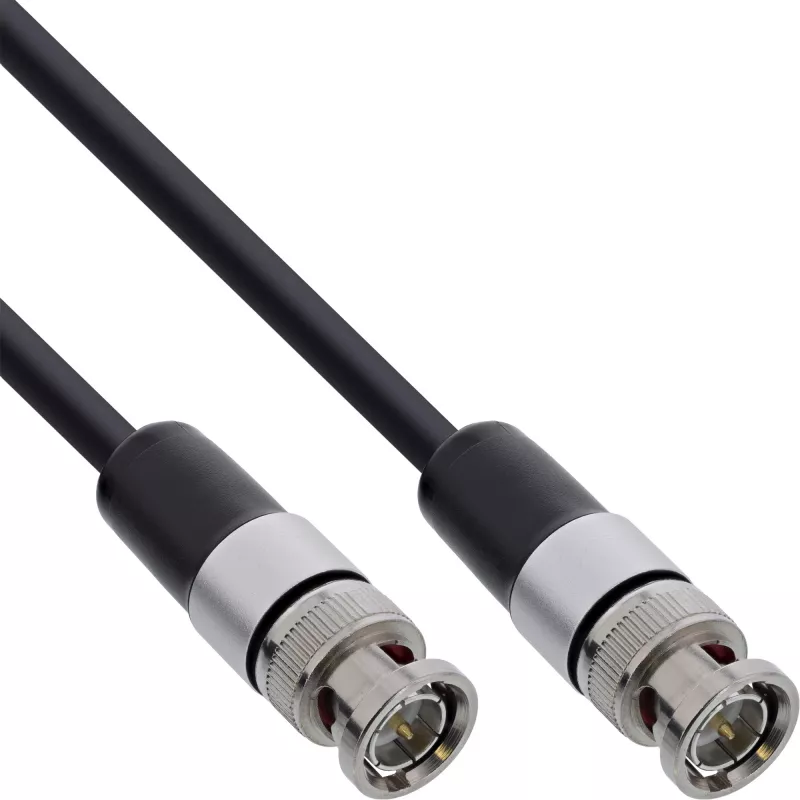

The InLine® BNC video cable with 12G-SDI support is designed for professional video transmissions with high data rates. It enables the transmission of 4K signals at 60 Hz with data rates of up to 12 Gb/s via a single 75 Ohm coaxial connection.
The standard-compliant impedance of 75 ohms ensures stable signal transmission within SDI systems. The high-quality shielding reduces external interference and supports reliable signal quality even in complex installation environments.
The cable supports the SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI standards and can therefore be used flexibly in existing infrastructures. The robust BNC connectors with locking mechanism ensure a secure connection and reliable contact in daily operation.

Connector 1: BNC plug
Connector 2: BNC plug
Impedance: 75 ohms
Supported standards: SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI
Maximum resolution: 4K @ 60Hz

InLine 10825S. Cable length: 25 m, Connector 1: BNC, Connector 2: BNC. Width: 15 mm, Height: 15 mm. Weight: 1.71 kg, Package width: 220 mm, Package depth: 220 mm. Compliance certificates: TÜV mark

How to use

Connect one end of the VGA cable to the VGA output on the source device and the other end to the VGA input on the display device. Ensure connectors are aligned with the port and secure any fastening screws if present to maintain a stable mechanical connection. After connection, select the correct input on the display and adjust resolution and refresh rate on the source device to match the display’s supported settings for optimal image quality.

Recommendations

For best results, route the VGA cable away from large power cables and strong electromagnetic sources to reduce potential interference. When used with older devices, verify the display settings on the source device to ensure compatibility with the target monitor or projector.
