Vertiv Geist VP7G20A3 power distribution unit (PDU) 36 AC outlet(s) 0U Black

Vertiv Geist VP7G20A3 power distribution unit (PDU) 36 AC outlet(s) 0U Black
Vertiv Geist VP7G20A3 power distribution unit (PDU) 36 AC outlet(s) 0U Black
Vertiv Geist VP7G20A3 power distribution unit (PDU) 36 AC outlet(s) 0U Black
Vertiv Geist VP7G20A3 power distribution unit (PDU) 36 AC outlet(s) 0U Black
Vertiv Geist VP7G20A3 power distribution unit (PDU) 36 AC outlet(s) 0U Black
Vertiv Geist VP7G20A3 power distribution unit (PDU) 36 AC outlet(s) 0U Black
Vertiv Geist VP7G20A3 power distribution unit (PDU) 36 AC outlet(s) 0U Black
Vertiv Geist VP7G20A3 power distribution unit (PDU) 36 AC outlet(s) 0U Black
R49,039

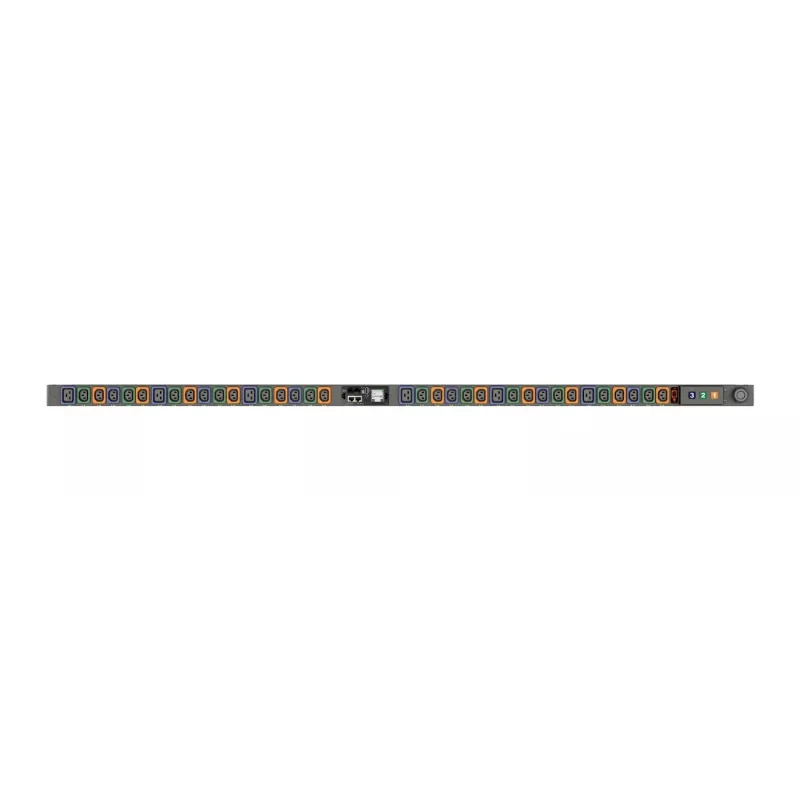

The Vertiv Geist Switched RPDU VP7G20A3 is a 16A, 230V/400V WYE, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (30) U-Lock C13 and (6) U-Lock C19 outlets, a 3P+N+E (IP44) plug, and an 11.0kW of power capacity. This device allows you to remot... Read More
Stock Out Of StockNo Stock Code 2445030 Brand VERTIV Model VP7G20A3 Warranty 2 Years

Shipping & Returns

The Vertiv Geist Switched RPDU VP7G20A3 is a 16A, 230V/400V WYE, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (30) U-Lock C13 and (6) U-Lock C19 outlets, a 3P+N+E (IP44) plug, and an 11.0kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are CE Marked, comply with IEC 60950-1 (CB Certificate Available), RoHS certified, and are individually tested for functionality and reliability.

Vertiv Geist VP7G20A3. PDU types: Monitored, Switched, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 36 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3.05 m. Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog,.... Nominal input voltage: 200-240/346-415 V, Maximum current: 16 A, AC input frequency: 50/60 Hz

Key Highlights
  • Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
  • VP7G20A3 is a 16A, 230V/400V WYE, 0U, vertical rack PDU with 30 U-Lock C13 and 6 U-Lock C19 outlets

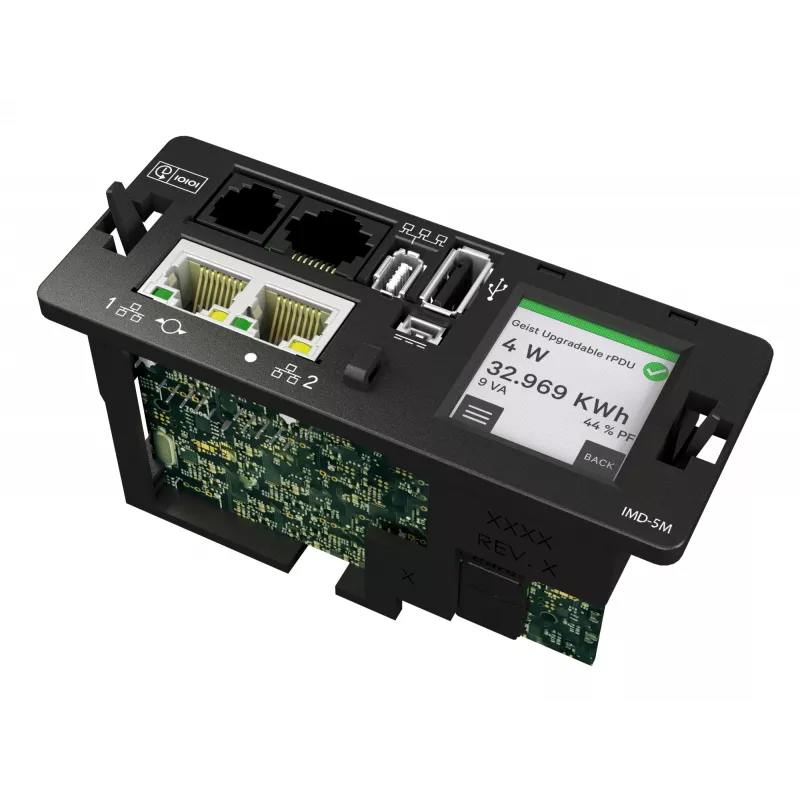

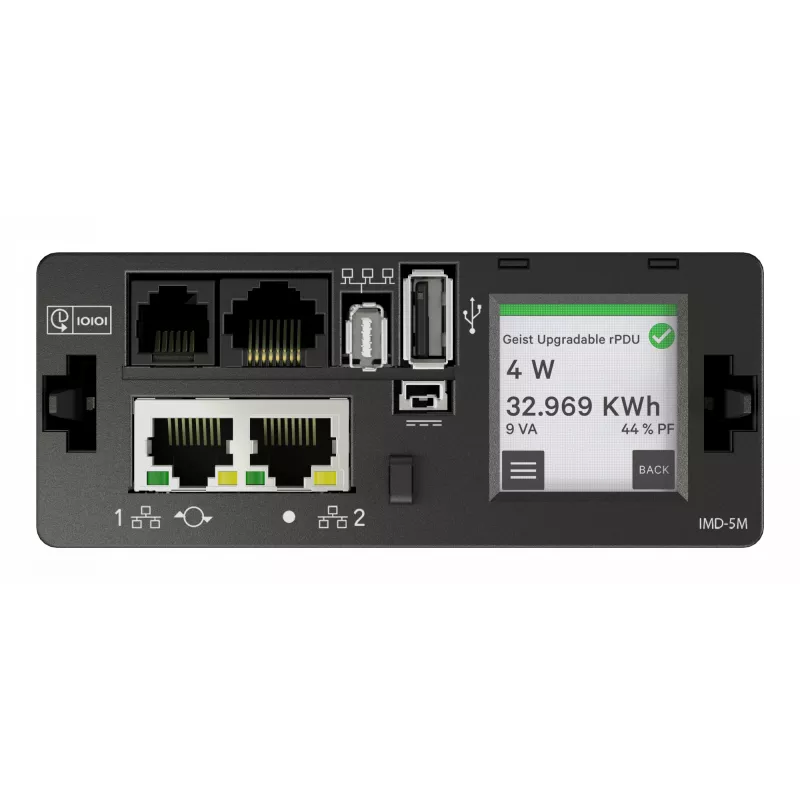

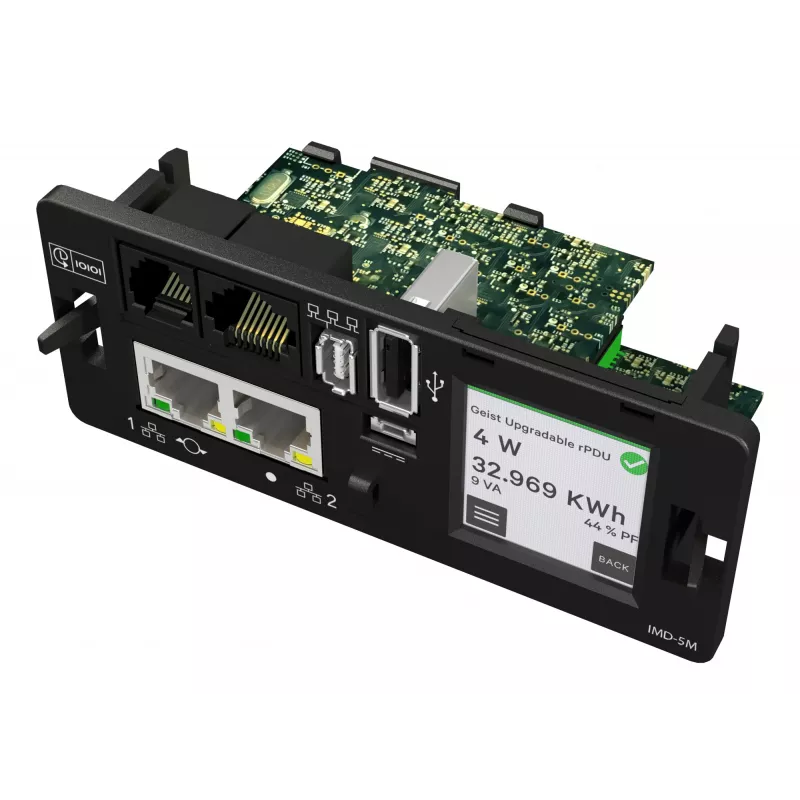

  • Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
  • Helps ensure that data and operations are protected with the enhanced security features
  • Vertiv Geist rPDUs are individually tested, CE Marked, Complies with IEC 60950-1 (CB Certificate Available), and RoHS certified
  • Three-phase Monitored, Switched 0U Black
  • LCD
  • 36 AC outlet(s) C13 coupler, C19 coupler
  • 11000 W
Specifications
AC input frequency
50/60 Hz
AC outlet types
C13 coupler, C19 coupler
AC outlets quantity
36 AC outlet(s)
Cable length
3.05 m
Certification
CE Marked UKCA Marked Complies with IEC 62368-1 (DOC Available) Complies with EN 55032 and EN 55035 RoHS Compliant Cم Mark
Depth
66 mm
Display
LCD
Ethernet LAN (RJ-45) ports
1
Height
1683 mm
Load capacity
230 VA
Maximum current
16 A
Maximum power
11000 W
Mounting
Vertical
Nominal input voltage
200-240/346-415 V
Nominal output voltage
16 V
On/off switch
No
Operating temperature (T-T)
10 - 45 °C
PDU types
Monitored, Switched
Power plug
IEC 60309
Power protection features
Over current
Product colour
Black
Rack capacity
0U
Reset button
Yes
Serial ports quantity
1
Supported network protocols
DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP
Type
Three-phase
USB ports quantity
1
Weight
8.16 kg
Width
51 mm

Leaflet

Open Leaflet

Leaflet

Open Leaflet
