Vertical Lift Wall Mount Ergotron StyleView 61 cm (24 inch)

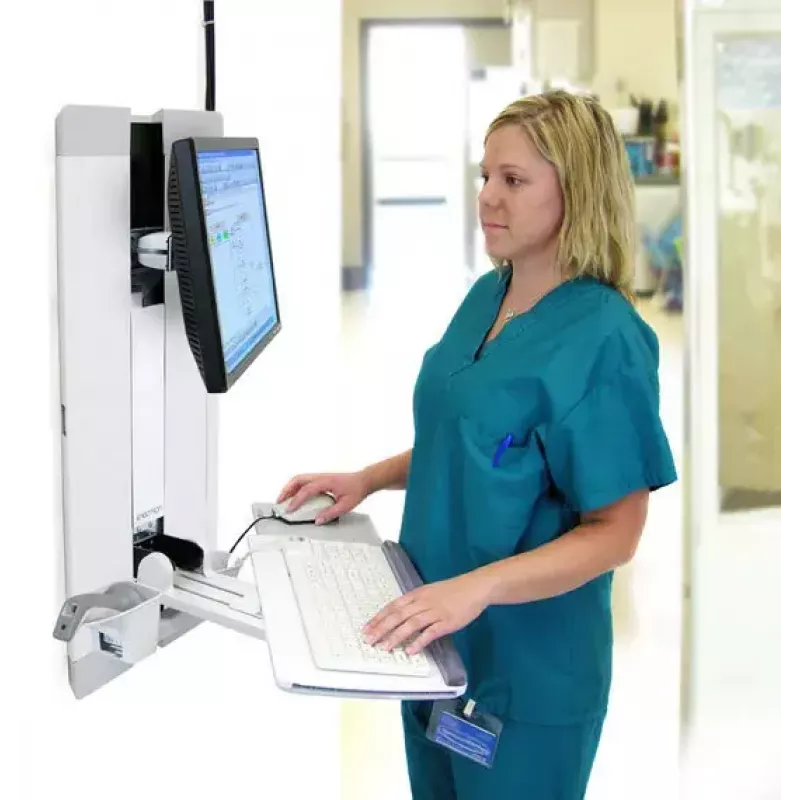

The Ergotron StyleView Vertical Lift is a low-profile wall-mounted workstation designed for patient exam rooms. It supports displays up to 24" (61 cm) with a maximum weight capacity of 15 kg and fits VESA patterns from 75 x 75 mm to 100 x 100 mm. The unit offers a slim folded depth and a clean white finish, providing a compact, durable mounting solution where space is limited.

Advantages

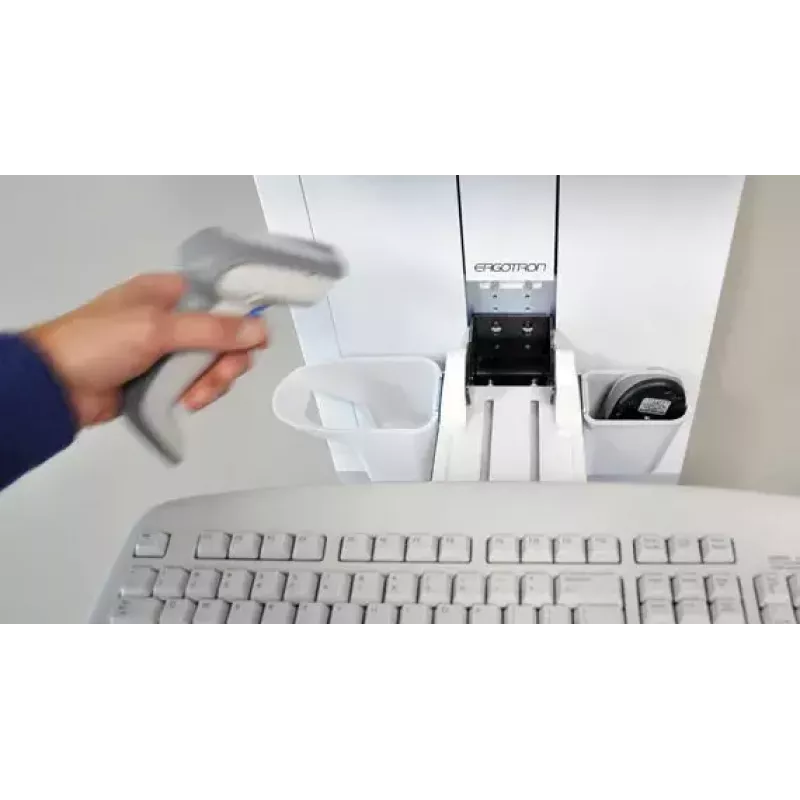

The vertical lift provides 9" (229 mm) of smooth height adjustment with a patented counterbalance system that preserves touch-screen stability. A slide-out, negative-tilt keyboard tray improves ergonomic posture and can extend an additional 5" (125 mm) for comfortable data entry while folding up to reduce system depth to as little as 4.5" (114 mm). The keyboard tray offers back-tilt and left-or-right mouse tray options to keep wrists neutral. Side-to-side pan for both keyboard and display supports patient–caregiver interaction. Steel construction and an integrated right- or left-side cable management system conceal cords and simplify cleaning.

Suitable for

• Patient exam rooms and small clinical spaces
• Bedside charting and point-of-care documentation
• Areas requiring fold-flat, space-saving wall mounts
• Environments needing organized cable routing and easy cleaning

Key specifications

• Maximum screen size: 24" (61 cm)
• Maximum weight capacity: 15 kg
• VESA compatibility: up to 100 x 100 mm (supports 75 x 75 mm)
• Vertical adjustment: 9" (229 mm)
• Keyboard extension: additional 5" (125 mm); folded system depth: from 4.5" (114 mm)
• Tilt range: -10° to 10°
• Product colour: White
• Construction: Steel

How to use

Mount the unit on a suitable wall surface following the manufacturer’s installation instructions and using appropriate anchors for the wall material. Attach the display using the compatible VESA pattern and confirm the screen weight does not exceed 15 kg. Use the counterbalance-assisted vertical lift to raise or lower the screen up to 9" (229 mm). Slide out the keyboard tray and set the negative tilt for comfortable typing; the tray can extend an extra 5" (125 mm) when needed. Pan the keyboard and display side-to-side to improve visibility and interaction with the patient.

Recommendations

For safe and reliable operation, verify wall mounting hardware is rated for the combined weight of the mount and display. Regularly route and secure cables within the integrated cable management to maintain cleanliness and ease of cleaning. Choose left- or right-side mouse tray configuration according to user preference and position the keyboard at a neutral wrist height for prolonged use.
