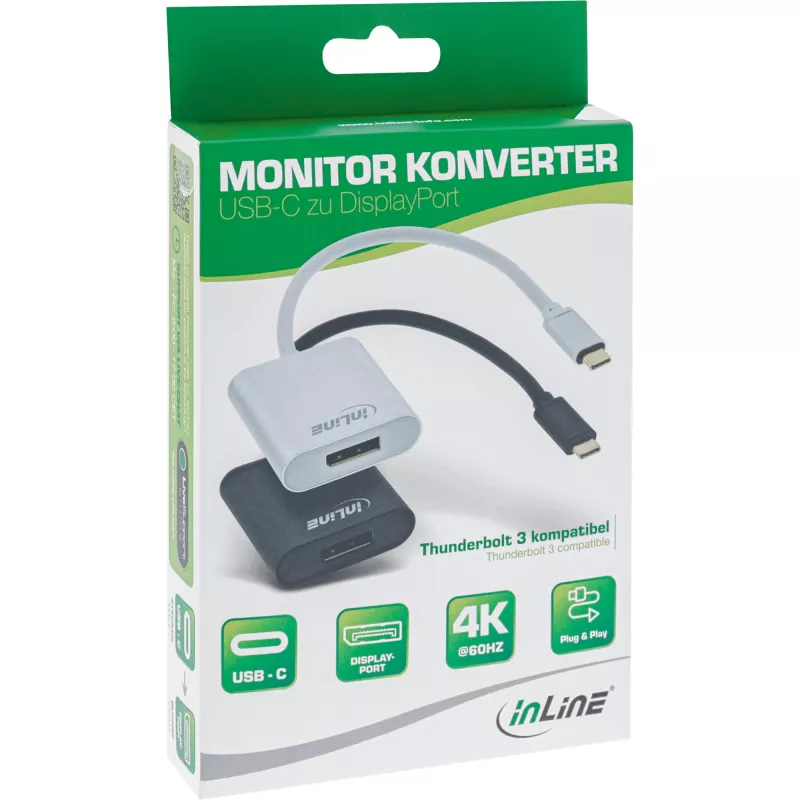

USB Display converter InLine 64102B USB-C male to DisplayPort 4K/60Hz

The InLine USB Display converter (USB-C male to DisplayPort) enables connection of USB Type-C devices that support DisplayPort Alternate Mode to DisplayPort monitors. It transmits both video and audio signals, supports resolutions up to 3840 x 2160 at 60 Hz, and is compatible with Thunderbolt 3 and USB 3.1 devices implementing the VESA DisplayPort 1.2 standard. The cable is 0.2 m long, black, USB powered and requires no external power supply; it provides plug & play operation.

Advantages

The converter supports full 4K@60Hz output with RGB and YCbCr 4:4:4 color formats, ensuring accurate color reproduction and smooth motion. Its USB Type-C plug to DisplayPort socket design offers straightforward connectivity for modern laptops and mobile devices. Native compatibility with Thunderbolt 3 and compliance with DisplayPort 1.2 ensure broad device support and reliable signal transfer without additional drivers.

Suitable for

• Connecting USB-C laptops or tablets with DisplayPort Alternate Mode to DisplayPort monitors
• Using Thunderbolt 3 ports to drive external DisplayPort displays
• Presentations, office work and home multimedia setups requiring up to 4K@60Hz
• Portable setups where a short 0.2 m cable is preferred

Key specifications

• Connector A: USB Type-C (male)
• Connector B: DisplayPort (socket)
• Maximum resolution: 3840 x 2160 @ 60 Hz (RGB and YCbCr 4:4:4)
• Standards: VESA DisplayPort 1.2, USB 3.1 compatible, supports Thunderbolt 3
• Cable length: 0.2 m
• Power: USB powered, no external power supply required
• Color: Black

How to use

Plug the USB Type-C connector into a computer or device that supports DisplayPort Alternate Mode (or into a Thunderbolt 3 port). Connect the DisplayPort plug into the monitor's DisplayPort input. The adapter transmits video and audio automatically; operating systems from Windows 7/8/10 and Mac OS 10.9 and newer detect the display without additional drivers. Ensure the Type-C port carries DisplayPort Alternate Mode — this is often indicated by a DisplayPort logo next to the port.

Recommendations

For best results, use with devices and displays that support DisplayPort 1.2 and set the output resolution and refresh rate to 3840 x 2160 @ 60 Hz in the system display settings. Verify that the USB-C port on the source device supports DisplayPort Alternate Mode or use a Thunderbolt 3 port if available.
